HMMWV Body Assembly Components, Right Hand TM 9-2320-280-24P · Fig. 199

Every part in figure 199 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 77 lines, 54 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

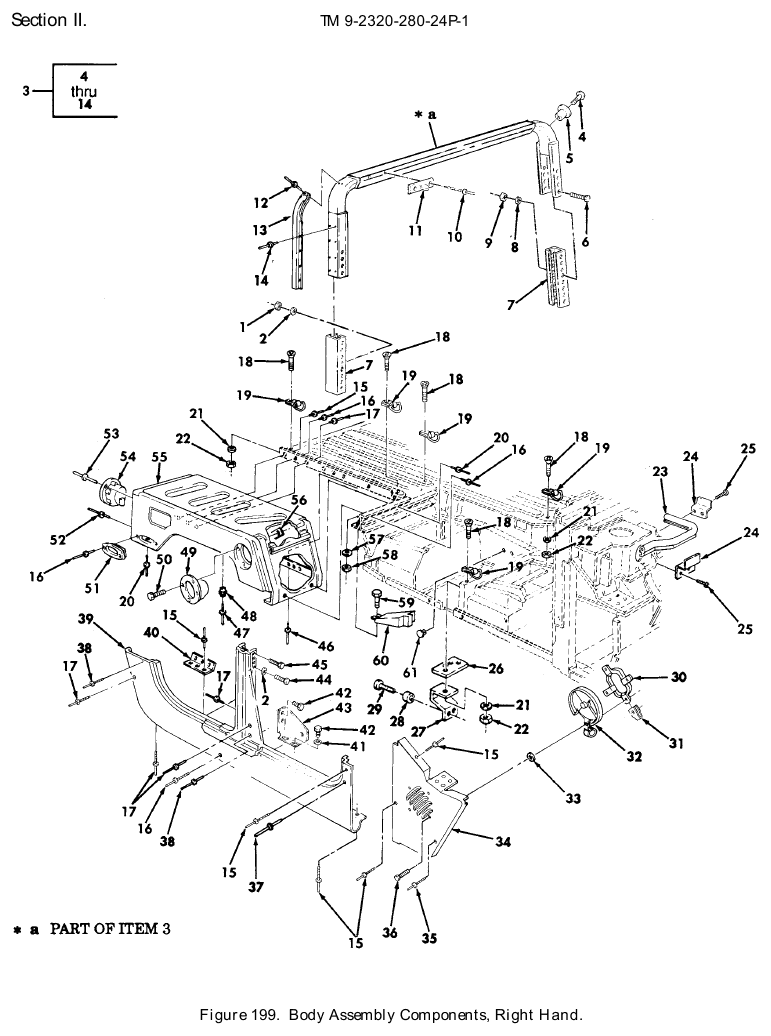

TM 9-2320-280-24P figure 199, Body Assembly Components, Right Hand: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-241-6658 · P/N MS51943-34 NUT,SELF-LOCKING,HE 5/16-24 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	16	904 in stock
2	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	20	1,368 in stock
3	Vehicular Roll Bar NSN 2540-01-335-4482 · P/N 12339196-1 ROLL BAR,VEHICULAR Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	102 in stock $550.00our price Buy online ↗
4	Machine Screw NSN 5305-01-185-8647 · P/N 160057 SCREW,MACHINE #10-32 X 3/4 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	288 in stock
5	Sleeve Nut NSN 5310-00-755-7283 · P/N 12339397-1 NUT,SLEEVE #10-32 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	15 in stock
7	Connector Roll Bar Block NSN 2590-01-247-7910 · P/N 12339194 BLOCK,CONNECTOR,ROL B-PILLAR Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	509 in stock $35–$65 eachtypical
8	Flat Washer NSN 5310-01-308-0131 · P/N 120393 WASHER,FLAT 5/16 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	16	We can source it
9	Self-Locking Hexagon Nut NSN 5310-00-984-3807 · P/N 9419476 NUT,SELF-LOCKING,HE 5/16-24 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	16	2,133 in stock
10	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1-A404 RIVET,BLIND 1/8 DIA Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	46	132 in stock
11	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS B-PILLAR Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	23	22 in stock
12	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND BAR,.062-.270 GRIP Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	16	We can source it
13	Rabbet P/N 12339188 RABBET,”B” ROLL BAR Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	Ask us
14	Blind Rivet NSN 5320-01-264-5978 · P/N MGLP-B6-7 RIVET,BLIND .214-.437 GRIP Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	We can source it
15	Blind Rivet NSN 5320-01-135-7319 · P/N CR3213-6-3 RIVET,BLIND 3/16 DIA Fits: All models	130	72 in stock
16	Blind Rivet NSN 5320-01-086-1143 · P/N CR3213-6-9 RIVET,BLIND 3/16 DIA 000 AND ABOVE Fits: All models	52	14 in stock
17	Blind Rivet NSN 5320-01-136-1782 · P/N CR3213-6-4 RIVET,BLIND 3/16 DIA.,USBL EFF 1 THRU 99,999 Fits: All models	19	50 in stock
18	Cap Socket Head Screw NSN 5305-00-052-2232 · P/N MS24667-77 SCREW,CAP,HEXAGON H 1/2-13 X 1.75 Fits: All A2 models except M1025A2, M1043A2, plus M1123	8	200 in stock
18	Cap Socket Head Screw NSN 5305-00-052-2232 · P/N MS24667-77 SCREW,CAP,SOCKET HE 1/2-13 X 1.75 Fits: M998, M998A1, M1038, M1038A1	8	200 in stock
18	Cap Socket Head Screw NSN 5305-00-052-2232 · P/N MS24667-77 SCREW,CAP,SOCKET HE 1/2-13 X 1.75 Fits: M966, M966A1, M1121	6	200 in stock
18	Cap Socket Head Screw NSN 5305-00-052-2232 · P/N MS24667-77 SCREW,CAP,SOCKET HE 1/2-13 X 1.75 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	9	200 in stock
18	Cap Socket Head Screw NSN 5305-00-052-2232 · P/N MS24667-77 SCREW,CAP,SOCKET HE 1/2-13 X 1.75 Fits: M1025A2, M1043, M1043A1, M1043A2, M1044, M1044A1	7	200 in stock
19	Cargo Vehicle Tie Down NSN 3990-01-432-5370 · P/N 12446987 TIE DOWN,CARGO,VEHI Fits: All A2 models except M1025A2, M1043A2, plus M1123	8	15 in stock $25–$40 eachtypical
19	Cargo Vehicle Tie Down NSN 3990-01-314-8393 · P/N 12342077 TIE DOWN,CARGO,VEHI CARGO TIEDOWN Fits: M998, M998A1, M1038, M1038A1	8	1 in stock
19	Cargo Vehicle Tie Down NSN 3990-01-314-8393 · P/N 12342077 TIE DOWN,CARGO,VEHI CARGO TIEDOWN Fits: M966, M966A1, M1121	6	1 in stock
19	Cargo Vehicle Tie Down NSN 3990-01-314-8393 · P/N 12342077 TIE DOWN,CARGO,VEHI CARGO TIEDOWN Fits: M1025, M1025A1, M1026, M1026A1	9	1 in stock
19	Cargo Vehicle Tie Down NSN 3990-01-314-8393 · P/N 12342077 TIE DOWN,CARGO,VEHI CARGO TIEDOWN Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	7	1 in stock
20	Blind Rivet NSN 5320-01-085-9995 · P/N CR3213-6-7 RIVET,BLIND 3/16 DIA Fits: All models	17	We can source it
21	Flat Washer NSN 5310-00-167-0823 · P/N AN960-816 WASHER,FLAT 1/2 Fits: All A2 models except M1025A2, M1043A2, plus M998, M998A1, M1035, M1038, M1038A1, M1045 and 2 more	8	500 in stock
21	Flat Washer NSN 5310-00-167-0823 · P/N AN960-816 WASHER,FLAT 1/2 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	9	500 in stock
21	Flat Washer NSN 5310-00-167-0823 · P/N AN960-816 WASHER,FLAT 1/2 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1	7	500 in stock
21	Flat Washer NSN 5310-00-167-0823 · P/N AN960-816 WASHER,FLAT 1/2 Fits: M966, M966A1, M1121	6	500 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All A2 models except M1025A2, M1043A2, plus M1123	8	1,713 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: M966, M966A1, M1121	6	1,713 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	9	1,713 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All A2 models except M1025A2, plus M1043, M1043A1, M1044, M1044A1, M1123	7	1,713 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: All A2 models except M1025A2, M1043A2, plus M998, M998A1, M1025, M1026, M1038, M1038A1 and 5 more	8	1,713 in stock
23	Rubber Upper Hood R.h. Cowl Seal P/N 5581213 SEAL,RUBBER UPPER HOOD,R.H. COWL, MAKE FROM SEAL,P/N 1403,17.25 INCHES LONG Fits: All models	1	Ask us
24	Double Angle Bracket NSN 5340-01-207-0379 · P/N 12338814 BRACKET,DOUBLE ANGL INNER,HOOD SEAL Fits: All models	1	We can source it
24	Bracket P/N 12340869 BRACKET,DOUBLE ANGL FRONT SIDE Fits: All models	1	Ask us
25	Tapping Screw NSN 5305-01-254-2460 · P/N 5592840 SCREW,TAPPING,THREA #10-16 X 1/2 Fits: All models	4	We can source it
26	Structural Vehicul Frame Section NSN 2510-01-411-2736 · P/N 12338670 FRAME SECTION,STRUC Fits: All A2 models, plus M1123	3	We can source it $25–$40 eachtypical
27	Structural Vehicul Frame Section NSN 2510-01-410-7169 · P/N 12446988 FRAME SECTION,STRUC Fits: All A2 models, plus M1123	3	We can source it
28	Pin-Rivet Collar NSN 5320-00-205-7917 · P/N NAS1080R08 COLLAR,GROOVED PIN Fits: All A2 models, plus M1123	6	We can source it
29	Grooved Pin-Rivet NSN 5320-01-412-4877 · P/N M23469/2-50809 PIN-RIVET,GROOVED Fits: All A2 models, plus M1123	6	16 in stock
30	Air Duct Retainer NSN 2540-01-192-4500 · P/N 12338849 RETAINER,AIR DUCT OUTSIDE AIR Fits: All models	1	30 in stock $26.99our price Buy online ↗
31	Sheet Spring Nut NSN 5310-01-215-5356 · P/N C8117-1024 NUT,SHEET SPRING #10-24 Fits: All models	4	94,824 in stock
32	Metal Grille NSN 2510-01-192-5947 · P/N 12339222 GRILLE,METAL OUTSIDE AIR Fits: All models	1	We can source it $90–$150 per assemblytypical
33	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: All models	4	909 in stock
34	Vehicular Cowl Panel NSN 2510-01-186-3107 · P/N 12338716 COWL PANEL,VEHICULA OUTER,R.H Fits: All models	1	88 in stock $179.00our price Buy online ↗
35	Blind Rivet NSN 5320-01-143-5075 · P/N CR3213-6-2 RIVET,BLIND 3/16 DIA Fits: All models	5	92 in stock
36	Tapping Screw NSN 5305-01-252-9108 · P/N 5592994 SCREW,TAPPING #10-16 X 7/8 Fits: All models	4	4 in stock
37	Blind Rivet NSN 5320-01-084-6101 · P/N CR3212-6-3 RIVET,BLIND 3/16 DIA Fits: All models	3	12 in stock
38	Blind Rivet NSN 5320-01-084-9235 · P/N CR3213-6-5 RIVET,BLIND 3/16 DIA Fits: All models	7	7 in stock
39	Vehicula R.h. Body Panel NSN 2510-01-185-7958 · P/N 5575503 BODY PANEL,VEHICULA R.H.,USBL EFF 1 THRU 99,999 Fits: All A0 models except M1097, plus M1121	1	We can source it
39	Body Vehicular Panel NSN 2510-01-361-8213 · P/N 12339698-4 PANEL,BODY,VEHICULA R.H.,USBL EFF 100,000 AND ABOVE Fits: All models	1	We can source it $996.13 per eachgov't list price
40	Angle Bracket NSN 5340-01-253-3757 · P/N 5575418 BRACKET,ANGLE SIDE PANEL Fits: All models	1	1 in stock
41	Flat Washer NSN 5310-00-823-8803 · P/N MS27183-21 WASHER,FLAT 1/4 Fits: All models	2	347 in stock
42	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: All models	4	98 in stock
43	Mounting Bracket NSN 5340-01-248-7646 · P/N 12339988-2 BRACKET,MOUNTING R.H Fits: All models	1	13 in stock $25–$60 eachtypical
44	Machine Bolt NSN 5306-00-182-2027 · P/N AN5H10A BOLT,MACHINE 5/16-24 X 1.25 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	360 in stock
45	Machine Bolt NSN 5306-00-182-2025 · P/N AN5H6A BOLT,MACHINE 5/16-24 X 27/32 Fits: All models	12	We can source it
46	Solid Rivet NSN 5320-00-721-9062 · P/N MS20470AD6-10 RIVET,SOLID 3/16 DIA Fits: All models	16	We can source it
47	Pin-Rivet NSN 5320-01-333-5545 · P/N M23469/2-30605 PIN-RIVET,GROOVED FENDER ASSEMBLY Fits: All models	2	We can source it
48	Pin-Rivet Collar NSN 5320-00-864-6203 · P/N 6LC-2R06 COLLAR,GROOVED PIN- .288 O.D.,.189 I.D Fits: All models	2	We can source it
49	Vehicular Components Filler Neck NSN 2590-01-197-5446 · P/N 12339048 FILLER NECK Fits: All models	1	5 in stock $35–$70 eachtypical
50	Tapping Screw NSN 5305-01-264-5874 · P/N 12340792 SCREW,TAPPING #10-12 X .75 Fits: All models	6	We can source it
51	Light Housing NSN 6220-01-200-0897 · P/N 12338709 HOUSING,LIGHT RIGHT SIDE,REAR Fits: All models	1	13 in stock
52	Solid Rivet NSN 5320-00-117-6853 · P/N MS20470AD6-8 RIVET,SOLID 3/16 DIA Fits: All models	18	80 in stock
53	Blind Rivet NSN 5320-01-275-1998 · P/N BAPKTR-64 RIVET,BLIND 3/16 DIA Fits: All models	8	We can source it
54	Light Housing NSN 5342-01-194-3128 · P/N 5575569 BRACKET HOUSING Fits: All models	1	4,009 in stock $23.03our price Buy online ↗
55	Vehicular Fender NSN 2510-01-335-4170 · P/N 12339707-1 FENDER,VEHICULAR RIGHT REAR Fits: All models	1	13 in stock $785.00our price Buy online ↗
56	Sheet Spring Nut NSN 5310-01-194-7066 · P/N C7685-10A NUT,SHEET SPRING Fits: All models	6	We can source it
57	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: All models	1	909 in stock
58	Self-Locking Extended Washer Nut NSN 5310-01-253-0058 · P/N 5592999 NUT,SELF-LOCKING,EX #10-24 Fits: All models	1	We can source it
59	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4 Fits: All models	1	287 in stock
60	Seal Assembly NSN 5330-01-252-5378 · P/N 5581163 SEAL ASSEMBLY RIGHT SIDE FRONT Fits: All models	1	1 in stock $25–$55 per assemblytypical
61	Protective Dust and Moi Cap-Plug NSN 5340-01-203-1980 · P/N 2683 PLUG,PROTECTIVE BODY PANEL Fits: All models	2	521 in stock

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
