HMMWV Body Insulation and Cowl Assemblies TM 9-2320-280-24P · Fig. 200

Every part in figure 200 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 6 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

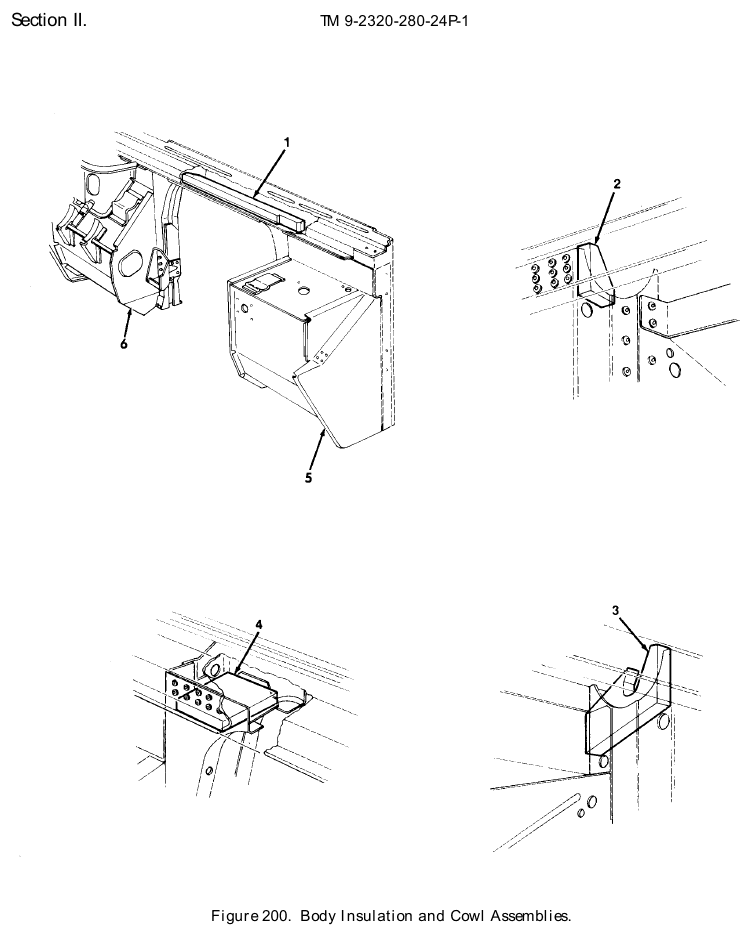

TM 9-2320-280-24P figure 200, Body Insulation and Cowl Assemblies: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Filler Insulation NSN 5640-01-309-3867 · P/N 12341888 INSULATION,FILLER CENTER,USBL EFF 46162 AND ABOVE Fits: All models	1	43 in stock $31.85our price Buy online ↗
2	Panel Insulation NSN 5640-01-309-3868 · P/N 12341889 INSULATION,PANEL USBL EFF 46162 AND ABOVE Fits: All models	1	We can source it
3	Closeout Insulation NSN 5640-01-309-3870 · P/N SF-5597693 INSULATION,CLOSEOUT L.H.,USBL EFF 46162 AND ABOVE Fits: All models	1	We can source it
4	Nozzle Insulation NSN 5640-01-309-3866 · P/N SF-5597692 INSULATION,NOZZLE R.H.,USBL EFF 46162 AND ABOVE Fits: All models	1	We can source it $25–$55 eachtypical
5	L.h. Cowl Assembly NSN 2510-01-262-6008 · P/N 12338736 COWL ASSEMBLY,L.H Fits: All models	1	We can source it $1,274.37 per assemblygov't list price
6	Hood Vehicular Cowl NSN 2510-01-262-6009 · P/N 12338719 COWL ASSEMBLY,R.H Fits: All models	1	22 in stock $606.73 per assemblygov't list price

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
