HMMWV Body Insulation TM 9-2320-280-24P · Fig. 201

Every part in figure 201 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 6 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

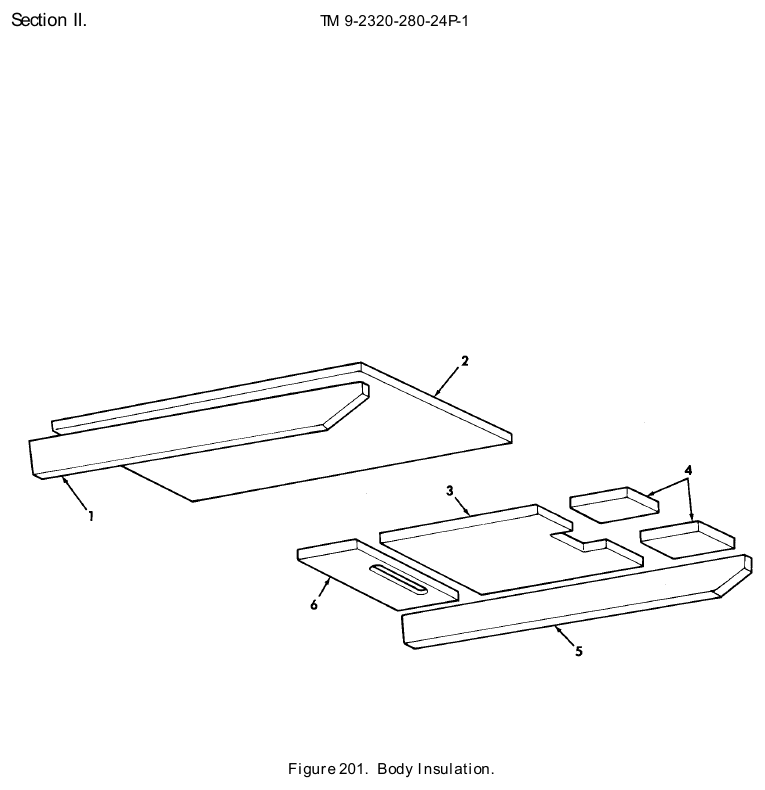

TM 9-2320-280-24P figure 201, Body Insulation: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Insulation P/N 12342312 INSULATION,PANEL R.H. MAKE FROM PAD,P/N CF40BH52 Fits: M996, M996A1	1	Ask us
2	Insulation P/N 12342313 INSULATION,PANEL R.H. MAKE FROM PAD,P/N CF40BH52 Fits: M996, M996A1	1	Ask us
3	Insulation P/N 12342309 INSULATION,PANEL L.H. MAKE FROM PAD,P/N CF40BH52 Fits: M996, M996A1	1	Ask us
4	Insulation P/N 12342310 INSULATION,PANEL L.H. MAKE FROM PAD,P/N CF40BH52 Fits: M996, M996A1	2	Ask us
5	Panel L.h. Insulation P/N 12342311 INSULATION,PANEL L.H.,MAKE FROM PAD,P/N CF40BH52 Fits: M996, M996A1	1	Ask us
6	Panel Rear L.h. Insulation P/N 12342308 INSULATION,PANEL REAR,L.H.,MAKE FROM PAD,P/N CF40BH52 Fits: M996, M996A1	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
