HMMWV Hood Assembly and Mounting Hardware TM 9-2320-280-24P · Fig. 202

Every part in figure 202 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 43 lines, 38 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

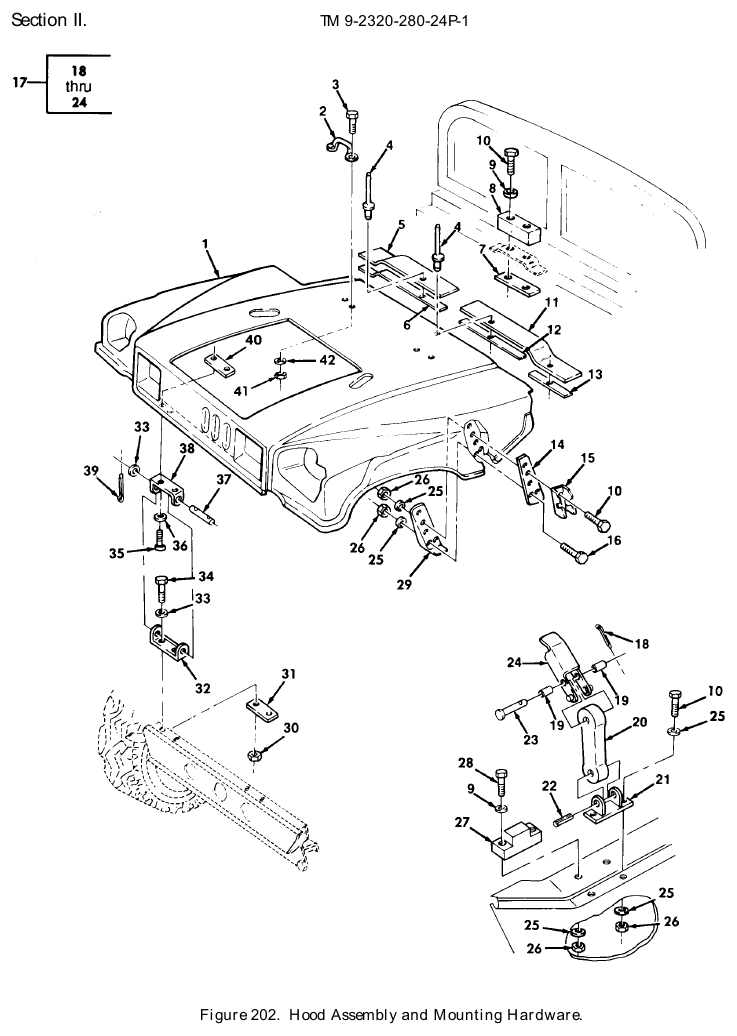

TM 9-2320-280-24P figure 202, Hood Assembly and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Engine Compartment Hood NSN 2510-01-473-2309 · P/N 12338940-1 HOOD,ENGINE COMPART COMES WITH GROMMETS AND WELDNUTS Fits: All models	1	16 in stock $1,886.50our price Buy online ↗
1	Hood NSN 2510-01-173-9347 · P/N 12338940 HOOD,ENGINE COMPART Fits: All models	1	24 in stock
2	Strap Fastener Loop NSN 5340-01-213-5735 · P/N 5591648 LOOP,STRAP FASTENER Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	65 in stock
3	Machine Screw NSN 5305-00-984-6212 · P/N MS35206-265 SCREW,MACHINE #10-24 X 3/4 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	177 in stock
4	Blind Rivet NSN 5320-01-255-6608 · P/N SSLQ-68"Q" RIVET,BLIND 3/16 DIA Fits: All models	15	84 in stock
5	Nonmetallic Strip Seal NSN 5330-01-255-0207 · P/N 5591313 SEAL,NONMETALLIC ST REAR,R.H Fits: All models	1	90 in stock
6	Automotive Trim Bezel NSN 2590-01-261-2636 · P/N 12338904 BEZEL,AUTOMOTIVE TR REAR,R.H Fits: All models	1	33 in stock
7	Mending Plate NSN 5340-01-266-2995 · P/N 5590550 PLATE,MENDING CENTER Fits: All models	1	We can source it $25–$50 eachtypical
8	Bumper NSN 5340-01-186-7658 · P/N 5588172 BUMPER,NONMETALLIC CENTER Fits: All models	1	99 in stock
9	Flat Washer NSN 5310-01-218-3190 · P/N 12339433 WASHER,FLAT 9/32 Fits: All models	6	5 in stock
10	Cap Hexagon Head Screw NSN 5305-00-225-3842 · P/N B1821BH025C113N SCREW,CAP,HEXAGON H 1/4-20 X 1.125 Fits: All models	6	440 in stock
11	Nonmetallic Strip Seal NSN 5330-01-255-0208 · P/N 5591315 SEAL,NONMETALLIC ST REAR,L.H Fits: All models	1	311 in stock
12	Metal Molding NSN 2590-01-261-2637 · P/N 12338907 MOLDING,METAL REAR,L.H Fits: All models	1	29 in stock
13	Metal Molding NSN 2590-01-261-5484 · P/N 12338902 MOLDING,METAL REAR,L.H Fits: All models	1	115 in stock
14	Mending Plate NSN 5340-01-211-3132 · P/N 5584963 PLATE,MENDING Fits: All models	2	1,550 in stock
15	Catch Strike NSN 5340-01-189-9979 · P/N 5588179 STRIKE,CATCH Fits: All models	2	2 in stock
16	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N B1821BH025C088N SCREW,CAP,HEXAGON H 1/4-20 X 7/8 Fits: All models	6	We can source it
17	Hood Vehicular Latch NSN 2540-01-185-9530 · P/N 12338909 LATCH,HOOD,VEHICULA Fits: All models	2	60 in stock $47.91our price Buy online ↗
18	Cotter Pin NSN 5315-00-839-5820 · P/N MS24665-134 PIN,COTTER 1/16 X 3/4 Fits: All models	1	121 in stock
19	Sleeve Spacer NSN 5365-01-212-4736 · P/N 12338886 SPACER,SLEEVE Fits: All models	2	18 in stock
20	Hood Vehicular Latch NSN 2540-01-212-5814 · P/N 12338889 LATCH,HOOD,VEHICULA Fits: All models	1	6 in stock $25–$40 eachtypical
21	Hood Latch Base NSN 2510-01-209-0502 · P/N 12338880 BASE,HOOD LATCH Fits: All models	1	We can source it $25–$40 eachtypical
22	Spring Pin NSN 5315-00-753-3895 · P/N MS16562-256 PIN,SPRING Fits: All models	1	77 in stock
23	Straight Headed Pin NSN 5315-01-213-5545 · P/N 12338894 PIN,STRAIGHT,HEADED Fits: All models	1	11,380 in stock $5.50our price Buy online ↗
24	Hood Vehicular Latch NSN 2540-01-209-4590 · P/N 12338891 LATCH,HOOD,VEHICULA Fits: All models	1	7 in stock $50–$95 per assemblytypical
25	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All models	22	351 in stock
26	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE Fits: All models	18	626 in stock
27	Bumper NSN 5340-01-185-8821 · P/N 5588167 BUMPER,NONMETALLIC Fits: All models	2	114 in stock $34.81our price Buy online ↗
28	Machine Bolt NSN 5306-01-266-8274 · P/N 9419011 BOLT,MACHINE Fits: All models	4	279 in stock
29	Hood Vehicular Bracket NSN 2510-01-185-6715 · P/N 12338905 BRACKET,HOOD VEHICU Fits: All models	2	19 in stock
30	Plain Hexagon Nut NSN 5310-00-896-0903 · P/N MS51967-12 NUT,PLAIN,HEXAGON Fits: All models	4	253 in stock
31	Plate Spacer NSN 5365-01-212-2325 · P/N 12338879 SPACER,PLATE Fits: All models	1	We can source it
32	Butt Hinge Leaf NSN 5340-01-186-1388 · P/N 12338900 LEAF,BUTT HINGE Fits: All models	1	1 in stock $25–$40 eachtypical
33	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16 Fits: All models	12	170 in stock
34	Machine Bolt NSN 5306-01-253-1612 · P/N MS35764-850 BOLT,SELF-LOCKING 7/16-14 X 1.25 Fits: All models	4	92 in stock
35	Cap Hexagon Head Screw NSN 5305-00-782-9489 · P/N B1821BH038C200N SCREW,CAP,HEXAGON H 3/8-16 X 2.00 Fits: All models	4	365 in stock
36	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT 3/8 Fits: All models	4	6 in stock
37	Straight Headless Pin NSN 5315-01-186-5633 · P/N 12338893 PIN,STRAIGHT,HEADLE Fits: All models	2	27 in stock
38	Butt Hinge Leaf NSN 5340-01-186-9496 · P/N 5578522 LEAF,BUTT HINGE Fits: All models	2	6 in stock $75–$130 eachtypical
39	Cotter Pin NSN 5315-00-842-3044 · P/N MS24665-283 PIN,COTTER 3/32 X 3/4 Fits: All models	4	3,000 in stock
40	Nut Strip NSN 5310-01-210-7938 · P/N 5582677 NUT STRIP Fits: All models	2	We can source it $25–$55 eachtypical
41	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N AN365-1024A NUT,SELF-LOCKING,HE #10-24 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	118 in stock
42	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	909 in stock

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
