HMMWV Hood Assembly Grille and Related Parts TM 9-2320-280-24P · Fig. 203

Every part in figure 203 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 32 lines, 26 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

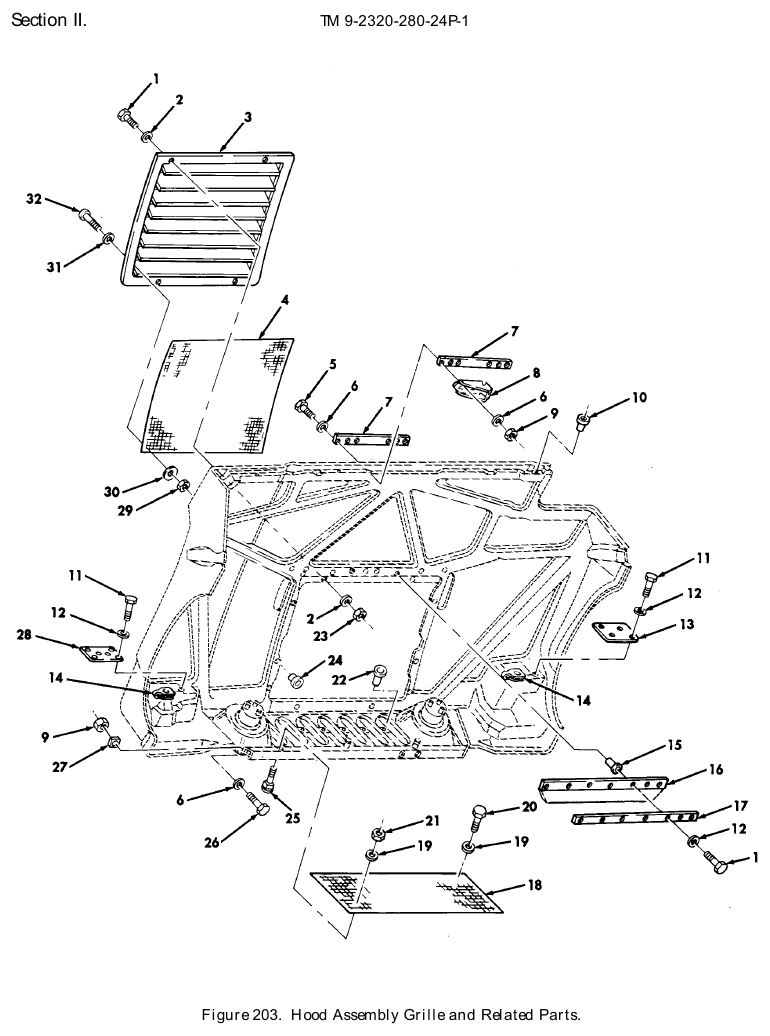

TM 9-2320-280-24P figure 203, Hood Assembly Grille and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	15	559 in stock
2	Flat Washer NSN 5310-00-809-3078 · P/N MS27183-11 WASHER,FLAT 1/4 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	12	52 in stock
3	Radiator Vehicular Grille NSN 2510-01-350-4949 · P/N 12342408 GRILLE,RADIATOR,VEH Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	9 in stock $164.35 per eachgov't list price
4	Grille Top Screen NSN 2510-01-196-5311 · P/N 5578749 SCREEN,GRILLE TOP Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	2 in stock $55–$95 eachtypical
5	Cap Hexagon Head Screw NSN 5305-00-225-3842 · P/N B1821BH025C113N SCREW,CAP,HEXAGON H 1/4-20 X 1.125 Fits: All models	6	440 in stock
6	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All models	14	351 in stock
7	Plate Spacer NSN 5365-01-210-1629 · P/N 12338903 SPACER,PLATE Fits: All models	2	1,095 in stock $25–$60 eachtypical
8	Angle Bracket NSN 5340-01-185-8619 · P/N 12338899 BRACKET,ANGLE Fits: All models	2	We can source it $40–$75 eachtypical
9	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	8	626 in stock
10	Protective Dust and Moi Cap-Plug NSN 5340-01-026-3250 · P/N M5501/7-F2 CAP-PLUG,PROTECTIVE INNER Fits: All models	4	3,784 in stock
11	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	7	471 in stock
12	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All models	16	2,325 in stock
13	Access Cover NSN 5340-01-211-7436 · P/N 12338884 COVER,ACCESS R.H Fits: All models	1	11 in stock
14	Sheet Spring Nut NSN 5310-01-253-6439 · P/N C7740-1420 NUT,SHEET SPRING Fits: All models	7	50 in stock
15	Expansion Shield NSN 5340-01-213-4662 · P/N 12339397-4 SHIELD,EXPANSION 1/4-20 Fits: All models	9	332 in stock
16	Nonmetallic Special Shaped Seal NSN 5330-01-192-8916 · P/N 12338911 SEAL,NONMETALLIC SP CENTER Fits: All models	1	11 in stock $25–$40 eachtypical
17	Mending Plate NSN 5340-01-191-3222 · P/N 12338885 PLATE,MENDING Fits: All models	1	We can source it $25–$40 eachtypical
18	Hood and Grille Guard NSN 2510-01-188-3228 · P/N 5579485 GUARD,HOOD AND GRIL FRONT Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	38 in stock $124.34our price Buy online ↗
19	Flat Washer NSN 5310-01-250-7836 · P/N 5593285 WASHER,FLAT 3/8 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	We can source it
20	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 SCREW,CAP,HEXAGON H 5/16-18 X 1.00 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	3	276 in stock
21	Plain Hexagon Nut NSN 5310-00-931-8167 · P/N MS51967-6 NUT,PLAIN,HEXAGON 5/16-18 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	3	We can source it
22	Plain Blind Rivet Nut NSN 5310-01-312-4777 · P/N 12339397-5 NUT,PLAIN,BLIND RIV 5/16-18 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	3	We can source it
23	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	626 in stock
24	Protective Dust and Moi Cap-Plug NSN 5340-01-255-1657 · P/N W-5 CAP-PLUG,PROTECTIVE Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	24 in stock
25	Square Neck Bolt NSN 5306-01-286-7182 · P/N 5588062 BOLT,SQUARE NECK 5/16-18 X 1.80 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	3	9 in stock
26	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: All models	2	559 in stock
27	Plate Spacer NSN 5365-01-210-1630 · P/N 12338892 SPACER,PLATE Fits: All models	2	We can source it
28	Access Cover NSN 5340-01-209-7834 · P/N 12338906 COVER,ACCESS L.H Fits: All models	1	4 in stock
29	Self-Locking Hexagon Nut NSN 5310-01-269-9245 · P/N 190254 NUT,SELF-LOCKING,HE Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	88 in stock
30	Flat Washer NSN 5310-01-217-5205 · P/N 9417714 WASHER,FLAT #10 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	494 in stock
31	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	909 in stock
32	Machine Screw NSN 5305-00-984-6213 · P/N MS35206-266 SCREW,MACHINE #10-24 X 7/8 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	2,900 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
