HMMWV Hood Assembly Ballistic Grilles and Related Parts TM 9-2320-280-24P · Fig. 204

Every part in figure 204 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 20 lines, 18 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

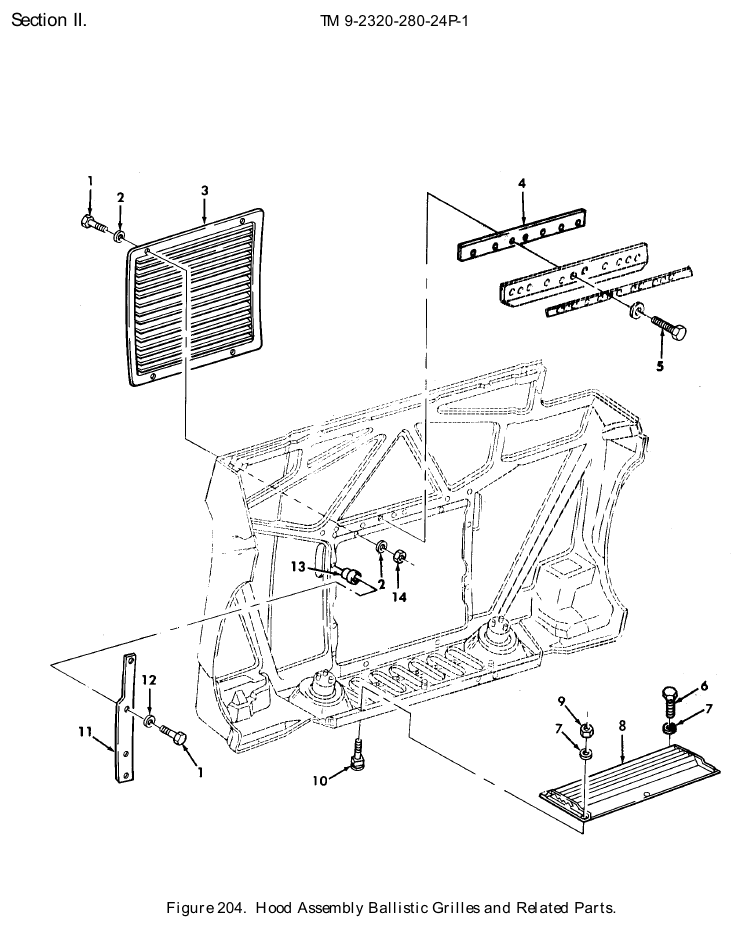

TM 9-2320-280-24P figure 204, Hood Assembly Ballistic Grilles and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	4	559 in stock
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	8	351 in stock
3	Metal Grille NSN 2510-01-190-8458 · P/N 12338921 GRILLE,METAL BASIC ARMOR Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	1	37 in stock quote only $986.31 per eachgov't list price
3	Metal Grille NSN 2510-01-189-9730 · P/N 12338926 GRILLE,METAL HOOD,SUPPLEMENTAL ARMOR Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	2 in stock $689.96 per eachgov't list price
4	Plate Spacer NSN 5365-01-185-3108 · P/N 12338920-1 SPACER,PLATE CENTER,BASIC ARMOR Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	4	7 in stock $35–$70 eachtypical
4	Plate Spacer NSN 5365-01-189-9743 · P/N 12338920-2 SPACER,PLATE CENTER,SUPPLEMENTAL ARMOR Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	4 in stock $95–$155 eachtypical
5	Cap Hexagon Head Screw NSN 5305-00-225-3842 · P/N B1821BH025C113N SCREW,CAP,HEXAGON H 1/4-20 X 1.125 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	9	440 in stock
6	Machine Bolt NSN 5306-00-226-4827 · P/N B1821BH031C100N BOLT,MACHINE 5/16-18 X 1.00 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	3	292 in stock
7	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 3/8 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	6	1,368 in stock
8	Metal Grille NSN 2510-01-186-3311 · P/N 12338937 GRILLE,METAL FRONT,BASIC ARMOR Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	1	28 in stock $259.69our price Buy online ↗
8	Radiator Vehicular Grille NSN 2510-01-191-0971 · P/N 12338936 GRILLE,RADIATOR,VEH FRONT, SUPPLEMENTAL ARMOR Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	1 in stock $290.68 per eachgov't list price
9	Plain Hexagon Nut NSN 5310-00-931-8167 · P/N MS51967-6 NUT,PLAIN,HEXAGON 5/16-18 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	3	We can source it
10	Square Neck Bolt NSN 5306-01-286-7182 · P/N 5588062 BOLT,SQUARE NECK 5/16-18 X 1.8 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	3	9 in stock
11	Hood Vehicular Shield NSN 2510-01-185-7945 · P/N 12338925-2 SHIELD,HOOD,VEHICUL R.H Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	1	7 in stock quote only $60–$105 eachtypical
11	Hood Vehicular Shield NSN 2510-01-185-7950 · P/N 12338925-1 SHIELD,HOOD,VEHICUL L.H Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	1	12 in stock quote only $60–$105 eachtypical
11	Supplemental Small Arms-FR Armor NSN 2540-01-189-9729 · P/N 5579717 ARMOR,SUPPLEMENTAL, HOOD,R.H., SUPPLEMENTAL ARMOR Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	We can source it quote only $55–$90 eachtypical
11	Ballistic Hood Shield NSN 2510-01-189-9720 · P/N 5579716 SHIELD,BALLISTIC HO HOOD,L.H., SUPPLEMENTAL ARMOR Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	7 in stock quote only $100–$165 eachtypical
12	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	6	2,325 in stock
13	Expansion Shield NSN 5340-01-213-4662 · P/N 5591957 SHIELD,EXPANSION Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	6	332 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	4	626 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
