HMMWV Left Hand Splash Shield, Radiator Side Armor, and Hood Prop Rod TM 9-2320-280-24P · Fig. 205

Every part in figure 205 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 43 lines, 32 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

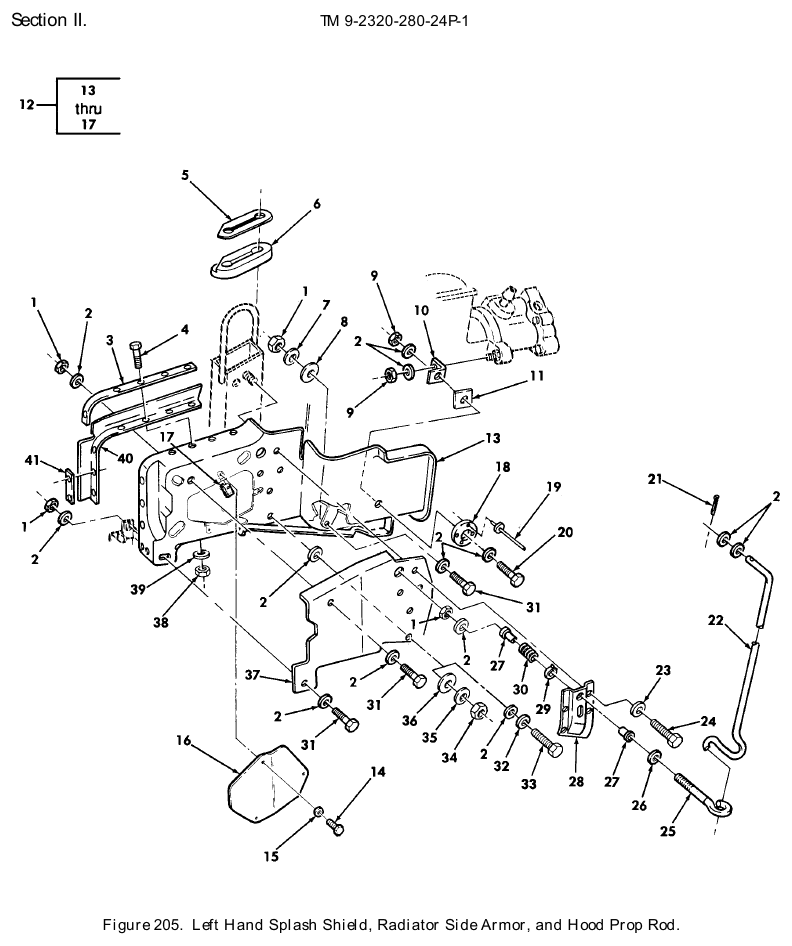

TM 9-2320-280-24P figure 205, Left Hand Splash Shield, Radiator Side Armor, and Hood Prop Rod: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	4	354 in stock
2	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	13	We can source it
2	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: All A2 models, plus M1123	11	We can source it
3	Retaining Strap NSN 5340-01-185-0386 · P/N 12338630 STRAP,RETAINING UPPER Fits: All models	1	We can source it
4	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4 Fits: All models	7	287 in stock
5	Gasket NSN 5330-01-334-2834 · P/N 12342355 GASKET Fits: All models	1	227 in stock $6.60our price Buy online ↗
6	Nonmetallic Special Shaped Seal NSN 5330-01-340-5627 · P/N 12342357 SEAL,NONMETALLIC SP L.H Fits: All models	1	9 in stock $65–$110 eachtypical
7	Flat Washer NSN 5310-01-257-7719 · P/N 5593235 WASHER,FLAT 5/16 Fits: All models	1	95 in stock
8	Flat Washer NSN 5310-01-253-0060 · P/N 5593261 WASHER,FLAT 3/8 Fits: All models	1	We can source it
9	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: All models	2	219 in stock
10	Angle Bracket NSN 5340-01-220-3084 · P/N 12338629 BRACKET,ANGLE Fits: All models	1	6 in stock
11	Plate Spacer NSN 5365-01-252-9214 · P/N 5591577-B SPACER,PLATE Fits: All models	1	We can source it
12	Splash Vehicular Guard NSN 2540-01-176-6521 · P/N 12446953 GUARD,SPLASH,VEHICU L.H Fits: All models	1	44 in stock $99.99our price Buy online ↗
13	Splash Guard P/N 12446771 GUARD,SPLASH,VEHICU Fits: All models	1	Ask us
14	Machine Screw NSN 5305-00-115-9934 · P/N MS51849-55 SCREW,MACHINE #8-32 X 5/8 Fits: All models	3	5,975 in stock
15	Flat Washer NSN 5310-01-213-4192 · P/N 9423534 WASHER,FLAT #8 Fits: All models	3	98 in stock
16	Access Cover NSN 5340-01-457-0459 · P/N 12446770 COVER,ACCESS Fits: All models	1	6 in stock $25–$55 eachtypical
17	Assembled Retainer P/N 1494255 RETAINER,ASSEMBLED #8-32 Fits: All models	3	Ask us
18	B Support Assembly NSN 5365-01-246-8281 · P/N 12338637 SUPPORT ASSEMBLY,B Fits: All models	1	3 in stock $20.58our price Buy online ↗
19	Blind Rivet NSN 5320-01-033-8643 · P/N CR3242-6-2 RIVET,BLIND 3/16 DIA Fits: All models	4	We can source it
20	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: All models	1	1,373 in stock
21	Cotter Pin NSN 5315-00-842-3044 · P/N X601 PIN,COTTER 3/32 X 3/4 Fits: All models	1	3,000 in stock
22	Hood Vehicular Rod NSN 2510-01-185-6118 · P/N 12338915 ROD,HOOD,VEHICULAR Fits: All models	1	84 in stock $48.89our price Buy online ↗
23	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: All models	4	4,285 in stock
24	Tapping Screw NSN 5305-00-550-1537 · P/N 5593225 SCREW,TAPPING 1/4-28 X 1.00 Fits: All models	4	1 in stock
25	Eye Bolt NSN 5306-01-186-7129 · P/N 5578418 BOLT,EYE Fits: All models	1	42 in stock
26	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: All models	1	471 in stock
27	Sleeve Bushing NSN 3120-01-186-7715 · P/N 12338895 BUSHING,SLEEVE Fits: All models	2	49 in stock
28	Retaining Strap NSN 5340-01-186-7229 · P/N 5578414 STRAP,RETAINING Fits: All models	1	1 in stock $30–$65 eachtypical
29	Retaining Ring NSN 5325-00-282-1830 · P/N MS16624-1066 RING,RETAINING Fits: All models	1	2 in stock
30	Helical Compression Spring NSN 5360-01-255-9899 · P/N C0850-081-2250-M SPRING,HELICAL,COMP Fits: All models	1	1,100 in stock
31	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 Fits: All models	3	276 in stock
32	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: All A1 models; all A2 models except M1097A2, plus M966, M996, M997, M998, M1025, M1026 and 5 more	1	2,036 in stock
33	Tapping Screw NSN 5305-01-253-2993 · P/N 5593258 SCREW,TAPPING 5/16-18 X 1.00 Fits: All A1 models; all A2 models except M1097A2, plus M966, M996, M997, M998, M1025, M1026 and 5 more	1	10 in stock
34	Plain Hexagon Nut NSN 5310-00-761-0654 · P/N MS51967-9 NUT,PLAIN,HEXAGON 3/8-16 Fits: All A2 models, plus M1123	2	12 in stock
35	Lock Washer NSN 5310-00-637-9541 · P/N MS35338-46 WASHER,LOCK 3/8 Fits: All A2 models, plus M1123	2	1,162 in stock
36	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: All A2 models, plus M1123	2	We can source it
37	Radiator Vehicular Shield NSN 2510-01-185-3107 · P/N 5578547 SHIELD,RADIATOR,VEH BASIC, L.H Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	1	20 in stock $183.72 per eachgov't list price
37	Supplemental Small Arms-FR Armor NSN 2540-01-189-9728 · P/N 12338640-2 ARMOR PLATE SUPPLEMENTAL, L.H Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	We can source it quote only $109.23 per eachgov't list price
38	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N AN365-1024A NUT,SELF-LOCKING,HE #10-24 Fits: All models	7	118 in stock
39	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: All models	7	909 in stock
40	Nonmetallic Special Shaped Seal NSN 5330-01-185-8715 · P/N 5593910 SEAL,NONMETALLIC SP L.H Fits: All models	1	7 in stock $29.39our price Buy online ↗
41	Mending Plate NSN 5340-01-186-5520 · P/N 12338634-1 PLATE,MENDING LOWER Fits: All models	1	We can source it

Buy the 5 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
