HMMWV Right Hand Splash Shield and Radiator Side Armor TM 9-2320-280-24P · Fig. 206

Every part in figure 206 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 30 lines, 21 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

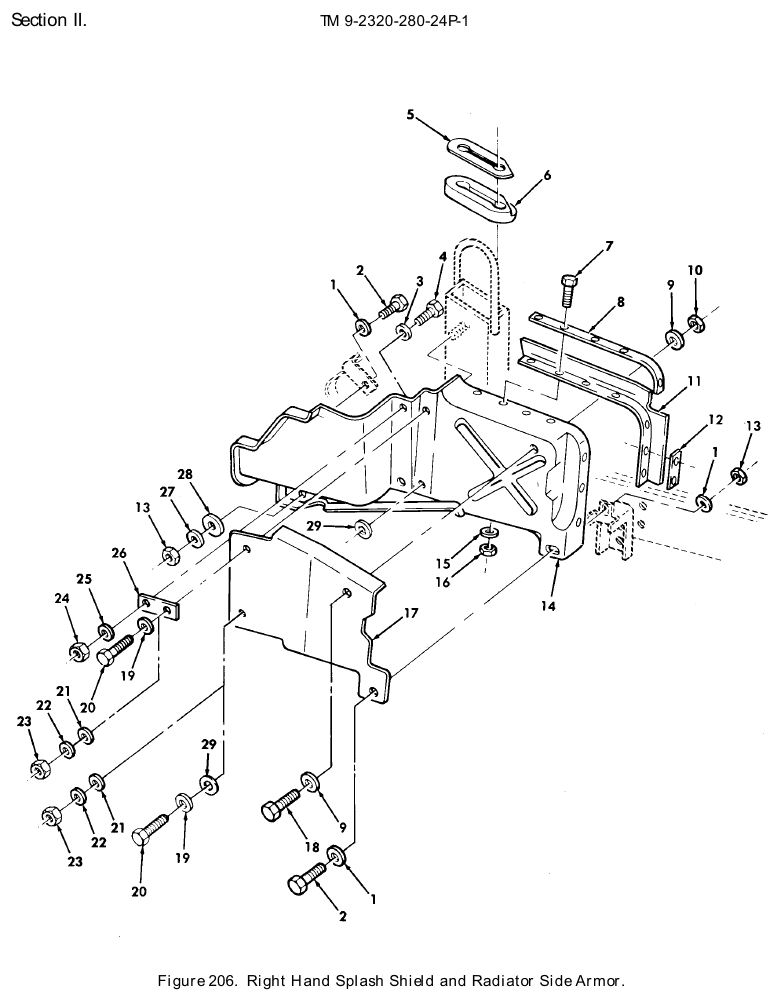

TM 9-2320-280-24P figure 206, Right Hand Splash Shield and Radiator Side Armor: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: All models	3	We can source it
2	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 Fits: All models	2	276 in stock
3	Flat Washer NSN 5310-00-809-3078 · P/N MS27183-11 WASHER,FLAT 1/4 Fits: All models	1	52 in stock
4	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	1	471 in stock
5	Gasket NSN 5330-01-334-2834 · P/N 12342355 GASKET Fits: All models	1	227 in stock $6.60our price Buy online ↗
6	Nonmetallic Special Shaped Seal NSN 5330-01-341-8963 · P/N 12342358 SEAL,NONMETALLIC SP R.H Fits: All models	1	19 in stock $95–$160 eachtypical
7	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4 Fits: All models	7	287 in stock
8	Retaining Strap NSN 5340-01-185-0386 · P/N 12338630 STRAP,RETAINING Fits: All models	1	We can source it
9	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	2	We can source it
10	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	1	354 in stock
11	Nonmetallic Special Shaped Seal NSN 5330-01-185-8714 · P/N 5593912 SEAL,NONMETALLIC SP R.H Fits: All models	1	88 in stock $29.39our price Buy online ↗
12	Seal Retainer NSN 5330-01-191-3359 · P/N 5582605 CLAMP,LOOP Fits: All models	1	We can source it
13	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: All models	2	354 in stock
14	Splash Vehicular Guard NSN 2540-01-174-7696 · P/N 12340360 GUARD,SPLASH,VEHICU R.H Fits: All models	1	8 in stock $45–$85 eachtypical
15	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: All models	7	909 in stock
16	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N AN365-1024A NUT,SELF-LOCKING,HE #10-24 Fits: All models	7	118 in stock
17	Radiator Vehicular Shield NSN 2510-01-185-7946 · P/N 12338639-1 SHIELD,RADIATOR,VEH BASIC,R.H Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	1	1 in stock $208.63 per eachgov't list price
17	Armor Radiator Plate NSN 2510-01-189-9744 · P/N 5578551 PLATE,ARMOR,RADIATO SUPPLEMENTAL, R.H Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	We can source it quote only $122.87 per eachgov't list price
18	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	1	276 in stock
19	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: All A0 and A1 models, plus M1121	2	2,036 in stock
20	Tapping Screw NSN 5305-01-253-2993 · P/N 5593258 SCREW,TAPPING 5/16-18 X 1.00 Fits: All A0 and A1 models, plus M1121	2	10 in stock
21	Flat Washer NSN 5310-00-087-7493 · P/N 5-11-966-41 WASHER,FLAT 3/8 Fits: All A2 models, plus M1123	2	We can source it
22	Lock Washer NSN 5310-00-637-9541 · P/N P49866-11 WASHER,LOCK Fits: All A2 models, plus M1123	2	1,162 in stock
23	Plain Hexagon Nut NSN 5310-00-761-0654 · P/N MS51967-9 NUT,PLAIN,HEXAGON 3/8-16 Fits: All A2 models, plus M1123	2	12 in stock
24	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	1	626 in stock
25	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: All models	1	2,325 in stock
26	Plate Spacer NSN 5365-01-210-1584 · P/N 12338635 SPACER,SLEEVE Fits: All models	1	We can source it
27	Flat Washer NSN 5310-01-257-7719 · P/N 5593235 WASHER,FLAT 5/16 Fits: All models	1	95 in stock
28	Flat Washer NSN 5310-01-253-0060 · P/N 5593261 WASHER,FLAT 3/8 Fits: All models	1	We can source it
29	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: All A2 models except M1035A2, M1097A2, plus M966, M966A1, M996, M996A1, M997, M997A1 and 13 more	2	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
