HMMWV Rear Fixed Doors and Mounting Hardware TM 9-2320-280-24P · Fig. 207

Every part in figure 207 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 12 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

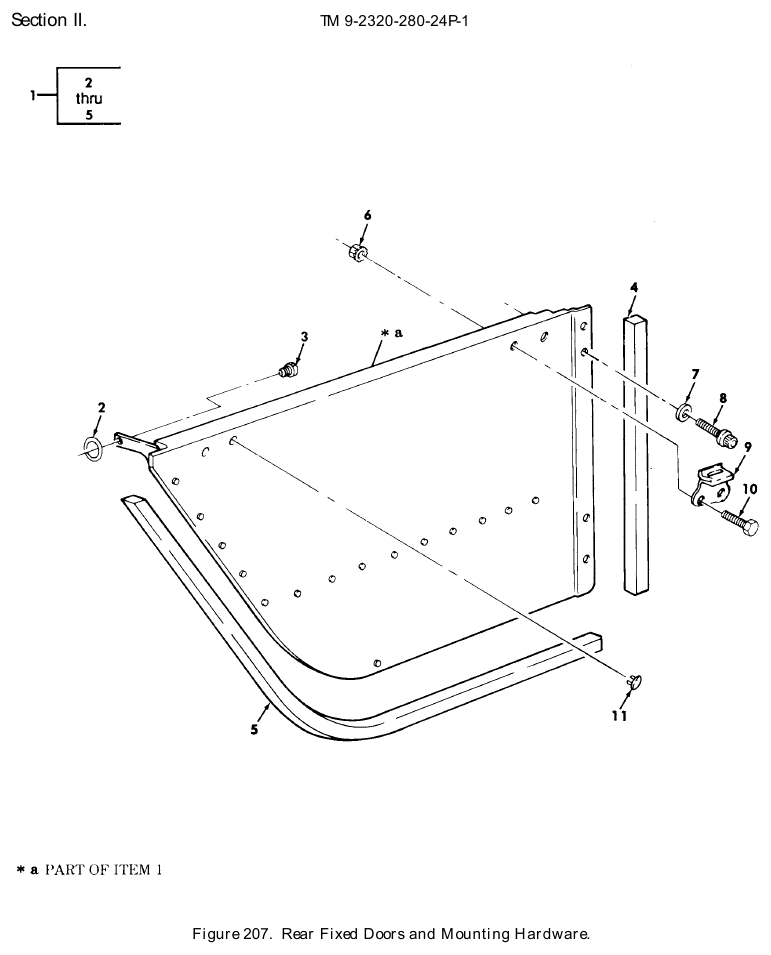

TM 9-2320-280-24P figure 207, Rear Fixed Doors and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Door NSN 2510-01-193-1807 · P/N 12340028-5 DOOR,METAL,SWINGING L.H Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	15 in stock quote only $564.25 per assemblygov't list price
1	Vehicular Door NSN 2510-01-189-9717 · P/N 12340028-2L DOOR,METAL,SWINGING R.H Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	57 in stock $564.55 per assemblygov't list price
2	Turnlock Fastener Eyelet NSN 5325-01-266-8414 · P/N GH7 EYELET,TURNLOCK FAS Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	2 in stock
3	Turnlock Fastener Stud NSN 5325-01-264-1522 · P/N AJ7-40-CBC STUD,TURNLOCK FASTE Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	We can source it
4	Seal Make From Gasket P/N 5584836 SEAL MAKE FROM GASKET,P/N R-451-N, 22 INCHES LONG Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	Ask us
5	Seal Make From Gasket P/N 5584813 SEAL MAKE FROM GASKET,P/N R-451-N, 50 INCHES LONG Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	1	Ask us
6	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: M998, M998A1, M1038, M1038A1	8	474 in stock
7	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	8	2,325 in stock
8	Machine Bolt NSN 5306-01-323-5535 · P/N 12340352-1 BOLT,MACHINE 1/4-20 X 3/4 Fits: M998, M998A1, M1037, M1038, M1038A1, M1042 and 4 more	8	1,653 in stock
9	Strap Fastener Loop NSN 5340-01-260-9027 · P/N 5593625 LOOP,STRAP FASTENER Fits: M998, M998A1, M1038, M1038A1	4	235 in stock $9.79our price Buy online ↗
10	Machine Screw NSN 5305-00-989-7435 · P/N MS35207-264 SCREW,MACHINE #10-32 X .62 Fits: M998, M998A1, M1038, M1038A1	8	We can source it
11	Fastener NSN 5325-00-185-0961 · P/N 12340533-3 FASTENER Fits: M1037, M1042, M1097, M1097A1, M1097A2, M1123	8	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
