HMMWV Engine Access Cover Assembly, “A” Pillar Insulation, and Steering Wheel Lock TM 9-2320-280-24P · Fig. 208

Every part in figure 208 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 41 lines, 24 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

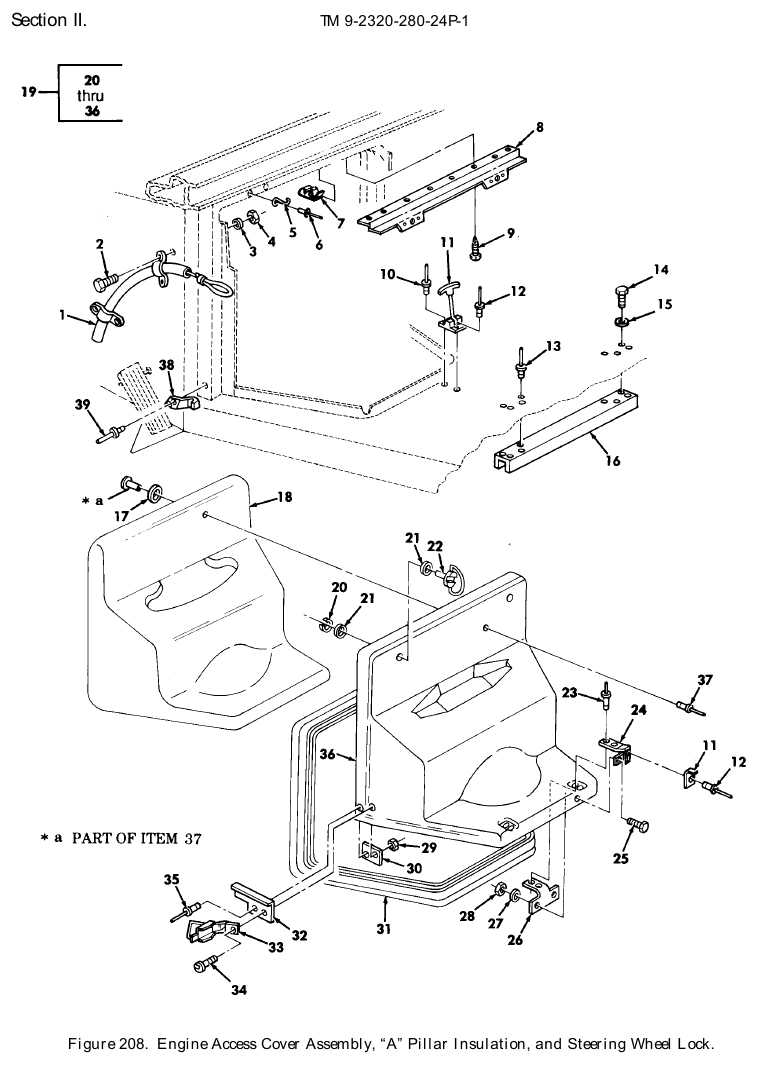

TM 9-2320-280-24P figure 208, Engine Access Cover Assembly, “A” Pillar Insulation, and Steering Wheel Lock: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Steering Wheel Lock Assembly NSN 2530-01-196-4724 · P/N 12340252 LOCK ASSEMBLY,STEER Fits: All models	1	40 in stock $149.03 per assemblygov't list price
2	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X .75 Fits: All models	4	248 in stock
3	Flat Washer NSN 5310-01-254-5352 · P/N 5593308 WASHER,FLAT 1/4 Fits: All models	4	We can source it
4	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	4	184 in stock
5	Turnlock Fastener Lock Spring NSN 5325-00-449-3001 · P/N S7-250 LOCKSPRING,TURNLOCK Fits: All models	2	We can source it
6	Blind Rivet NSN 5320-00-083-5009 · P/N ADS43 RIVET,BLIND 1/8 DIA Fits: All models	4	641 in stock
7	Sheet Spring Nut NSN 5310-01-194-7066 · P/N C7685-10A NUT,SHEET SPRING Fits: All models	8	We can source it
8	Mounting Bracket NSN 5340-01-332-7515 · P/N 12338853 BRACKET,MOUNTING Fits: All models	1	We can source it $30–$60 eachtypical
9	Tapping Screw NSN 5305-00-432-4205 · P/N MS51861-49 SCREW,TAPPING 190-16 X 1.00 Fits: All models	8	99 in stock
10	Blind Rivet NSN 5320-01-220-0596 · P/N CR-213-4-4 RIVET,BLIND 1/8 DIA Fits: All models	2	We can source it
11	Clamping Catch NSN 5340-00-492-2313 · P/N 37-10-071-10 CATCH,CLAMPING Fits: All models	2	3 in stock
12	Blind Rivet NSN 5320-01-258-2576 · P/N CR-213-4-2 RIVET,BLIND 1/8 DIA Fits: All models	4	We can source it
13	Blind Rivet NSN 5320-01-143-5075 · P/N NAS9301BNS-6-02 RIVET,BLIND 3/16 Fits: All models	2	92 in stock
14	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	4	471 in stock
15	Flat Washer NSN 5310-01-251-0748 · P/N 5593691 WASHER,FLAT 1/4 Fits: All models	4	We can source it
16	Radio Rack Brace NSN 2540-01-202-8547 · P/N 12340638 BRACE,RADIO RACK Fits: All models	1	51 in stock $31.36our price Buy online ↗
17	Recessed Washer NSN 5310-01-260-5784 · P/N 5597048 WASHER,RECESSED Fits: All models	7	We can source it
18	Cover E Insulation NSN 2510-01-254-1484 · P/N 12340658 INSULATION,COVER,E Fits: All models	1	45 in stock $132.99our price Buy online ↗
19	Engine Compartment Hood NSN 2510-01-248-1340 · P/N 12339431 HOOD,ENGINE COMPART Fits: All models	1	18 in stock $1,097.15 per eachgov't list price
20	Turnlock Fastener Eyelet NSN 5325-01-266-8414 · P/N GH7 EYELET,TURNLOCK FAS Fits: All models	2	2 in stock
21	Flat Washer NSN 5310-01-278-9555 · P/N 5593318 WASHER,FLAT 7/16 Fits: All models	4	1 in stock
22	Turnlock Fastener Stud NSN 5325-01-191-7555 · P/N BJR7-1.00 STUD,TURNLOCK FASTE Fits: All models	2	18 in stock $30–$65 eachtypical
23	Blind Rivet NSN 5320-01-033-8637 · P/N CR3243-6-4 RIVET,BLIND 3/16 DIA Fits: All models	4	We can source it
24	Retaining Strap NSN 5340-01-252-8537 · P/N 5585132-C STRAP,RETAINING Fits: All models	2	1,300 in stock
25	Machine Screw NSN 5305-01-006-2053 · P/N MS51849-75 SCREW,MACHINE #10-24 X 9/16 Fits: All models	4	We can source it
26	Angle Bracket NSN 5340-01-255-4655 · P/N 5585133 BRACKET,ANGLE #10 Fits: All models	2	We can source it
27	Flat Washer NSN 5310-01-253-1618 · P/N MS51412-18 WASHER,FLAT #10 Fits: All models	4	We can source it
28	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON #10-24 Fits: All models	4	952 in stock
29	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: All models	2	354 in stock
30	Plate Spacer NSN 5365-01-252-8026 · P/N 5585143 SPACER,PLATE Fits: All models	2	1,207 in stock $14.69our price Buy online ↗
31	Seal Assembly NSN 5330-01-197-3620 · P/N SF5575925 SEAL ASSEMBLY Fits: All models	1	1 in stock $30–$60 per assemblytypical
32	Engine Accessory Bracket NSN 2990-01-249-3502 · P/N 12338952-1 BRACKET,ENGINE ACCE L.H Fits: All models	1	96 in stock
32	Captured Fuel Test Kit NSN 6635-01-248-5389 · P/N 12338952-2 BRACKET,ENGINE ACCE R.H Fits: All models	1	We can source it quote only $5,722.61 per eachgov't list price
33	Hood Vehicular Latch NSN 2540-01-210-2787 · P/N 12338950 LATCH,HOOD,VEHICULA Fits: All models	2	187 in stock $24.95our price Buy online ↗
34	Shoulder Screw NSN 5305-01-211-1470 · P/N 12339428 SCREW,SHOULDER 5/16-18 X 1.00 Fits: All models	2	8 in stock
35	Blind Rivet NSN 5320-01-033-9126 · P/N CR3242-6-4 RIVET,BLIND 3/16 Fits: All models	2	We can source it
36	Cover P/N 5593982 COVER Fits: All models	1	Ask us
37	Rivet NSN 5320-01-254-2283 · P/N BALM-6BP-14 RIVET 3/16 DIA Fits: All models	7	We can source it
38	Engine Cover Strike NSN 2540-01-247-7914 · P/N 12338945-2 STRIKE,ENGINE COVER R.H Fits: All models	1	26 in stock $25–$40 eachtypical
38	Engine Cover Strike NSN 2540-01-247-7915 · P/N 12338945-1 STRIKE,ENGINE COVER L.H Fits: All models	1	1 in stock
39	Blind Rivet NSN 5320-01-033-8638 · P/N CR3243-6-3 RIVET,BLIND 3/16 DIA Fits: All models	4	We can source it

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
