HMMWV Cargo Bulkhead and Mounting Hardware TM 9-2320-280-24P · Fig. 209

Every part in figure 209 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 17 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

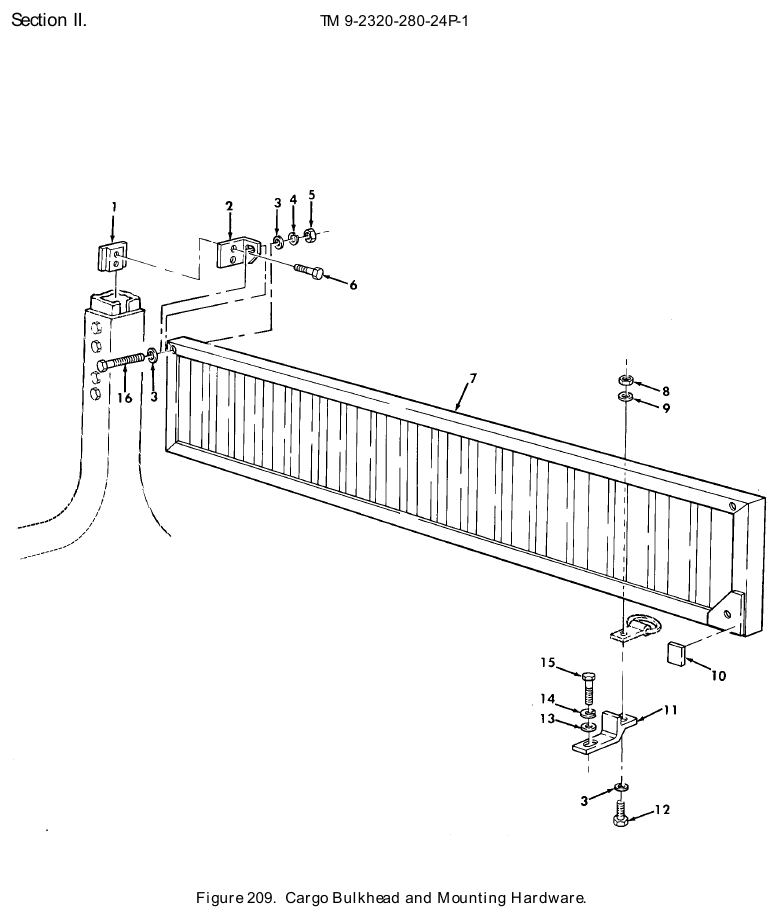

TM 9-2320-280-24P figure 209, Cargo Bulkhead and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Plate Nut NSN 5310-01-197-1161 · P/N 5575466 NUT,PLAIN,PLATE 1/4-20,GREEN, (PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	1,820 in stock $15.00our price Buy online ↗
2	Angle Bracket NSN 5340-01-203-3273 · P/N 12340709-1 BRACKET,ANGLE L.H.,GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	We can source it $25–$40 eachtypical
2	Angle Bracket NSN 5340-01-205-5118 · P/N 12340709-2 BRACKET,ANGLE R.H.,GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	51 in stock
3	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16,GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	6	1,368 in stock
4	Lock Washer NSN 5310-01-199-3440 · P/N 9424258 WASHER,LOCK 5/16,GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	We can source it
5	Plain Hexagon Nut NSN 5310-00-880-7744 · P/N MS51967-5 NUT,PLAIN,HEXAGON 5/16-18,GREEN, (PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	1,817 in stock
6	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N B1821BH025C088N SCREW,CAP,HEXAGON H 1/4-20 X 7/8, GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	4	We can source it
7	Cargo Bulkhead Assembly NSN 2510-01-189-3456 · P/N 12339697 CARGO BULKHEAD ASSE GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	1	2 in stock $402.93 per assemblygov't list price
8	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18,GREEN, (PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	354 in stock
9	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16,GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	471 in stock
10	Rubber Strip Make From Rubber P/N 12340721-1.25 RUBBER STRIP MAKE FROM RUBBER,P/N 12340721,1.25 INCHES LONG PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	7	Ask us
11	Pillar Vehicular Support NSN 5340-01-196-5312 · P/N 12340720 SUPPORT,PILLAR VEHI GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	7 in stock $25–$55 eachtypical
12	Machine Bolt NSN 5306-01-075-8519 · P/N MS90725-36 BOLT,MACHINE 5/16-18 X 1.00,GREEN, (PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	35 in stock
13	Flat Washer NSN 5310-00-809-5997 · P/N MS27183-17 WASHER,FLAT 1/2,GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	82 in stock
14	Lock Washer NSN 5310-01-216-7390 · P/N MS51415-9 WASHER,LOCK 1/2,GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	We can source it
15	Cap Hexagon Head Screw NSN 5305-00-071-2069 · P/N B1821BH050C150N SCREW,CAP,HEXAGON H 1/2-13 X 1.50, GREEN,(PAINT TAN OR WHITE IF REQUIRED) PART OF KIT P/N 12338119 PART OF KIT P/N 57K0221 PART OF KIT P/N 57K0217 Fits: M998, M998A1, M1038, M1038A1, M1097, M1097A1 and 2 more	2	2,205 in stock
16	Machine Bolt NSN 5306-00-226-4835 · P/N B1821BH031C250N BOLT,MACHINE 5/16-18 X 2.50,GREEN, (PAINT TAN OR WHITE IF REQUIRED) Fits: All models	2	18 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
