HMMWV Interior Net Assemblies, Cargo Bulkhead, and Related Items TM 9-2320-280-24P · Fig. 210

Every part in figure 210 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 16 lines, 12 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

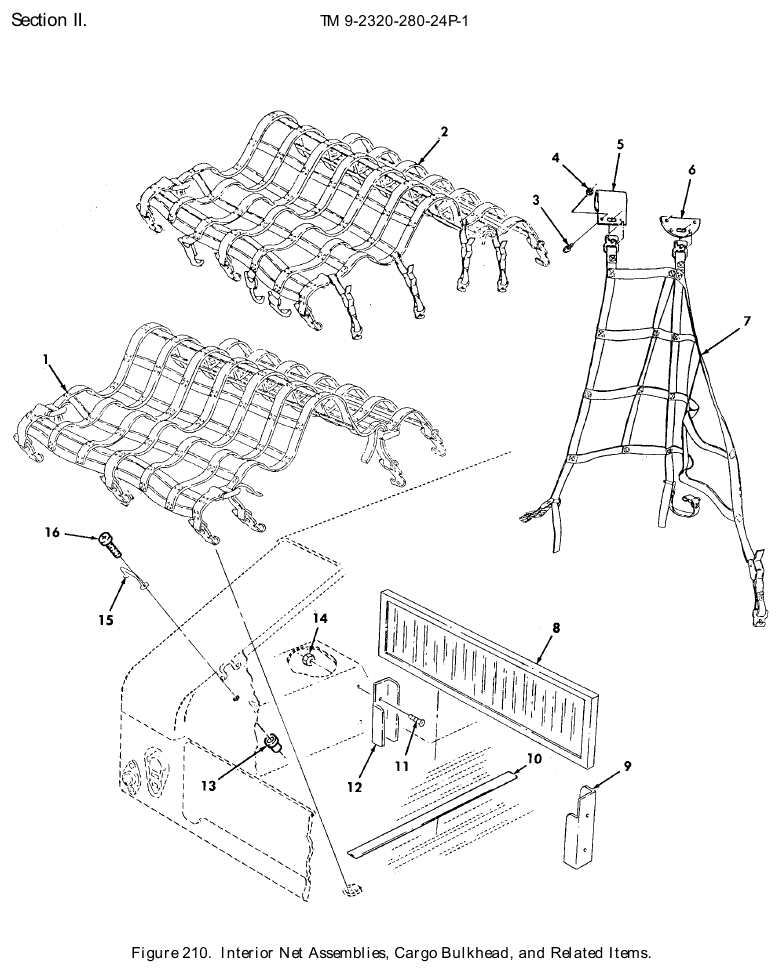

TM 9-2320-280-24P figure 210, Interior Net Assemblies, Cargo Bulkhead, and Related Items: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cargo Vehicle Tie Down NSN 3990-01-429-9352 · P/N 12446813 BRACKET,MOUNTING STOWAGE COMPART Fits: M1025A2, M1043A2	1	We can source it $298.61 per eachgov't list price
2	Webbing Strap NSN 5340-01-415-8672 · P/N 12446812 STRAP,WEBBING HATCH STOWAGE Fits: M1025A2, M1043A2	1	168 in stock $195.01our price Buy online ↗
3	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP,HEXAGON H 1/4-20 X 7/16 Fits: M1025A2, M1043A2	4	98 in stock
4	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1025A2, M1043A2	4	626 in stock
5	Loop Clamp NSN 5340-01-408-6462 · P/N 12446899 CLAMP,LOOP L.H Fits: M1025A2, M1043A2	4	We can source it $90–$150 eachtypical
6	Mounting Bracket NSN 5340-01-408-6458 · P/N 12446900 BRACKET,MOUNTING R.H Fits: M1025A2, M1043A2	1	We can source it
7	Cargo Vehicle Tie Down NSN 3990-01-411-6575 · P/N 12446811 TIE DOWN,CARGO,VEHI REAR SEAT Fits: M1025A2, M1043A2	1	6 in stock $65–$105 eachtypical
8	Structural Vehicular Frame NSN 2510-01-411-4175 · P/N 12446814 FRAME,STRUCTURAL,VE Fits: M1025A2, M1043A2	1	8 in stock $715.00our price Buy online ↗
9	Vehicular Components Bracket NSN 2590-01-411-3958 · P/N 12446773 BRACKET,VEHICULAR C R.H Fits: M1025A2, M1043A2	1	12 in stock $60–$100 eachtypical
10	Anti-Skid Strip NSN 7220-01-431-8340 · P/N 12446914 STRIP,ANTI-SKID Fits: M1025A2, M1043A2	8	We can source it
11	Cap Socket Head Screw NSN 5305-01-393-7801 · P/N MS24667-52Z SCREW,CAP,SOCKET HE 3/8-16 X 1.00 Fits: M1025A2, M1043A2	4	136 in stock
12	Double Angle Bracket NSN 5340-01-408-6459 · P/N 12446774 BRACKET,DOUBLE ANGL L.H Fits: M1025A2, M1043A2	1	2 in stock $175.00our price Buy online ↗
13	Screw Thread Insert NSN 5325-01-411-0066 · P/N ALS4-1024-130 INSERT,SCREW THREAD Fits: M1025A2, M1043A2	40	1,125 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M1025A2, M1043A2	4	219 in stock
15	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025A2, M1043A2	20	1 in stock
16	Machine Screw NSN 5305-01-410-8386 · P/N 156966 SCREW,MACHINE Fits: M1025A2, M1043A2	40	2,096 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
