HMMWV Rear Doors, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 211

Every part in figure 211 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 33 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

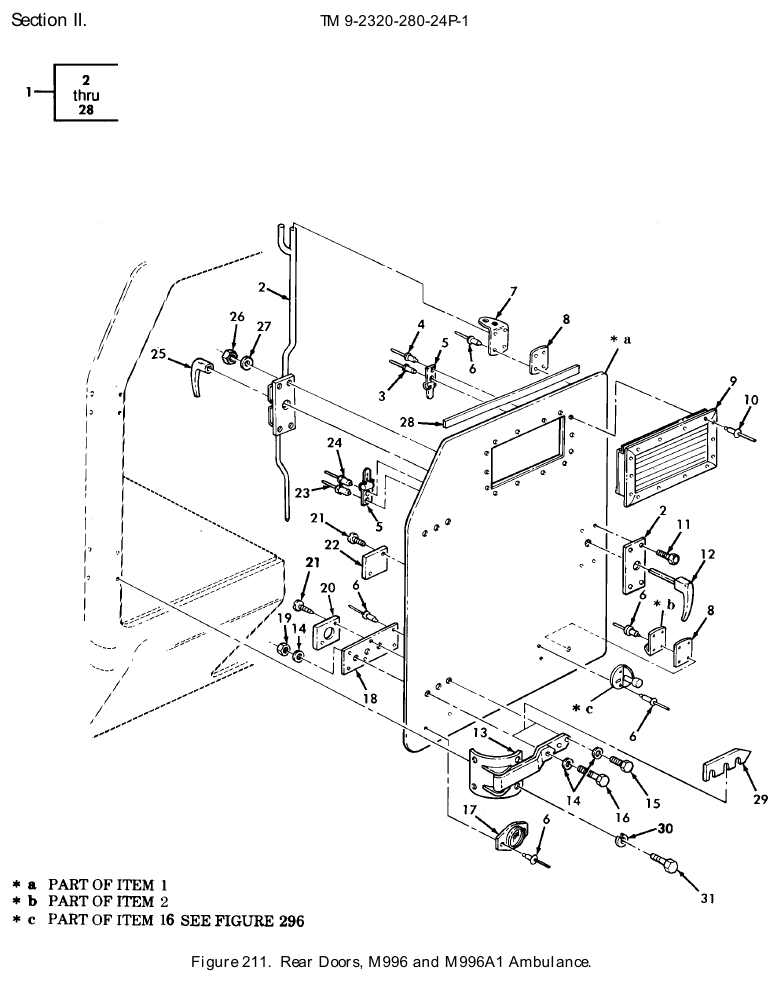

TM 9-2320-280-24P figure 211, Rear Doors, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Door NSN 2510-01-265-1138 · P/N 5597579 DOOR,VEHICULAR L.H. REAR Fits: M996, M996A1	1	23 in stock $46.55our price Buy online ↗
1	Vehicular Door NSN 2510-01-265-1139 · P/N 5597580 DOOR,VEHICULAR R.H. REAR Fits: M996, M996A1	1	16 in stock $3,185.00our price Buy online ↗
2	Door Latch Assembly NSN 5342-01-264-6532 · P/N J105CCLXBZ02 LATCH ASSEMBLY,DOOR L.H.,REAR Fits: M996, M996A1	1	We can source it $295.79 per assemblygov't list price
2	Latch Assembly Rear NSN 5342-01-266-5689 · P/N RD-860066 LATCH ASSEMBLY REAR R.H.,DOOR Fits: M996, M996A1	1	We can source it $419.37 per assemblygov't list price
3	Blind Rivet NSN 5320-01-135-7319 · P/N CR-213-6-3 RIVET,BLIND 3/16 Fits: M996, M996A1	1	72 in stock
4	Blind Rivet NSN 5320-00-083-5009 · P/N ADS43 RIVET,BLIND 1/8 Fits: M996, M996A1	1	641 in stock
5	Spring Tension Clip NSN 5340-01-271-5866 · P/N 12341798 CLIP,SPRING TENSION REAR DOOR, L.H Fits: M996, M996A1	2	14 in stock
6	Solid Rivet NSN 5320-01-271-1834 · P/N 5575940 RIVET,SOLID 3/16 Fits: M996, M996A1	30	We can source it
7	Latching Rod Guide P/N 12342296 GUIDE,LATCHING ROD Fits: M996, M996A1	2	Ask us
8	Shim NSN 5365-01-269-8671 · P/N 12341407 SHIM Fits: M996, M996A1	2	We can source it
9	Structural Vehicul Frame Section NSN 2510-01-275-8026 · P/N 5597870 FRAME SECTION,STRUC REAR DOOR,L.H Fits: M996, M996A1	1	We can source it $649.81 per eachgov't list price
10	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M996, M996A1	14	We can source it
11	Cap Hexagon Head Screw NSN 5305-00-071-2510 · P/N B1821BH025C175N SCREW,CAP,HEXAGON H 1/4-20 X 1.75 Fits: M996, M996A1	4	We can source it
12	Door Handle NSN 5340-01-276-6673 · P/N J50062XXBZ01 HANDLE,DOOR Fits: M996, M996A1	1	4 in stock $25–$60 eachtypical
13	Door Vehicular Hinge NSN 2510-01-264-6546 · P/N R-2423-A HINGE,DOOR VEHICULA Fits: M996, M996A1	2	4 in stock $142.59 per eachgov't list price
14	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M996, M996A1	12	1,368 in stock
15	Machine Bolt NSN 5306-00-226-4833 · P/N B1821BH031C200N BOLT,MACHINE 5/16-18 X 2.00 Fits: M996, M996A1	4	23 in stock
16	Machine Bolt NSN 5306-00-226-4834 · P/N MS35291-41 BOLT,MACHINE 5/16-18 X 2.25 Fits: M996, M996A1	2	10,674 in stock
17	Indicating Clearance Reflector NSN 9905-00-205-2795 · P/N 24338 REFLECTOR,INDICATIN Fits: M996, M996A1	1	1,078 in stock $14.70our price Buy online ↗
18	Mending Plate NSN 5340-01-270-8370 · P/N 12340968 PLATE,MENDING Fits: M996, M996A1	2	We can source it $272.48 per eachgov't list price
19	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M996, M996A1	6	354 in stock
20	Bumper NSN 5340-01-270-8433 · P/N 12341500-2 BUMPER,PLASTIC Fits: M996, M996A1	1	We can source it
21	Tapping Screw NSN 5305-01-270-5418 · P/N 5593430 SCREW,TAPPING,THREA #10-16 X 1.50 Fits: M996, M996A1	4	We can source it
22	Bumper NSN 5340-01-271-1846 · P/N SF5934196 BUMPER,PLASTIC Fits: M996	1	We can source it
23	Blind Rivet NSN 5320-01-085-1755 · P/N CR3213-6-1 RIVET,BLIND 3/16 Fits: M996, M996A1	1	We can source it
24	Blind Rivet NSN 5320-01-084-9234 · P/N CR-3213-6-6 RIVET,BLIND 3/16 Fits: M996, M996A1	1	12 in stock
25	Door Handle NSN 5340-01-265-8911 · P/N J500IHXXBZ01 HANDLE,DOOR Fits: M996, M996A1	1	14 in stock $25–$45 eachtypical
26	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M996, M996A1	4	626 in stock
27	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M996, M996A1	4	2,325 in stock
28	Plain Seal NSN 5330-01-298-4713 · P/N 12338807-6 SEAL,PLAIN Fits: M996, M996A1	2	6 in stock
29	Shim NSN 5365-01-269-8672 · P/N 12340984 SHIM Fits: M996, M996A1	V	We can source it $25–$40 eachtypical
30	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: M996, M996A1	16	2,036 in stock
31	Machine Bolt NSN 5306-00-226-4829 · P/N B1821BH031C125N BOLT,MACHINE 5/16-18 X 1.25 Fits: M996, M996A1	16	74 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
