HMMWV Rear Doors, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 212

Every part in figure 212 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 33 lines, 21 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

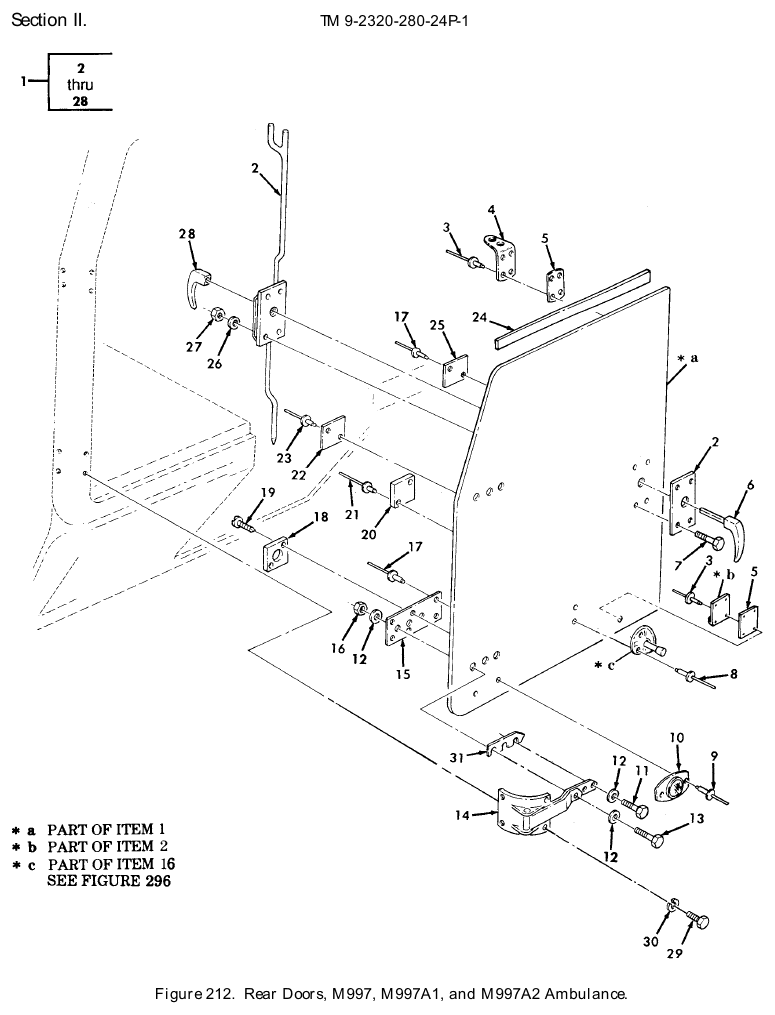

TM 9-2320-280-24P figure 212, Rear Doors, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Door NSN 2510-01-265-1140 · P/N 12341782-1 DOOR,VEHICULAR REAR,L.H Fits: M997, M997A1, M997A2	1	21 in stock quote only $8,641.97 per eachgov't list price
1	Vehicular Door NSN 2510-01-265-1141 · P/N 12341782-2 DOOR,VEHICULAR REAR,R.H Fits: M997, M997A1, M997A2	1	31 in stock quote only $6,100.65 per eachgov't list price
2	Door Latch Assembly NSN 5340-01-265-3672 · P/N 12341711-2 LATCH ASSEMBLY,DOOR REAR DOOR, L.H Fits: M997, M997A1, M997A2	1	50 in stock $368.16 per assemblygov't list price
2	Door Latch Assembly NSN 5342-01-264-6533 · P/N 12341711-1 LATCH ASSEMBLY,DOOR REAR DOOR, R.H Fits: M997, M997A1, M997A2	1	15 in stock $152.32 per assemblygov't list price
3	Solid Rivet NSN 5320-01-271-1834 · P/N 5575940 RIVET,SOLID 3/16 Fits: M997, M997A1, M997A2	8	We can source it
4	Latching Rod Guide P/N 12342296 GUIDE,LATCHING ROD Fits: M997, M997A1, M997A2	1	Ask us
5	Shim NSN 5365-01-269-8671 · P/N 12341407 SHIM Fits: M997, M997A1, M997A2	V	We can source it
6	Door Handle NSN 5340-01-276-6673 · P/N J50062XXBZ01 HANDLE,DOOR Fits: M997, M997A1, M997A2	1	4 in stock $25–$60 eachtypical
7	Cap Hexagon Head Screw NSN 5305-00-071-2510 · P/N B1821BH025C175N SCREW,CAP,HEXAGON H 1/4-20 X 1.75 Fits: M997, M997A1, M997A2	4	We can source it
8	Blind Rivet NSN 5320-01-084-9235 · P/N CR-3213-6-5 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	2	7 in stock
9	Blind Rivet NSN 5320-01-136-1782 · P/N CR3213-6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	2	50 in stock
10	Indicating Clearance Reflector NSN 9905-00-205-2795 · P/N MS35387-1 REFLECTOR,INDICATIN Fits: M997, M997A1, M997A2	1	1,078 in stock $14.70our price Buy online ↗
11	Machine Bolt NSN 5306-00-226-4833 · P/N B1821BH031C200N BOLT,MACHINE 5/16-18 X 2.00 Fits: M997, M997A1, M997A2	4	23 in stock
12	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M997, M997A1, M997A2	12	1,368 in stock
13	Machine Bolt NSN 5306-00-226-4834 · P/N MS35291-41 BOLT,MACHINE 5/16-18 X 2.25 Fits: M997, M997A1, M997A2	2	10,674 in stock
14	Door Vehicular Hinge NSN 2510-01-264-6546 · P/N R-2423-A HINGE,DOOR VEHICULA Fits: M997, M997A1, M997A2	2	4 in stock $142.59 per eachgov't list price
15	Mending Plate NSN 5340-01-270-8370 · P/N 12340968 PLATE,MENDING Fits: M997, M997A1, M997A2	2	We can source it $272.48 per eachgov't list price
16	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M997, M997A1, M997A2	6	354 in stock
17	Solid Rivet NSN 5320-00-721-9062 · P/N MS20470AD6-10 RIVET,SOLID 3/16 Fits: M997, M997A1, M997A2	12	We can source it
18	Bumper NSN 5340-01-270-8433 · P/N 12341500-2 BUMPER,PLASTIC Fits: M997, M997A1, M997A2	1	We can source it
19	Tapping Screw NSN 5305-01-270-5418 · P/N 5593430 SCREW,TAPPING,THREA #10-16 X 1.50 Fits: M997, M997A1, M997A2	2	We can source it
20	Bumper NSN 5340-01-271-1846 · P/N SF5934196 BUMPER,PLASTIC Fits: M997, M997A1, M997A2	1	We can source it
21	Blind Rivet NSN 5320-01-275-1998 · P/N BAPKTR-64 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	2	We can source it
22	Bumper NSN 5340-01-270-8432 · P/N 12341500-1 BUMPER,PLASTIC Fits: M997, M997A1, M997A2	1	1 in stock
23	Blind Rivet NSN 5320-01-084-9234 · P/N CR3213-6-06 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	4	12 in stock
24	Plain Seal NSN 5330-01-298-4713 · P/N 12338807-6 SEAL,PLAIN Fits: M997, M997A1, M997A2	2	6 in stock
25	Bumper NSN 5340-01-270-8431 · P/N 12341500-3 BUMPER,PLASTIC Fits: M997, M997A1, M997A2	1	We can source it
26	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M997, M997A1, M997A2	1	2,325 in stock
27	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M997, M997A1, M997A2	1	626 in stock
28	Door Handle NSN 5340-01-265-8911 · P/N J500IHXXBZ01 HANDLE,DOOR Fits: M997, M997A1, M997A2	1	14 in stock $25–$45 eachtypical
29	Machine Bolt NSN 5306-00-226-4829 · P/N B1821BH031C125N BOLT,MACHINE 5/16-18 X 1.25 Fits: M997, M997A1, M997A2	16	74 in stock
30	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: M997, M997A1, M997A2	16	2,036 in stock
31	Shim NSN 5365-01-269-8672 · P/N 12340984 SHIM Fits: M997, M997A1, M997A2	V	We can source it $25–$40 eachtypical

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
