HMMWV Bulkhead Doors and Related Parts, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 213

Every part in figure 213 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 40 lines, 18 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

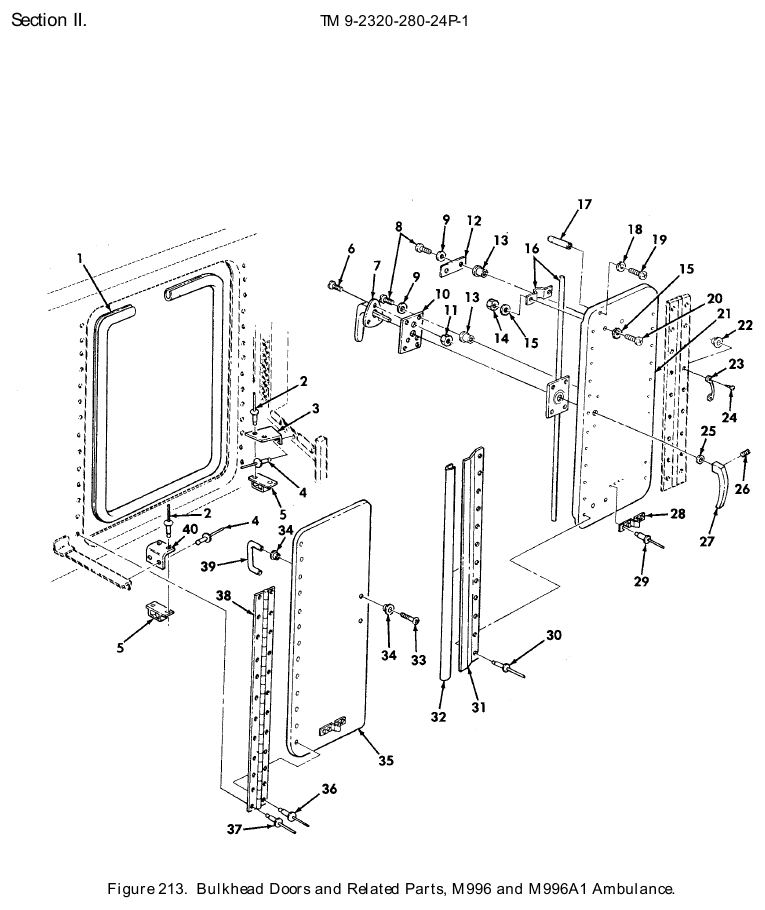

TM 9-2320-280-24P figure 213, Bulkhead Doors and Related Parts, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Special Shaped Seal NSN 5330-01-265-8948 · P/N 12341625-2 SEAL,NONMETALLIC SP Fits: M996, M996A1	1	1 in stock $109.49 per eachgov't list price
2	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M996, M996A1	4	We can source it
3	Angle Bracket NSN 5340-01-272-3353 · P/N 12341485 BRACKET,ANGLE Fits: M996, M996A1	1	We can source it $25–$60 eachtypical
4	Solid Rivet NSN 5320-00-117-7291 · P/N MS20426AD6-12 RIVET,SOLID 3/16 Fits: M996, M996A1	4	We can source it
5	Door Vehicular Latch NSN 2540-01-270-2250 · P/N 7-1910 LATCH,DOOR,VEHICULA Fits: M996, M996A1	2	We can source it $30–$65 eachtypical
6	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: M996, M996A1	3	We can source it
7	Door Handle NSN 5340-01-276-7415 · P/N 12341746 HANDLE,DOOR Fits: M996, M996A1	1	We can source it $55–$95 eachtypical
8	Machine Screw NSN 5305-00-988-1727 · P/N MS35206-283 SCREW,MACHINE 1/4-20 X 1.00 Fits: M996, M996A1	8	2,424 in stock
9	Machine Bolt NSN 5306-00-225-8498 · P/N MS90725-33 BOLT,MACHINE 1/4 Fits: M996, M996A1	8	351 in stock
10	Access Cover NSN 5340-01-273-2342 · P/N 5597096 COVER,ACCESS Fits: M996, M996A1	1	We can source it $25–$45 eachtypical
11	Plain Hexagon Nut NSN 5310-00-905-0762 · P/N MS51967-3 NUT,PLAIN,HEXAGON 1/4-20 Fits: M996, M996A1	3	We can source it
12	Access Cover NSN 5340-01-270-8483 · P/N 5597090 COVER,ACCESS Fits: M996, M996A1	2	We can source it $25–$40 eachtypical
13	Plusnut NSN 4931-01-202-8692 · P/N 12339998-13 PLUSNUT Fits: M996, M996A1	4	We can source it
14	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON #10-24 Fits: M996, M996A1	4	952 in stock
15	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT Fits: M996, M996A1	8	909 in stock
16	Exit Bolt NSN 5340-01-310-1189 · P/N J95CCXXXBZ02 BOLT,EXIT Fits: M996, M996A1	1	We can source it $332.99 per eachgov't list price
17	Straight Headless Pin NSN 5315-01-269-8504 · P/N 12341388 PIN,STRAIGHT,HEADLE Fits: M996, M996A1	1	We can source it
18	Lock Washer NSN 5310-00-045-4007 · P/N MS35338-41 WASHER,LOCK #6 Fits: M996, M996A1	1	29 in stock
19	Machine Screw NSN 5305-00-984-4988 · P/N MS35206-228 SCREW,MACHINE #6-32 X 3/8 Fits: M996, M996A1	1	We can source it
20	Machine Screw NSN 5305-00-984-6210 · P/N MS35206-263 SCREW,MACHINE Fits: M996, M996A1	4	694 in stock
21	Bulkhead Assem Door NSN 2510-01-265-1126 · P/N 12341778 DOOR,BULKHEAD ASSEM Fits: M996, M996A1	1	We can source it $8,220.09 per assemblygov't list price
22	Plain Nut NSN 5310-01-395-3549 · P/N MS27130-A28 NUT,PLAIN,BLIND RIV #10-32 Fits: M996, M996A1, M997, M997A1, M997A2	2	4 in stock
23	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M996, M997	1	1 in stock
24	Screw NSN 5305-01-185-0114 · P/N 157166 SCREW #10-32 X 3/4 Fits: M996, M997	2	We can source it
25	Flat Washer NSN 5310-01-204-3344 · P/N 4M116-04004 WASHER,FLAT Fits: M996, M996A1	1	We can source it
26	Setscrew NSN 5305-00-728-6274 · P/N MS51973-50 SETSCREW Fits: M996, M996A1	1	We can source it
27	Door Handle NSN 5340-01-265-8911 · P/N J500IHXXBZ01 HANDLE,DOOR Fits: M996, M996A1	1	14 in stock $25–$45 eachtypical
28	Catch Strike NSN 5340-01-270-8435 · P/N 7-2414 STRIKE,CATCH Fits: M996, M996A1	2	8 in stock $25–$40 eachtypical
29	Blind Rivet NSN 5320-00-899-0981 · P/N AD42BS RIVET,BLIND 3/16 Fits: M996, M996A1	8	108 in stock
30	Solid Rivet NSN 5320-00-526-2945 · P/N MS20426AD6-4 RIVET,SOLID 3/16 Fits: M996, M996A1	12	We can source it
31	Bulkhead Retainer NSN 2510-01-265-1127 · P/N 12341109-2 RETAINER,BULKHEAD Fits: M996, M996A1	1	We can source it $25–$55 eachtypical
32	Plain Seal NSN 5330-01-265-8808 · P/N SF5934182 SEAL,PLAIN Fits: M996, M996A1	1	1 in stock $30–$70 eachtypical
33	Machine Screw NSN 5305-00-984-6199 · P/N MS35206-251 SCREW,MACHINE #8-32 X 1.625 Fits: M996, M996A1	2	We can source it
34	Recessed Washer NSN 5310-01-288-1257 · P/N 4487(US26D) WASHER,RECESSED Fits: M996, M996A1	4	310 in stock
35	Bulkhead Assem Door NSN 2510-01-273-8376 · P/N 12341418 DOOR,BULKHEAD ASSEM Fits: M996, M996A1	1	We can source it $7,033.42 per assemblygov't list price
36	Blind Rivet NSN 5320-01-143-5075 · P/N CR-213-6-2 RIVET,BLIND 3/16 Fits: M996, M996A1	24	92 in stock
37	Blind Rivet NSN 5320-01-135-7319 · P/N CR-213-6-3 RIVET,BLIND 3/16 Fits: M996, M996A1	24	72 in stock
38	Butt Hinge NSN 5340-01-272-5611 · P/N 5933947 HINGE,BUTT Fits: M996, M996A1	2	1 in stock $675.95 per eachgov't list price
39	Bow 27) Handle NSN 5340-01-278-8588 · P/N 4485(US 27) HANDLE,BOW Fits: M996, M996A1	1	11 in stock
40	Angle Bracket NSN 5340-01-277-8125 · P/N 12341486 BRACKET,ANGLE Fits: M996, M996A1	1	We can source it $25–$60 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
