HMMWV Bulkhead Doors and Related Parts, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 214

Every part in figure 214 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 33 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

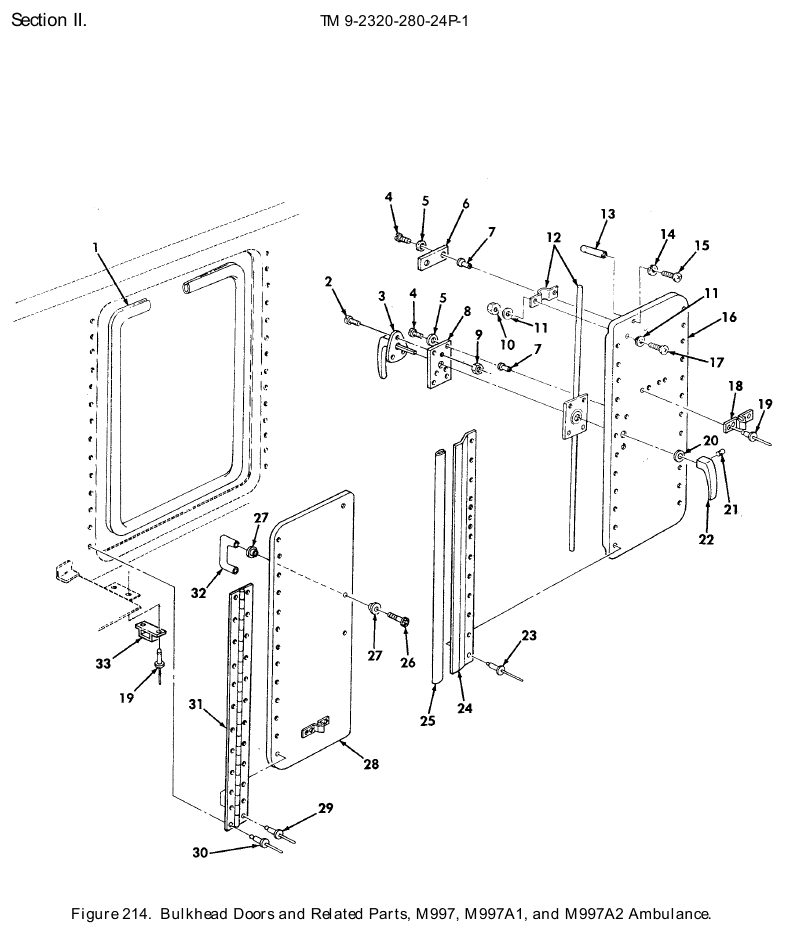

TM 9-2320-280-24P figure 214, Bulkhead Doors and Related Parts, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Seal NSN 5330-01-265-8804 · P/N 12341625-4 SEAL,PLAIN Fits: M997, M997A1, M997A2	1	7 in stock $30–$65 eachtypical
2	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X 3/4 Fits: M997, M997A1, M997A2	3	We can source it
3	Door Handle NSN 5340-01-276-7415 · P/N 12341746 HANDLE,DOOR Fits: M997, M997A1, M997A2	1	We can source it $55–$95 eachtypical
4	Machine Screw NSN 5305-00-071-1318 · P/N MS51957-83 SCREW,MACHINE 1/4-20 X 1.00 Fits: M997, M997A1, M997A2	8	6 in stock
5	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M997, M997A1, M997A2	8	2,325 in stock
6	Access Cover NSN 5340-01-270-8483 · P/N 5597090 COVER,ACCESS Fits: M997, M997A1, M997A2	2	We can source it $25–$40 eachtypical
7	Plusnut NSN 4931-01-202-8692 · P/N 12339998-13 PLUSNUT 1/4-20 Fits: M997, M997A1, M997A2	8	We can source it
8	Access Cover NSN 5340-01-273-2342 · P/N 5597096 COVER,ACCESS Fits: M997, M997A1, M997A2	1	We can source it $25–$45 eachtypical
9	Self-Locking Assembled Washe Nut NSN 5310-01-152-0598 · P/N 271172 NUT,SELF-LOCKING,AS 1/4-20 Fits: M997, M997A1, M997A2	3	570 in stock
10	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON Fits: M997, M997A1, M997A2	4	952 in stock
11	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT Fits: M997, M997A1, M997A2	8	909 in stock
12	Exit Bolt NSN 5340-01-310-1658 · P/N J95CCXRXBZ01 BOLT,EXIT Fits: M997, M997A1, M997A2	1	We can source it $95–$160 eachtypical
13	Straight Headless Pin NSN 5315-01-269-8504 · P/N 12341388 PIN,STRAIGHT,HEADLE Fits: M997, M997A1, M997A2	1	We can source it
14	Lock Washer NSN 5310-00-045-4007 · P/N MS35338-41 WASHER,LOCK #6 Fits: M997, M997A1, M997A2	1	29 in stock
15	Machine Screw NSN 5305-00-054-6652 · P/N MS51957-28 SCREW,MACHINE #6-32 X 3/8 Fits: M997, M997A1, M997A2	1	16 in stock
16	Vehicular Door NSN 2510-01-265-6953 · P/N 12341403 DOOR,VEHICULAR Fits: M997, M997A1, M997A2	1	We can source it
17	Machine Screw NSN 5305-00-984-6210 · P/N MS35206-263 SCREW,MACHINE Fits: M997, M997A1, M997A2	4	694 in stock
18	Catch Strike NSN 5340-01-270-8435 · P/N 7-2414 STRIKE,CATCH Fits: M997, M997A1, M997A2	2	8 in stock $25–$40 eachtypical
19	Blind Rivet NSN 5320-00-899-0981 · P/N AD42BS RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	12	108 in stock
20	Flat Washer NSN 5310-01-204-3344 · P/N 4M116-04004 WASHER,FLAT Fits: M997, M997A1, M997A2	1	We can source it
21	Setscrew NSN 5305-00-728-6274 · P/N MS51973-50 SETSCREW 1/4-20 Fits: M997, M997A1, M997A2	1	We can source it
22	Door Handle NSN 5340-01-265-8911 · P/N J500IHXXBZ01 HANDLE,DOOR Fits: M997, M997A1, M997A2	1	14 in stock $25–$45 eachtypical
23	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	14	We can source it
24	Double Angle Bracket NSN 5340-01-273-1684 · P/N 12341109 BRACKET,DOUBLE ANGL Fits: M997, M997A1, M997A2	1	We can source it $30–$65 eachtypical
25	Plain Seal NSN 5330-01-265-8805 · P/N 5934184 SEAL,PLAIN Fits: M997, M997A1, M997A2	1	5 in stock $30–$65 eachtypical
26	Machine Screw NSN 5305-00-984-6199 · P/N MS35206-251 SCREW,MACHINE #8-32 X 1-1/2 Fits: M997, M997A1, M997A2	2	We can source it
27	Recessed Washer NSN 5310-01-288-1257 · P/N 4487(US26D) WASHER,RECESSED Fits: M997, M997A1, M997A2	4	310 in stock
28	Vehicular Door NSN 2510-01-265-1130 · P/N 12341779 DOOR,VEHICULAR Fits: M997, M997A1, M997A2	1	We can source it quote only $4,775.58 per assemblygov't list price
29	Blind Rivet NSN 5320-01-143-5075 · P/N CR3213-6-2 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	34	92 in stock
30	Blind Rivet NSN 5320-01-135-7319 · P/N CR-213-6-3 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	34	72 in stock
31	Butt Hinge NSN 5340-01-272-8410 · P/N 5589961 HINGE,BUTT Fits: M997, M997A1, M997A2	2	We can source it $65–$110 eachtypical
32	Bow 27) Handle NSN 5340-01-278-8588 · P/N 4485(US 27) HANDLE,BOW Fits: M997, M997A1, M997A2	1	11 in stock
33	Door Vehicular Latch NSN 2540-01-270-2250 · P/N 7-1910 LATCH,DOOR,VEHICULA Fits: M997, M997A1, M997A2	2	We can source it $30–$65 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
