HMMWV NBC Panel Door and Related Hardware, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 215

Every part in figure 215 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 10 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

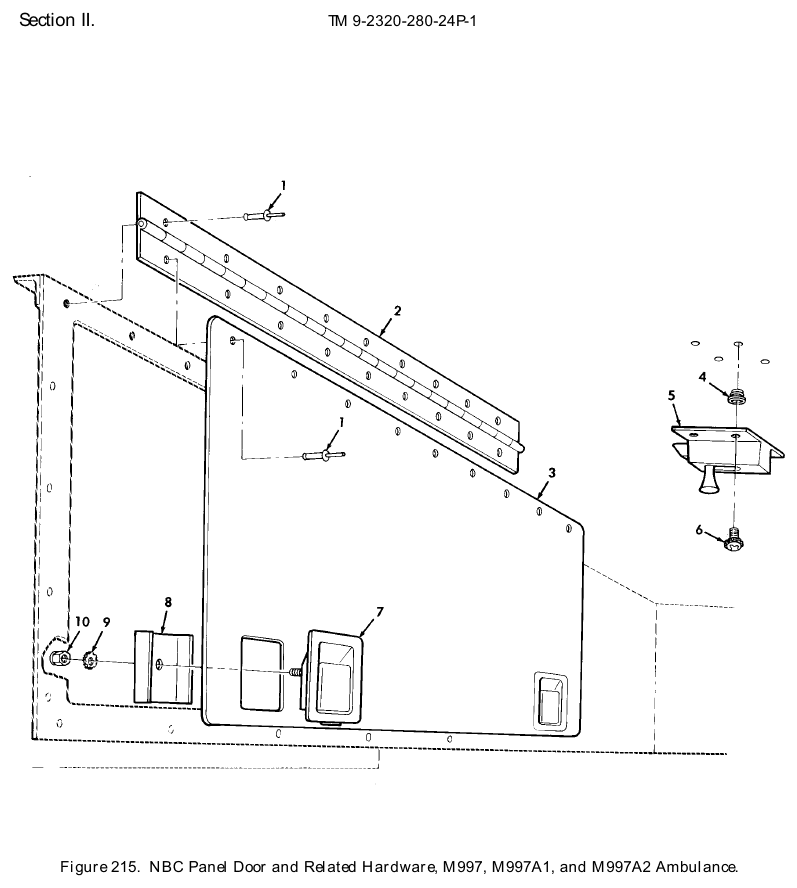

TM 9-2320-280-24P figure 215, NBC Panel Door and Related Hardware, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	18	We can source it
2	Butt Hinge NSN 5340-01-272-8409 · P/N 5597842 HINGE,BUTT Fits: M997, M997A1, M997A2	1	We can source it $70–$115 eachtypical
3	Body Vehicular Panel NSN 2510-01-266-4003 · P/N 12341217 PANEL,BODY,VEHICULA Fits: M997, M997A1, M997A2	1	We can source it $153.33 per eachgov't list price
4	Plain Blind Rivet Nut NSN 5310-00-964-7092 · P/N A10-116 NUT,PLAIN,BLIND RIV #10-32 Fits: M997, M997A1, M997A2	4	We can source it
5	Barrel Bolt NSN 5340-01-271-6361 · P/N 90-SN BOLT,BARREL Fits: M997, M997A1, M997A2	1	We can source it $45–$85 eachtypical
6	Screw NSN 5305-01-256-0406 · P/N 5593006 SCREW,ASSEMBLED WAS #10-32 X .75 Fits: M997, M997A1, M997A2	4	We can source it
7	Rim Latch Set NSN 5340-01-277-4613 · P/N 64-10-201-90 LATCH SET,RIM Fits: M997, M997A1, M997A2	2	1 in stock $35–$70 eachtypical
8	Retaining Strap NSN 5340-01-273-2381 · P/N 12341491 STRAP,RETAINING Fits: M997, M997A1, M997A2	2	We can source it $30–$65 eachtypical
9	Lock Washer NSN 5310-00-080-9786 · P/N MS45904-60 WASHER,LOCK #10 Fits: M997, M997A1, M997A2	2	8 in stock
10	Plain Cap Nut NSN 5310-00-013-1482 · P/N 131482 NUT,PLAIN,CAP #10-32 Fits: M997, M997A1, M997A2	2	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
