HMMWV NBC Access Door and Related Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 216

Every part in figure 216 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 11 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

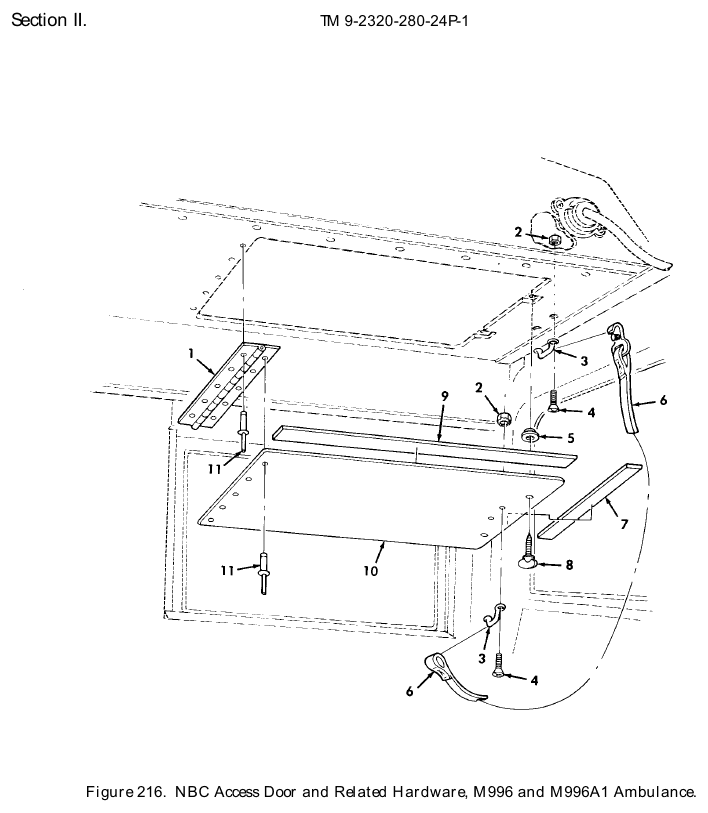

TM 9-2320-280-24P figure 216, NBC Access Door and Related Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Butt Hinge NSN 5340-01-274-3498 · P/N 5597710 HINGE,BUTT Fits: M996, M996A1	1	We can source it $365.82 per eachgov't list price
2	Nut NSN 5310-01-270-8189 · P/N 5593413 NUT #10-32 Fits: M996, M996A1	4	We can source it
3	Bow Handle NSN 5340-01-197-8673 · P/N 5581307 HANDLE,BOW Fits: M996, M996A1	2	14 in stock
4	Cap Hexagon Head Screw NSN 5305-00-582-9501 · P/N 410-63 SCREW,CAP,HEXAGON H #10-32 X .50 Fits: M996, M996A1	4	19 in stock
5	Lock Washer NSN 5310-00-880-9344 · P/N 12-11014-12 WASHER,LOCK Fits: M996, M996A1	2	We can source it
6	Webbing Strap NSN 5340-01-265-8924 · P/N 12341637 STRAP,WEBBING Fits: M996, M996A1	1	We can source it $65–$110 eachtypical
7	Seal Make From Seal P/N SF5597994 SEAL MAKE FROM SEAL, P/N R-495-T, 14.70 INCHES LONG Fits: M996, M996A1	1	Ask us
8	Panel Fastener Screw NSN 5305-01-185-2211 · P/N 12-12-404-11 SCREW,PANEL FASTENE Fits: M996, M996A1	2	We can source it
9	Seal Make From Seal P/N SF5597995 SEAL MAKE FROM SEAL, P/N R-495-T, 17 INCHES LONG Fits: M996, M996A1	2	Ask us
10	Body Vehicular Panel NSN 2510-01-266-5711 · P/N 12341536 PANEL,BODY,VEHICULA Fits: M996, M996A1	1	We can source it quote only $1,248.76 per eachgov't list price
11	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M996, M996A1	10	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
