HMMWV Litter Tray Stowage Door, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 217

Every part in figure 217 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 7 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

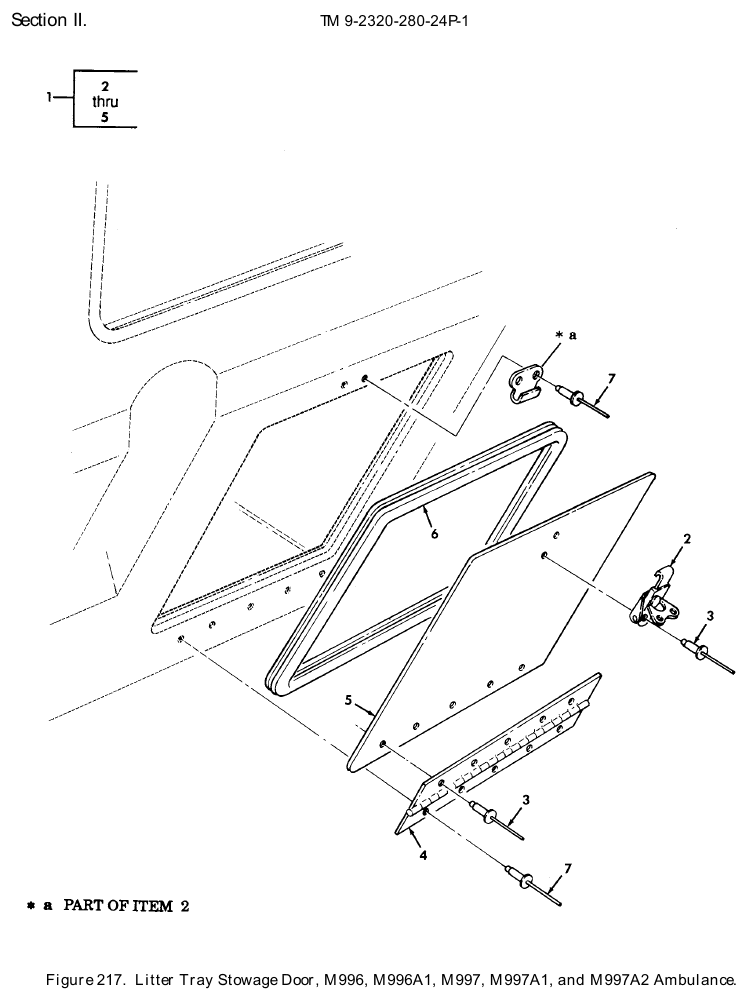

TM 9-2320-280-24P figure 217, Litter Tray Stowage Door, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Access Weapon System Door NSN 5342-01-266-5691 · P/N 12341111 DOOR,ACCESS Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $234.55 per assemblygov't list price
2	Clamping Catch NSN 5340-01-260-9942 · P/N 3-10 CATCH,CLAMPING Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
3	Blind Rivet NSN 5320-01-264-5978 · P/N MGLP-B6-7 RIVET,BLIND 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	7	We can source it
4	Butt Hinge NSN 5340-01-272-4942 · P/N 5589357 HINGE,BUTT Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$55 eachtypical
5	Access Weapon System Door NSN 5342-01-275-0532 · P/N 5589336 DOOR,ACCESS Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $50–$90 eachtypical
6	Nonmetallic SP Make From Seal Seal P/N 5592085 SEAL,NONMETALLIC SP MAKE FROM SEAL, P/N IC006197,34 INCHES LONG Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
7	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	7	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
