HMMWV Litter Tray Stowage, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 218

Every part in figure 218 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 8 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

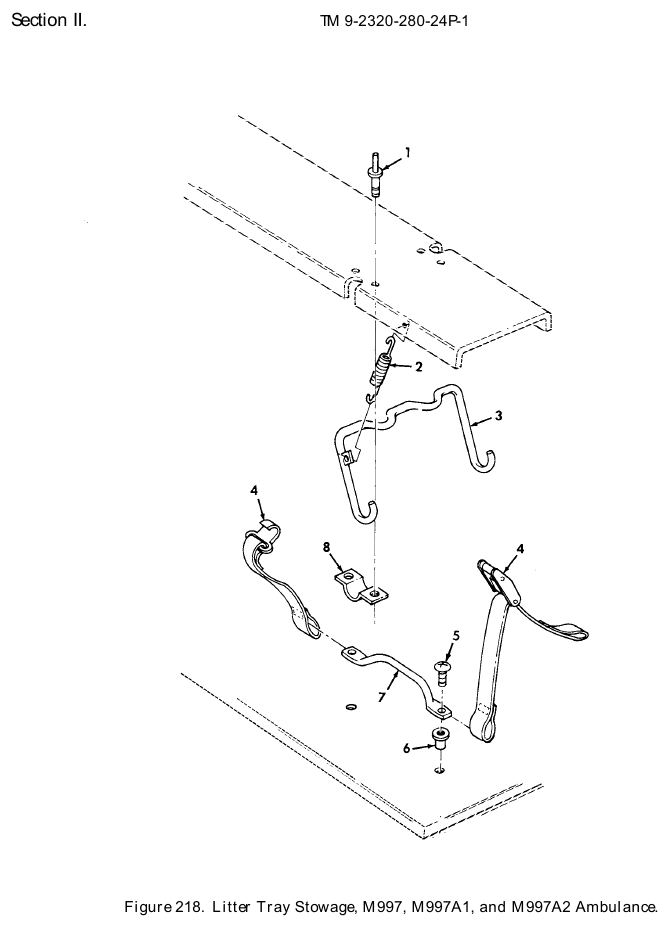

TM 9-2320-280-24P figure 218, Litter Tray Stowage, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-135-7319 · P/N CR-213-6-3 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	4	72 in stock
2	Helical Extension Spring NSN 5360-01-275-3512 · P/N 5589505 SPRING,HELICAL,EXTE Fits: M997, M997A1, M997A2	1	We can source it
3	Litter Stwg Support NSN 2510-01-266-5690 · P/N 12341142 SUPPORT,LITTER STWG Fits: M997, M997A1, M997A2	1	We can source it $65–$110 eachtypical
4	Webbing Strap NSN 5340-01-272-2801 · P/N 44647-21 STRAP,WEBBING Fits: M997, M997A1, M997A2	1	We can source it
5	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X .62 Fits: M997, M997A1, M997A2	2	4 in stock
6	Plain Blind Rivet Nut NSN 5310-00-460-4490 · P/N MS27130-S37 NUT,PLAIN,BLIND RIV #10-32 Fits: M997, M997A1, M997A2	2	We can source it
7	Strap Fastener Loop NSN 5340-01-213-5735 · P/N 5591648 LOOP,STRAP FASTENER Fits: M997, M997A1, M997A2	1	65 in stock
8	Retaining Strap NSN 5340-01-272-7814 · P/N 12340935 STRAP,RETAINING Fits: M997, M997A1, M997A2	2	We can source it
