HMMWV Rear Cover Assembly, Left and Right Hand, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 219

Every part in figure 219 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 11 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

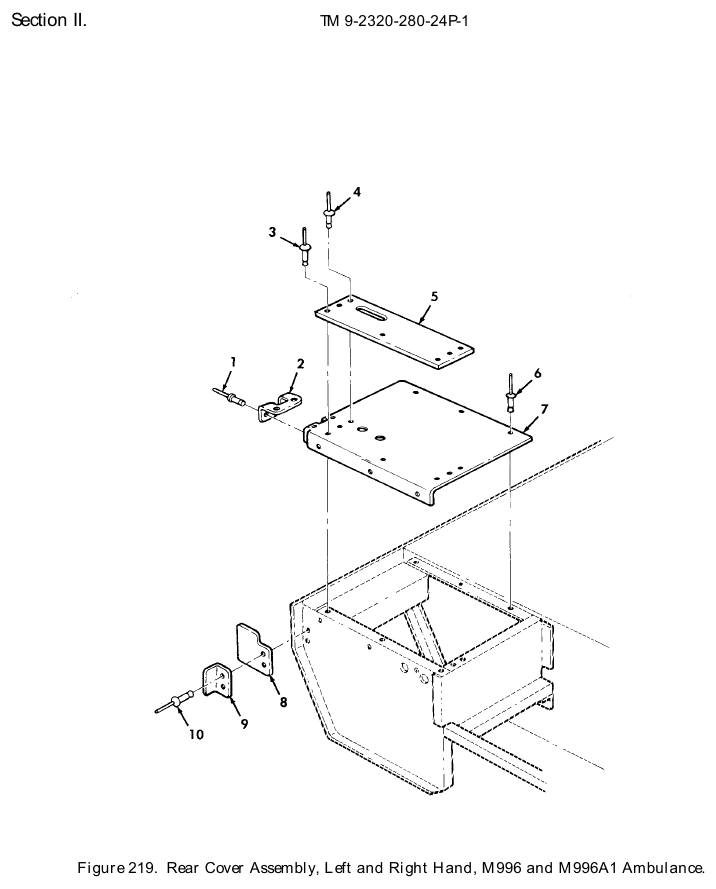

TM 9-2320-280-24P figure 219, Rear Cover Assembly, Left and Right Hand, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

ItemPartQtyOn our shelf
1
Blind Rivet
NSN 5320-01-135-7319 · P/N CR-213-6-3
RIVET,BLIND 3/16
Fits: M996, M996A1
 8 72 in stock
2
Angle Bracket
NSN 5340-01-272-6578 · P/N 12340941
BRACKET,ANGLE
Fits: M996, M996A1
 2 We can source it
$994.45 per eachgov't list price
3
Blind Rivet
NSN 5320-01-086-1148 · P/N M7885/3-6-06
RIVET,BLIND 3/16
Fits: M996, M996A1
 8 We can source it
4
Blind Rivet
NSN 5320-01-136-1785 · P/N CR-212-6-4
RIVET,BLIND 3/16
Fits: M996, M996A1
 4 58 in stock
5
Cover Rear Skid
NSN 2540-01-270-6459 · P/N SF5934158
SKID,COVER REAR
Fits: M996, M996A1
 2 We can source it
$25–$60 eachtypical
6
Blind Rivet
NSN 5320-01-264-5978 · P/N 12339355-2
RIVET,BLIND 3/16
Fits: M996, M996A1
 12 We can source it
7
Access Cover
NSN 5340-01-272-3361 · P/N 12341188
COVER,ACCESS L.H
Fits: M996, M996A1
 1 We can source it
$106.87 per eachgov't list price
7
Access Cover
NSN 5340-01-272-5517 · P/N 5597397
COVER,ACCESS R.H
Fits: M996, M996A1
 1 We can source it
$75–$130 eachtypical
8
Gasket
NSN 5330-01-272-9995 · P/N 12341698
GASKET
Fits: M996, M996A1
 2 We can source it
9
Angle Bracket
NSN 5340-01-277-4426 · P/N 5597754
BRACKET,ANGLE
Fits: M996, M996A1
 2 We can source it
$25–$40 eachtypical
10
Blind Rivet
NSN 5320-01-138-4239 · P/N CR3213-4-3
RIVET,BLIND 1/8
Fits: M996, M996A1
 4 165 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
