HMMWV Cover Assembly, Medical Stowage, Left and Right Hand, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 220

Every part in figure 220 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 8 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

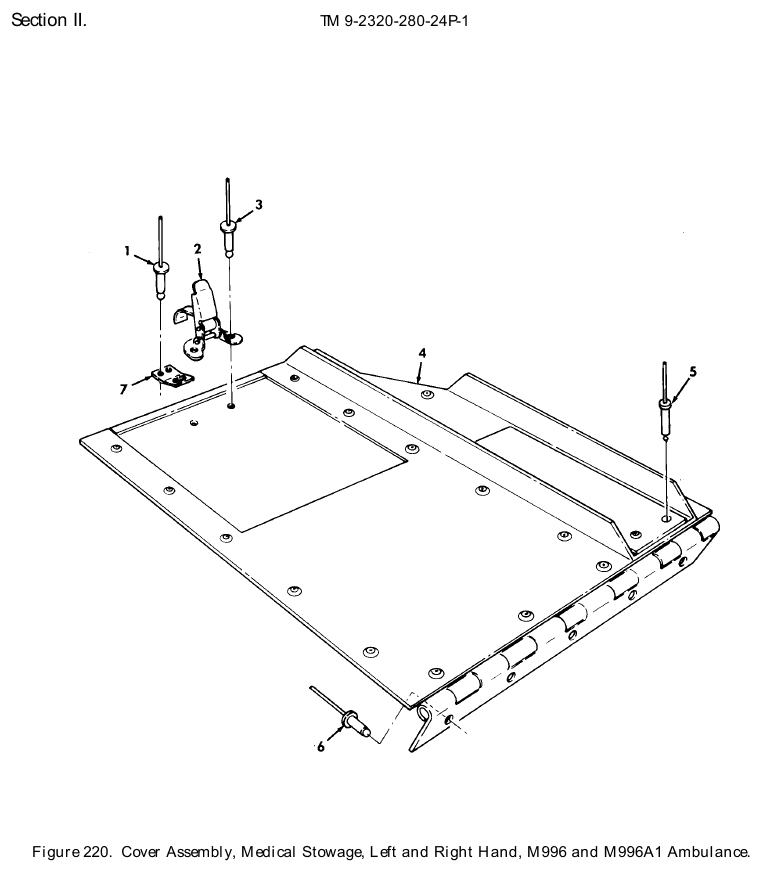

TM 9-2320-280-24P figure 220, Cover Assembly, Medical Stowage, Left and Right Hand, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-143-5079 · P/N NAS9301BNS-4-04 RIVET,BLIND 1/8 Fits: M996, M996A1	8	We can source it
2	Clamping Catch NSN 5340-01-197-1294 · P/N 20L01-1-1AF CATCH,CLAMPING Fits: M996, M996A1	2	8 in stock
3	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M996, M996A1	4	We can source it
4	Access Cover NSN 5340-01-271-9573 · P/N 5597571 COVER,ACCESS L.H Fits: M996, M996A1	1	We can source it $50–$95 eachtypical
4	Access Cover NSN 5340-01-271-9574 · P/N 5597572 COVER,ACCESS R.H Fits: M996, M996A1	1	We can source it $136.02 per eachgov't list price
5	Blind Rivet NSN 5320-01-354-2547 · P/N NAS9303B-6-03 RIVET,BLIND 3/16 Fits: M996, M996A1	2	We can source it
6	Blind Rivet NSN 5320-01-143-5075 · P/N CR3213-6-2 RIVET,BLIND 3/16 Fits: M996, M996A1	8	92 in stock
7	Catch Strike NSN 5340-01-276-3615 · P/N 5993089 STRIKE,CATCH Fits: M996, M996A1	2	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
