HMMWV Heater Access Door and Related Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 221

Every part in figure 221 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 7 lines, 0 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

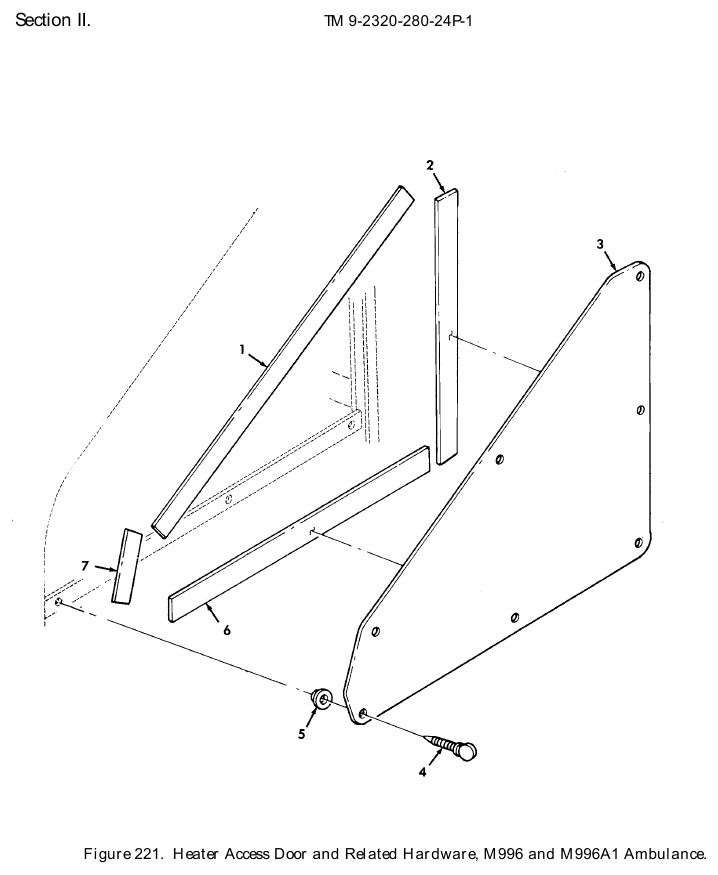

TM 9-2320-280-24P figure 221, Heater Access Door and Related Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Seal Make From Seal P/N SF5597999 SEAL MAKE FROM SEAL, P/N R-495-T, 31.28 INCHES LONG Fits: M996, M996A1	1	Ask us
2	Seal Make From Seal P/N SF5598000 SEAL MAKE FROM SEAL, P/N R-495-T, 11.56 INCHES LONG Fits: M996, M996A1	1	Ask us
3	Panel P/N 5935102 PANEL Fits: M996, M996A1	1	Ask us
4	Panel Fastener Screw NSN 5305-01-185-2211 · P/N 12-12-404-11 SCREW,PANEL FASTENE Fits: M996, M996A1	7	We can source it
5	Lock Washer NSN 5310-00-880-9344 · P/N 12-11014-12 WASHER,LOCK Fits: M996, M996A1	7	We can source it
6	Seal Make From Seal P/N SF5597997 SEAL MAKE FROM SEAL, P/N R-495-T, 33.56 INCHES LONG Fits: M996, M996A1	1	Ask us
7	Seal Make From Seal P/N SF5597998 SEAL MAKE FROM SEAL, P/N R-495-T, 4.72 INCHES LONG Fits: M996, M996A1	1	Ask us
