Catalog › Parts manuals › TM 9-2320-280-24P › Body, Cab, Hood, and Hull Assembly › Fig. 222

HMMWV A/C and Heater Compartment Panels and Seals, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 222

Every part in figure 222 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 25 lines, 4 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

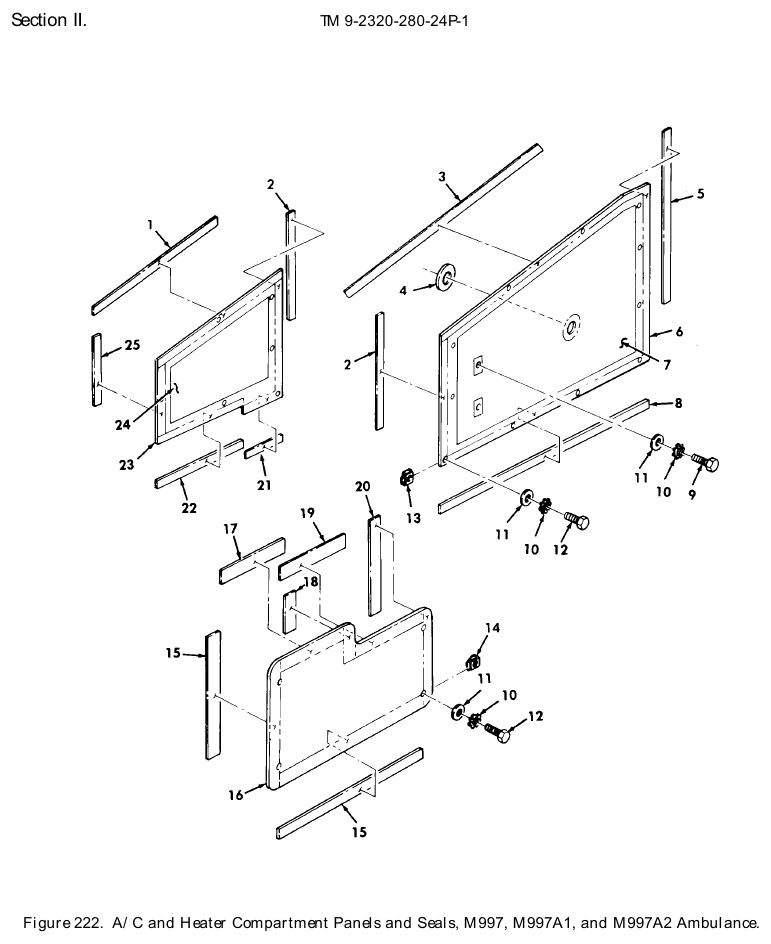

TM 9-2320-280-24P figure 222, A/C and Heater Compartment Panels and Seals, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Seal Make From Seal P/N SF5598030 SEAL MAKE FROM SEAL, P/N R-495-T, 18.92 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
2	Seal Make From Seal P/N SF5598031 SEAL MAKE FROM SEAL, P/N R-495-T, 16.66 INCHES LONG Fits: M997, M997A1, M997A2	2	Ask us
3	Seal Make From Seal P/N SF5598034 SEAL MAKE FROM SEAL, P/N R-495-T, 29.86 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
4	Gasket NSN 5330-01-272-2601 · P/N 12341617 GASKET Fits: M997, M997A1, M997A2	1	We can source it
5	Seal Make From Seal P/N SF5598036 SEAL MAKE FROM SEAL, P/N R-495-T, 24.50 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
6	Body Vehicular Panel NSN 2510-01-272-0537 · P/N 12341219 PANEL,BODY,VEHICULA Fits: M997, M997A1, M997A2	1	We can source it $143.91 per eachgov't list price
7	Insulation Blanket Side P/N 12341679 INSULATION BLANKET SIDE,R.H Fits: M997, M997A1, M997A2	1	Ask us
8	Seal Make From Seal P/N SF5598035 SEAL MAKE FROM SEAL,P/N R-495-T, 29.42 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
9	Machine Screw NSN 5305-01-255-4606 · P/N 5592900 SCREW,MACHINE #10-24 X 1/2 Fits: M997, M997A1, M997A2	6	We can source it
10	Lock Washer NSN 5310-00-080-9786 · P/N MS45904-60 WASHER,LOCK #10 Fits: M997, M997A1, M997A2	23	8 in stock
11	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M997, M997A1, M997A2	23	909 in stock
12	Machine Screw NSN 5305-00-984-6213 · P/N MS35206-266 SCREW,MACHINE #10-24 X .88 Fits: M997, M997A1, M997A2	17	2,900 in stock
13	Sheet Spring Nut NSN 5310-01-186-3483 · P/N C46021-1024A-1 NUT,SHEET SPRING #10-24 Fits: M997, M997A1, M997A2	8	We can source it
14	Sheet Spring Nut NSN 5310-01-275-1189 · P/N C596-1024-24 NUT,SHEET SPRING #10-24 Fits: M997, M997A1, M997A2	4	81 in stock
15	Seal Make From Seal P/N SF5598062 SEAL MAKE FROM SEAL,P/N R-495-T, 7.56 INCHES LONG Fits: M997, M997A1, M997A2	2	Ask us
16	Access Cover NSN 5340-01-272-9145 · P/N 12341281 COVER,ACCESS Fits: M997, M997A1, M997A2	1	We can source it $50–$100 eachtypical
17	Seal Make From Seal P/N SF5598065 SEAL MAKE FROM SEAL, P/N R-495-T, 3.72 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
18	Seal Make From Seal P/N SF5598064 SEAL MAKE FROM SEAL, P/N R-495-T, 2.50 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
19	Seal Make From Seal P/N SF5598063 SEAL MAKE FROM SEAL, P/N R-495-T, 3.28 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
20	Seal Make From Seal P/N 5598061 SEAL MAKE FROM SEAL, P/N R-495-T, 5.56 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
21	Seal Make From Seal P/N SF5598033 SEAL MAKE FROM SEAL, P/N R-495-T, 4.38 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
22	Seal Make From Seal P/N 5598032 SEAL MAKE FROM SEAL, P/N R-495-T, 13.76 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us
23	Body Vehicular Panel NSN 2510-01-270-7922 · P/N 12341218 PANEL,BODY,VEHICULA SIDE FRONT Fits: M997, M997A1, M997A2	1	We can source it $55–$105 eachtypical
24	Vehicular Insulation NSN 2540-01-274-4901 · P/N 12341429 INSULATION BLANKET, SIDE FRONT,R.H Fits: M997, M997A1, M997A2	1	We can source it $30–$70 eachtypical
25	Seal Make From Seal P/N SF5598029 SEAL MAKE FROM SEAL, P/N R-495-T, 10.62 INCHES LONG Fits: M997, M997A1, M997A2	1	Ask us

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
