HMMWV Rear Door Seals, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 223

Every part in figure 223 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 8 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

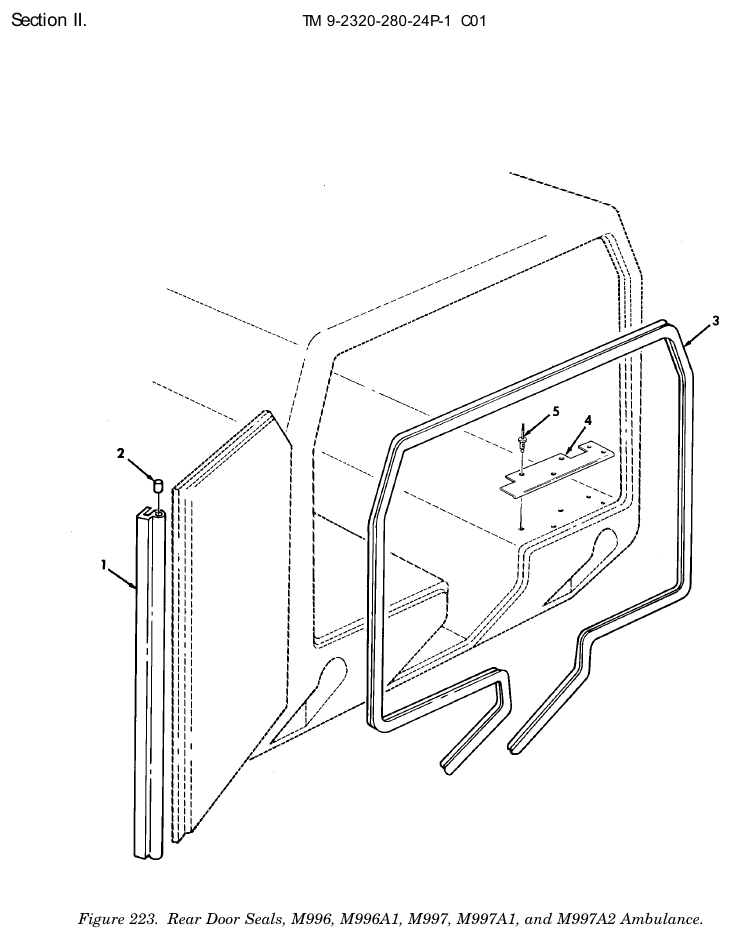

TM 9-2320-280-24P figure 223, Rear Door Seals, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Nonmetallic Special Shaped Seal NSN 5330-01-265-8947 · P/N 12341211-8 SEAL,NONMETALLIC SP 47 INCHES LONG Fits: M997, M997A1, M997A2	1	3 in stock $25–$40 eachtypical
1	Plain Seal NSN 5330-01-265-8807 · P/N 12341211-2 SEAL,PLAIN 31.44 INCHES LONG Fits: M996, M996A1	1	18 in stock $45–$85 eachtypical
2	Rubber Round Section NSN 5330-01-272-7727 · P/N 12341796 RUBBER ROUND SECTIO TOP Fits: M996, M996A1, M997, M997A1, M997A2	1	2 in stock
3	Nonmetallic Special Shaped Seal NSN 5330-01-265-8946 · P/N 12341211-9 SEAL,NONMETALLIC SP Fits: M997, M997A1, M997A2	1	2 in stock $83.99our price Buy online ↗
3	Plain Seal NSN 5330-01-265-8806 · P/N 12341211-3 SEAL,PLAIN 226.88 INCHES LONG Fits: M996, M996A1	1	21 in stock $55–$105 eachtypical
4	Seal Retainer NSN 5330-01-496-5547 · P/N 12341997-1 RETAINER,SEAL R.H Fits: M997, M997A1, M997A2	1	We can source it $35–$65 eachtypical
4	Seal Retainer NSN 5330-01-496-5548 · P/N 12341997-2 RETAINER,SEAL L.H Fits: M996, M996A1	1	We can source it $30–$65 eachtypical
5	Blind Rivet NSN 5320-01-086-1144 · P/N CR3213-6-8 RIVET,BLIND Fits: M996, M996A1, M997, M997A1, M997A2	10	We can source it

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
