Catalog › Parts manuals › TM 9-2320-280-24P › Body, Cab, Hood, and Hull Assembly › Fig. 224

HMMWV Medical Stowage Doors, Lower Heater Louver, and Related Components, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 224

Every part in figure 224 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1801 Body, Cab, Hood, and Hull Assembly: 17 lines, 5 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

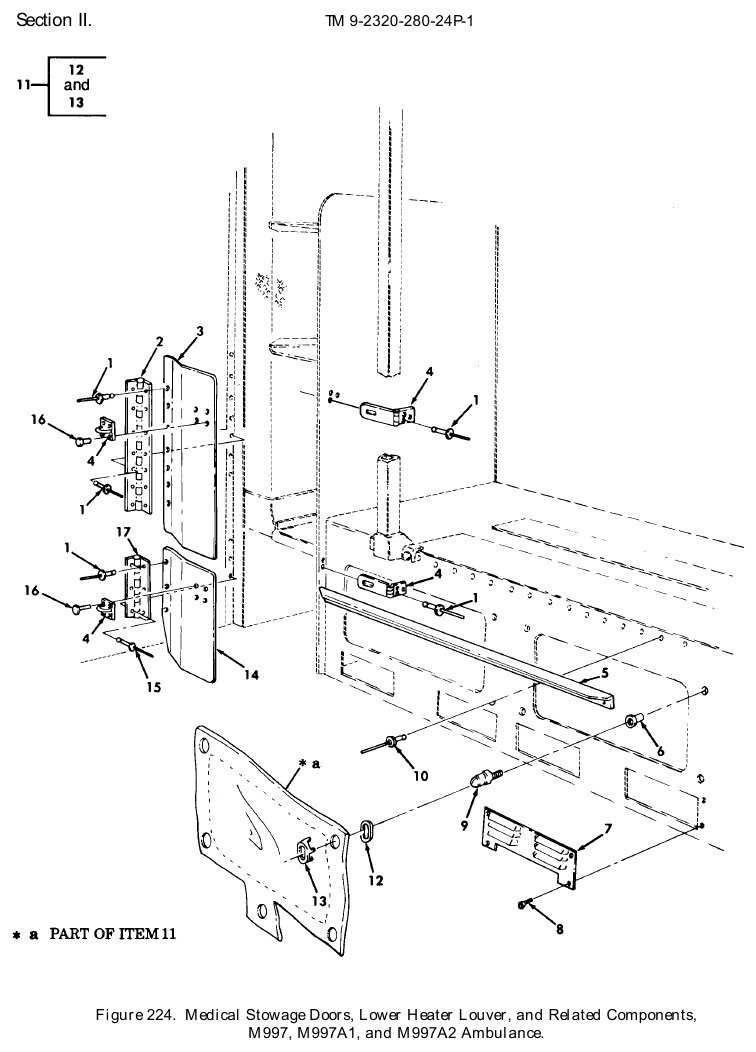

TM 9-2320-280-24P figure 224, Medical Stowage Doors, Lower Heater Louver, and Related Components, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Solid Rivet NSN 5320-01-259-6155 · P/N 5575936 RIVET,SOLID 3/16 X 7/16 Fits: M997, M997A1, M997A2	16	We can source it
2	Butt Hinge NSN 5340-01-053-7128 · P/N MS35823-7A HINGE,BUTT UPPER,R.H.,14 INCHES LONG Fits: M997, M997A1, M997A2	1	We can source it $30–$65 eachtypical
3	Body Vehicular Panel NSN 2510-01-272-0536 · P/N 12341120 PANEL,BODY,VEHICULA UPPER,R.H Fits: M997, M997A1, M997A2	1	We can source it $55–$105 eachtypical
4	Hinged Hasp NSN 5340-01-310-5321 · P/N 5589918 HASP,HINGED Fits: M997, M997A1, M997A2	2	We can source it
5	Seat Vehicular Support NSN 2540-01-276-1451 · P/N 12341113 SUPPORT,SEAT,VEHICU Fits: M997, M997A1, M997A2	2	We can source it $80–$135 eachtypical
6	Plain Blind Rivet Nut NSN 5310-01-210-7935 · P/N S10P196 NUT,PLAIN,BLIND RIV #10-32 Fits: M997, M997A1, M997A2	10	We can source it
7	Air Circulating Ventilator NSN 2540-01-276-5935 · P/N HV034186 VENTILATOR,AIR CIRC Fits: M997, M997A1, M997A2	4	638 in stock $24.49our price Buy online ↗
8	Tapping Screw NSN 5305-00-045-7603 · P/N MS24625-42 SCREW,TAPPING #10-16 X 3/8 Fits: M997, M997A1, M997A2	16	90 in stock
9	Panel Screw Assembly NSN 5305-01-282-3386 · P/N 12214139 SCREW ASSEMBLY,PANE #10-32 Fits: M997, M997A1, M997A2	10	1 in stock
10	Blind Rivet NSN 5320-01-273-4601 · P/N CR-213-6-8 RIVET,BLIND 3/16 X 1/2 Fits: M997, M997A1, M997A2	32	We can source it
11	Fitted Vehicular Body Cover NSN 2540-01-265-1137 · P/N SF5592171 COVER,FITTED,VEHICU Fits: M997, M997A1, M997A2	2	25 in stock $46.55our price Buy online ↗
12	Turnbutton Fastener Clinch Plate NSN 5325-00-371-8108 · P/N BS 78505 .CLINCH PLATE,TURNBU Fits: M997, M997A1, M997A2	5	We can source it
13	Socket NSN 5325-00-281-8642 · P/N 400 SOCKET,TURNBUTTON F Fits: M997, M997A1, M997A2	5	We can source it
14	Access Cover NSN 5340-01-266-5708 · P/N 12341119 COVER,ACCESS LOWER,R.H Fits: M997, M997A1, M997A2	1	We can source it $65–$110 eachtypical
15	Blind Rivet NSN 5320-01-084-9235 · P/N CR3213-6-5 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	10	7 in stock
16	Solid Rivet NSN 5320-00-117-7287 · P/N MS20426AD6-7 RIVET,SOLID 3/16 X 7/16 Fits: M997, M997A1, M997A2	8	We can source it
17	Butt Hinge NSN 5340-01-272-2732 · P/N 5589425 HINGE,BUTT 6 INCHES LONG Fits: M997, M997A1, M997A2	1	We can source it

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
