HMMWV Windshield Assembly, Folddown TM 9-2320-280-24P · Fig. 225

Every part in figure 225 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1802 Fenders, Running Boards with Mounting and Attaching Parts: 58 lines, 35 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

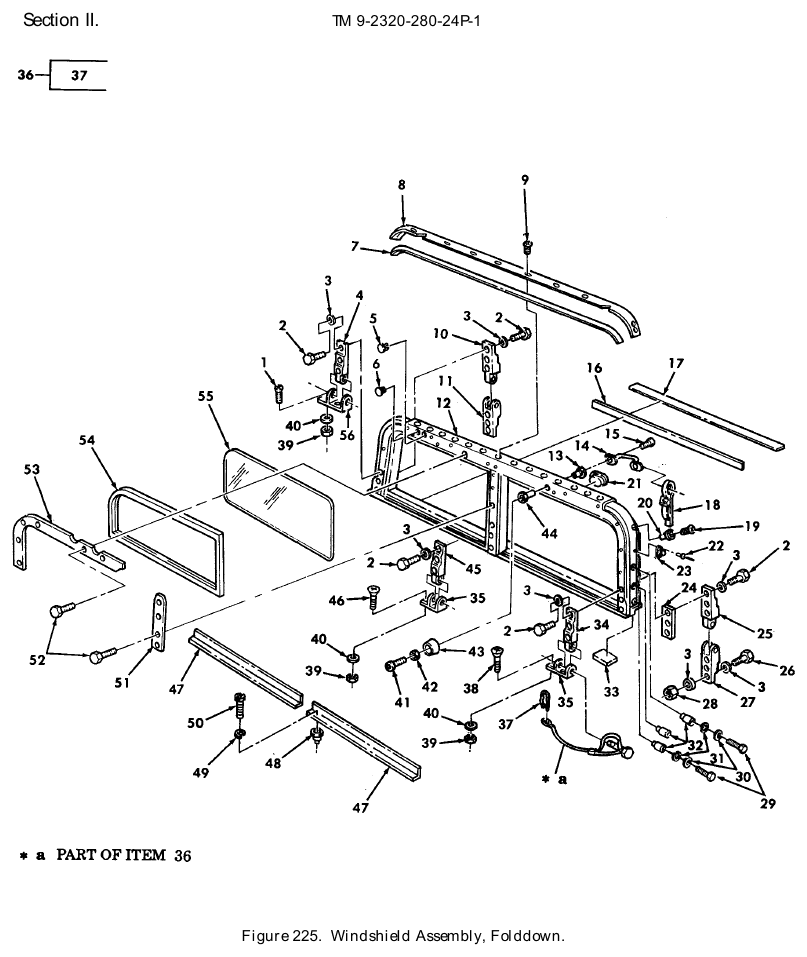

TM 9-2320-280-24P figure 225, Windshield Assembly, Folddown: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-763-7829 · P/N MS51959-99 SCREW,MACHINE 5/16-18 X 1.25 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	We can source it
2	Machine Bolt NSN 5306-00-226-4828 · P/N B1821BH031C113N BOLT,MACHINE REAR,LOWER HINGE,5/16- 18 X 1.125 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	15	84,127 in stock
3	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT REAR,LOWER HINGE,5/16 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	27	471 in stock
4	Butt Hinge Leaf NSN 5340-01-203-8608 · P/N 5585154 LEAF,BUTT HINGE FRONT R.H Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	We can source it $25–$55 eachtypical
5	Plug Button NSN 5340-01-185-4959 · P/N 207-320401-00 BUTTON,PLUG Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	4 in stock
6	Plug Button NSN 5340-01-332-7602 · P/N 12339661-1 BUTTON,PLUG Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	2,162 in stock
7	Seal Make From Tape P/N 5581366 SEAL MAKE FROM TAPE,P/N 4965,82 INCHES LONG Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	Ask us
8	Pillar Former NSN 2540-01-196-5313 · P/N 5581367 FORMER,PILLAR FRONT Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	34 in stock $75–$125 eachtypical
9	Tapping Screw NSN 5305-00-855-0957 · P/N MS24629-46 SCREW,MACHINE..#10-24 X 1/2 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	13	564 in stock
10	Butt Hinge Leaf NSN 5340-01-185-6997 · P/N 12338836-2 LEAF,BUTT HINGE R.H. FRONT Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	87 in stock $30–$60 eachtypical
11	Butt Hinge Leaf NSN 5340-01-186-7594 · P/N 12338834-2 LEAF,BUTT HINGE R.H.LOWER Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	86 in stock $30–$60 eachtypical
12	Window Vehicular Frame NSN 2510-01-413-3360 · P/N 12446879 FRAME,WINDOW,VEHICU Fits: M1035A2, M1097A2, M1123	1	We can source it $2,005.71 per eachgov't list price
12	Window Vehicular Frame NSN 2510-01-233-1141 · P/N 12339512 FRAME,WINDOW,VEHICU Fits: M998, M998A1, M1035, M1035A1, M1037, M1038 and 4 more	1	89 in stock $364.21 per eachgov't list price
13	Plain Blind Rivet Nut NSN 5310-00-269-3466 · P/N MS27130-S26 NUT,PLAIN,BLIND RIV .190-32 X .641 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	We can source it
14	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	1 in stock
15	Screw NSN 5305-01-185-0114 · P/N 157166 SCREW #10-32 X 3/4 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	We can source it
16	Make From Seal Seal Lower P/N 5596171 SEAL LOWER,MAKE FROM SEAL,P/N 68- 412121-1,81.50 INCHES LONG Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	Ask us
17	Make From Seal Seal Lower P/N SF5590706 SEAL LOWER,MAKE FROM SEAL,P/N 68- 412121-1,80.50 INCHES LONG Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	Ask us
18	Webbing Strap NSN 5340-01-185-7024 · P/N 12338845 STRAP,WEBBING Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	187 in stock $17.53our price Buy online ↗
19	Machine Screw NSN 5305-01-185-8647 · P/N 160057 SCREW,MACHINE #10-32 X 3/4 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	17	288 in stock
20	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N 12339998-14 NUT,PLAIN,BLIND RIV #10-32 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	17	We can source it
21	Protective Dust and Moi Cap-Plug NSN 5340-01-188-1018 · P/N 12338829 CAP-PLUG,PROTECTIVE Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	78 in stock
22	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1-A404 RIVET,BLIND .125,.188,.250 GRIP Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	132 in stock
23	Turnbutton Fastener Stud NSN 5325-00-823-5999 · P/N XB78323-05001 STUD,TURNBUTTON FAS Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	22 in stock
24	Plate Spacer NSN 5365-01-213-4239 · P/N 5585178 SPACER,PLATE Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	7	32 in stock
25	Butt Hinge Leaf NSN 5340-01-186-7593 · P/N 12338836-1 LEAF,BUTT HINGE L.H. FRONT AND R.H. REAR Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	We can source it $25–$45 eachtypical
26	Machine Bolt NSN 5306-00-226-4829 · P/N B1821BH031C125N BOLT,MACHINE REAR,LOWER HINGE,5/16- 18 X 1 1/4 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	74 in stock
27	Butt Hinge Leaf NSN 5340-01-185-6998 · P/N 12338834-1 LEAF,BUTT HINGE L.H.,LOWER Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	85 in stock $25–$50 eachtypical
28	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE REAR,LOWER,5/ 16-18 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	354 in stock
29	Machine Bolt NSN 5306-00-226-4827 · P/N B1821BH031C100N BOLT,MACHINE 5/16-18 X 1.00 Fits: M1035A2, M1097A2, M1123	2	292 in stock
30	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M1035A2, M1097A2, M1123	2	1,368 in stock
31	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: M1035A2, M1097A2, M1123	2	2,036 in stock
32	Plain Blind Rivet Nut NSN 5310-01-413-3276 · P/N ALS4-518-150 NUT,PLAIN,BLIND RIV Fits: M1035A2, M1097A2, M1123	5	269 in stock
33	Make From Seal Seal Lower P/N 5596172 SEAL LOWER,MAKE FROM SEAL,P/N 68- 412121-1,2.88 INCHES LONG Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	Ask us
34	Windshield Hinge NSN 2510-01-198-7413 · P/N 12338841-1 HINGE,WINDSHIELD UPPER,L.H Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	12 in stock $30–$60 eachtypical
35	Hinge NSN 5342-01-186-7382 · P/N 12338822-1 HINGE Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	We can source it
36	Straight Headed Pin NSN 5315-01-205-2988 · P/N 12338813 PIN,STRAIGHT,HEADED Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	5	2,781 in stock $14.59our price Buy online ↗
37	Pin NSN 5315-01-188-4490 · P/N 34403-35-1 PIN Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	We can source it
38	Machine Screw NSN 5305-01-477-2824 · P/N 156471 SCREW,MACHINE Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	We can source it
39	Plain Hexagon Nut NSN 5310-01-209-7702 · P/N 9429048 NUT,PLAIN,HEXAGON Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	We can source it
40	Lock Washer NSN 5310-01-199-3440 · P/N 9424258 WASHER,LOCK Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	6	We can source it
41	Cap Hexagon Head Screw NSN 5305-00-071-2510 · P/N B1821BH025C175N SCREW,CAP,HEXAGON H 1/4-20 X 1-3/4 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	We can source it
42	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	2,325 in stock
43	Bumper NSN 5340-01-185-0404 · P/N 12338824 BUMPER,NONMETALLIC Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	214 in stock $13.50our price Buy online ↗
44	Plain Blind Rivet Nut NSN 5310-00-006-8291 · P/N MS27130-S32 NUT,PLAIN,BLIND RIV .3125-18 X .937 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	9 in stock
45	Butt Hinge Leaf NSN 5340-01-185-0401 · P/N 12338835 LEAF,BUTT HINGE Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	We can source it $25–$45 eachtypical
46	Machine Screw NSN 5305-00-958-5253 · P/N MS35190-306 SCREW,MACHINE 5/16-18 X 1.00 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1038 and 5 more	2	We can source it
46	Machine Screw NSN 5305-00-958-5469 · P/N MS35190-305 SCREW,MACHINE Fits: M1037, M1042	2	We can source it
47	Window Vehicular Frame NSN 2510-01-411-0652 · P/N 12447029 FRAME,WINDOW,VEHICU Fits: M1035A2, M1097A2, M1123	2	We can source it
48	Screw Thread Insert NSN 5325-01-411-0066 · P/N ALS4-1024-130 INSERT,SCREW THREAD Fits: M1035A2, M1097A2, M1123	8	1,125 in stock
49	Lock Washer NSN 5310-00-922-2017 · P/N 120217 WASHER,LOCK Fits: M1035A2, M1097A2, M1123	8	We can source it
50	Machine Screw NSN 5305-00-240-0194 · P/N MS51849-76 SCREW,MACHINE #10-24 X 3/4 Fits: M1035A2, M1097A2, M1123	8	287 in stock
51	Metal Molding NSN 2590-01-188-3225 · P/N 12338843 MOLDING,METAL Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	748 in stock $15.00our price Buy online ↗
52	Tapping Screw NSN 5305-01-361-5353 · P/N 9414241 SCREW,TAPPING Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	16	40 in stock
53	Metal Molding NSN 2590-01-189-1067 · P/N 12338852 MOLDING,METAL Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	7 in stock $40–$80 eachtypical
54	Nonmetallic Strip Seal NSN 5330-01-209-5997 · P/N 12338860 SEAL,NONMETALLIC ST Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	133 in stock $59.99our price Buy online ↗
55	Laminated Glass NSN 9340-01-185-3757 · P/N 12339514 GLASS,LAMINATED Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	74 in stock $171.50our price Buy online ↗
56	Wind Shield Hinge NSN 5342-01-185-0116 · P/N 12338822-2 HINGE,WIND SHIELD R.H.,LOWER Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	We can source it $25–$45 eachtypical
