HMMWV Commanders Seat, Drivers Seat, and Related Parts TM 9-2320-280-24P · Fig. 231

Every part in figure 231 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1806 Upholstery Seats and Carpet: 31 lines, 21 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

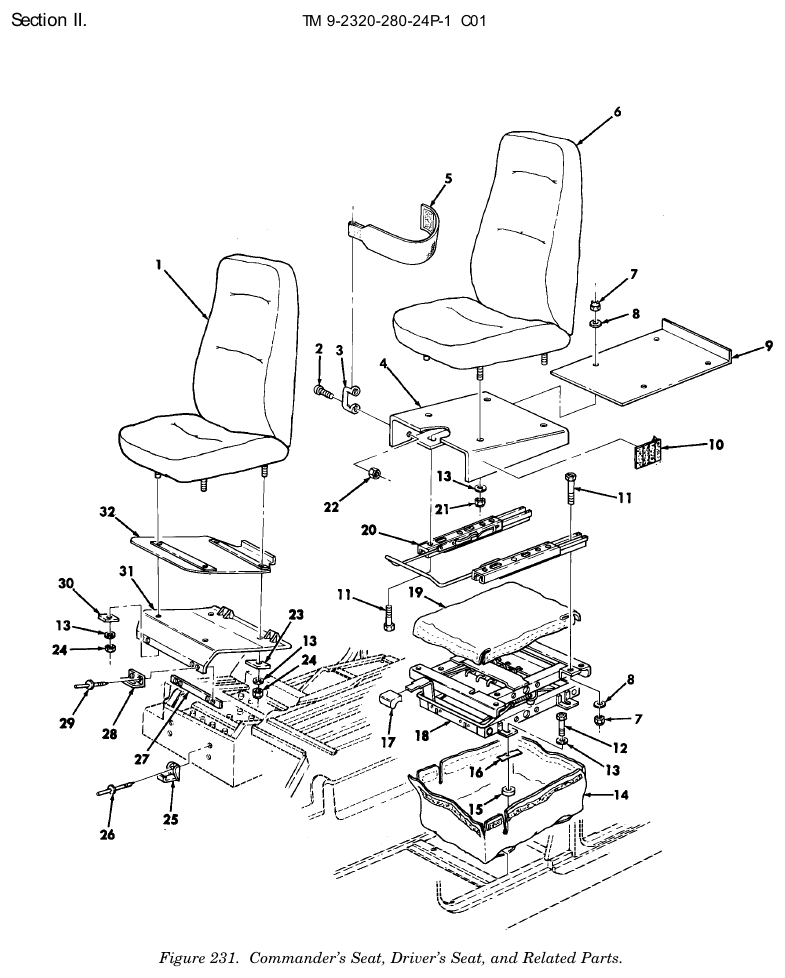

TM 9-2320-280-24P figure 231, Commanders Seat, Drivers Seat, and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Vehicular Seat NSN 2540-01-381-8392 · P/N 8.6046 SEAT,VEHICULAR COMMANDER'S Fits: All A1 and A2 models, plus M1123	1	56 in stock $534.76 per eachgov't list price
2	Machine Screw NSN 5305-01-381-2305 · P/N 157125 SCREW,MACHINE #10-32 X .62 Fits: All A1 and A2 models, plus M1123	2	We can source it
3	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: All A1 and A2 models, plus M1123	1	1 in stock
4	Vehicular Seat NSN 2540-01-383-5660 · P/N 12343053 SEAT,VEHICULAR Fits: All A1 and A2 models, plus M1123	1	We can source it $70–$115 eachtypical
5	Webbing Strap NSN 5340-01-387-0090 · P/N 12446724 STRAP,WEBBING Fits: All A1 and A2 models, plus M1123	1	We can source it $25–$40 eachtypical
6	Vehicular Seat NSN 2540-01-436-4175 · P/N 8.6272-01 SEAT,VEHICULAR DRIVER'S Fits: All A1 and A2 models, plus M1123	1	63 in stock $459.13 per eachgov't list price
7	Self-Locking Cone Seat Hexag Nut NSN 5310-01-119-3668 · P/N 9422295 NUT,SELF-LOCKING,CO .312-20 Fits: All A1 and A2 models, plus M1123	8	15 in stock
8	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: All A1 and A2 models, plus M1123	8	471 in stock
9	Seat Vehicular Support NSN 2540-01-447-3457 · P/N 12446709 SUPPORT,SEAT,VEHICU Fits: All A1 and A2 models, plus M1123	1	4 in stock $25–$55 eachtypical
10	Tape Make From Fastener Fastener P/N 12331924-6 FASTENER,TAPE MAKE FROM FASTENER, TAPE,P/N 20197272,2 INCHES LONG Fits: All A1 and A2 models, plus M1123	1	Ask us
11	Cap Socket Head Screw NSN 5305-01-381-2296 · P/N 9421705 SCREW,CAP,SOCKET HE 5/16-18 X 3/4 Fits: All A1 and A2 models, plus M1123	8	8 in stock
12	Machine Bolt NSN 5306-00-226-4826 · P/N B1821BH031C088N BOLT,MACHINE Fits: All A1 and A2 models, plus M1123	4	188 in stock
13	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK Fits: All A1 and A2 models, plus M1123	12	2,036 in stock
14	Seat Vehicular Cover NSN 2540-01-475-3102 · P/N 12460212 COVER,SEAT VEHICULA Fits: All A1 and A2 models, plus M1123	1	We can source it $40–$80 eachtypical
15	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 P/N 12339376-1,LENGTH AS NEEDED Fits: All A1 and A2 models, plus M1123	4	471 in stock
17	Knob NSN 5355-01-481-5517 · P/N 34068-02 KNOB Fits: All A1 and A2 models, plus M1123	1	We can source it
18	Vehicular Seat Adjuster NSN 2540-01-381-8988 · P/N 12446714 ADJUSTER,VEHICULAR Fits: All A1 and A2 models, plus M1123	1	101 in stock $462.66 per eachgov't list price
19	Pouch Magazine NSN 8465-01-465-2079 · P/N 12446747 COVER,SEAT,VEHICULA Fits: All A2 models except M997A2, M1097A2, plus M966A1, M998A1, M1026A1, M1035A1, M1045A1, M1097A1 and 1 more	1	We can source it
20	Vehicular Seat Adjuster NSN 2540-01-381-9331 · P/N 0.1581 ADJUSTER,VEHICULAR Fits: All A1 and A2 models, plus M1123	1	7 in stock $158.74 per eachgov't list price
21	Plain Hexagon Nut NSN 5310-01-209-7702 · P/N 9429048 NUT,PLAIN,HEXAGON 5/16-18 Fits: All A1 and A2 models, plus M1123	4	We can source it
22	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: All A1 and A2 models, plus M1123	2	474 in stock
23	Tapered Spacer NSN 5365-01-380-7340 · P/N 12446735 SPACER,TAPERED Fits: All A1 and A2 models, plus M1123	2	2 in stock
24	Plain Hexagon Nut NSN 5310-01-381-5328 · P/N 9413583 NUT,PLAIN,HEXAGON 5/16-18 Fits: All A1 and A2 models, plus M1123	4	We can source it
25	Clamping Catch NSN 5340-01-197-1294 · P/N 20L01-1-1AF CATCH,CLAMPING Fits: All A1 and A2 models, plus M1123	2	8 in stock
26	Blind Rivet NSN 5320-01-254-4251 · P/N 5593050 RIVET,BLIND 3/16 DIA Fits: All A1 and A2 models, plus M1123	4	62 in stock
27	Metal Molding NSN 2590-01-261-5485 · P/N 5591553 MOLDING,METAL Fits: All A1 and A2 models, plus M1123	1	7 in stock
28	Catch Strike NSN 5340-01-087-4612 · P/N 20L02-1-1AA STRIKE,CATCH Fits: All A1 and A2 models, plus M1123	2	2 in stock
29	Blind Rivet NSN 5320-01-220-0596 · P/N CR-213-4-4 RIVET,BLIND 1/8 DIA Fits: All A1 and A2 models, plus M1123	4	We can source it
30	Tapered Spacer NSN 5365-01-382-1178 · P/N 12446736 SPACER,TAPERED Fits: All A1 and A2 models, plus M1123	2	22 in stock
31	Battery Box Cover NSN 6160-01-384-3922 · P/N 12343059 COVER,BATTERY BOX Fits: All A1 and A2 models, plus M1123	1	9 in stock $262.33 per eachgov't list price
32	Battery Box Cover NSN 6160-01-384-0325 · P/N 12446737 COVER,BATTERY BOX Fits: All A1 and A2 models, plus M1123	1	3 in stock $135.68 per eachgov't list price

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
