HMMWV Protective Padding on “B” Pillar For Non-Armored Vehicles TM 9-2320-280-24P · Fig. 232

Every part in figure 232 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1806 Upholstery Seats and Carpet: 5 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

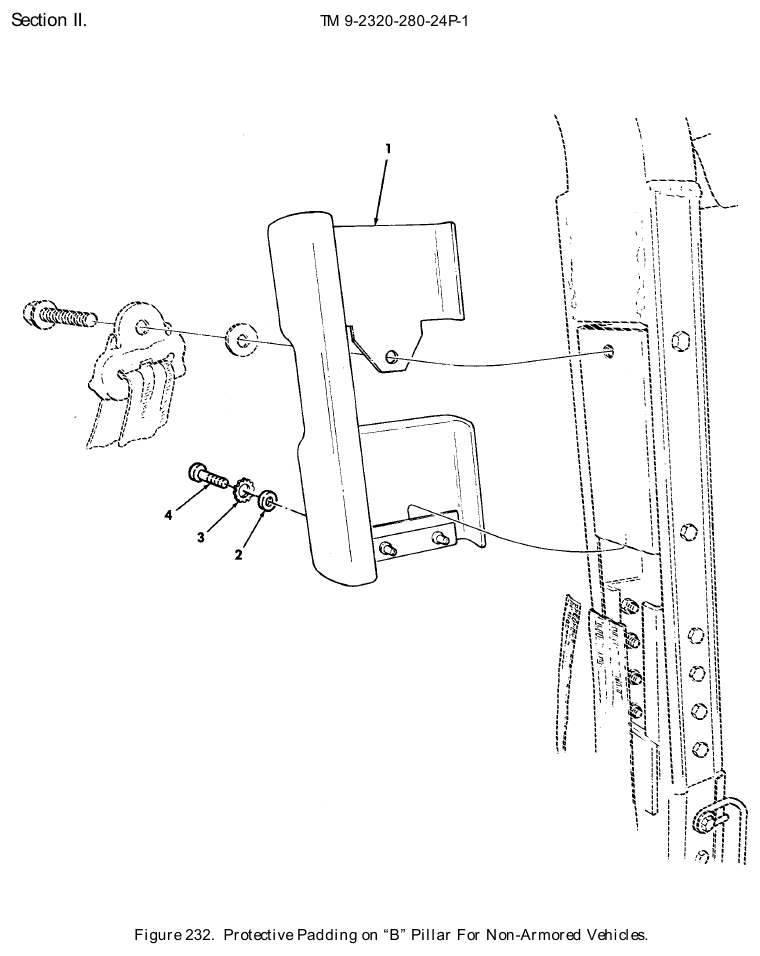

TM 9-2320-280-24P figure 232, Protective Padding on “B” Pillar For Non-Armored Vehicles: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cushioning Pad NSN 2590-01-396-1422 · P/N 12342954 PAD,CUSHIONING B PILLAR,R.H Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	192 in stock $48.41our price Buy online ↗
1	Cushioning Pad NSN 2590-01-396-1424 · P/N 12342955 PAD,CUSHIONING B PILLAR,L.H Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	1	49 in stock $30–$70 eachtypical
2	Flat Washer NSN 5310-00-012-0391 · P/N 120391 WASHER,FLAT #10 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	We can source it
3	Lock Washer NSN 5310-01-462-2175 · P/N 138482 WASHER,LOCK #10-32 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	We can source it
4	Machine Screw NSN 5305-01-185-8647 · P/N 160057 SCREW,MACHINE #10-32 X 3/4 Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	4	288 in stock

Buy the 1 in-stock part on our store ↗
