HMMWV Protective Padding On “B” Pillar Cover For Armored Vehicles TM 9-2320-280-24P · Fig. 233

Every part in figure 233 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1806 Upholstery Seats and Carpet: 11 lines, 9 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

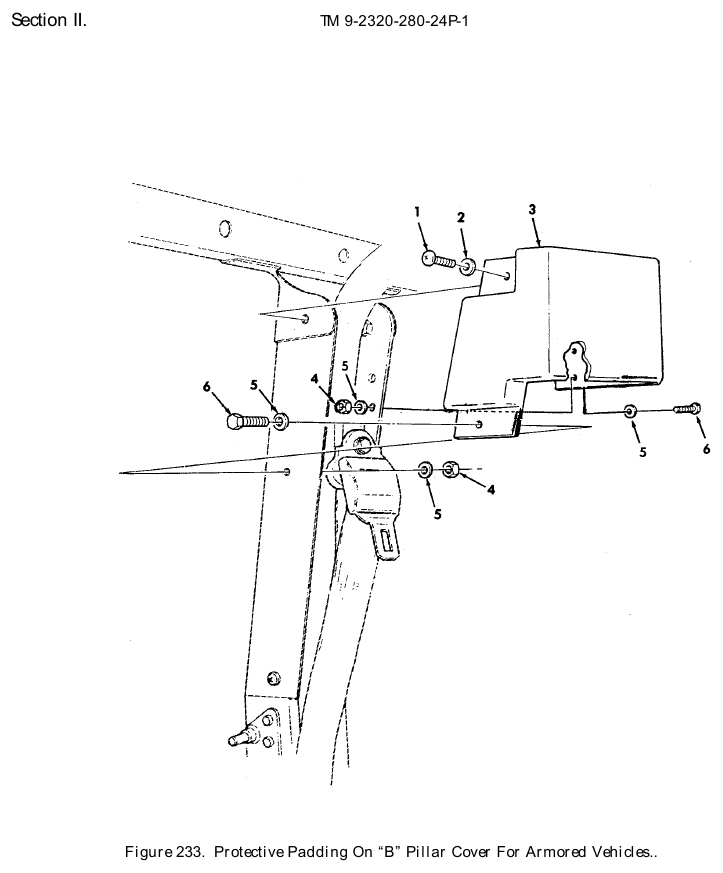

TM 9-2320-280-24P figure 233, Protective Padding On “B” Pillar Cover For Armored Vehicles: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-984-5678 · P/N MS35206-298 SCREW,MACHINE 5/16 X 1.00 Fits: All A2 models except M997A2, M1035A2, plus M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 10 more	2	We can source it
2	Flat Washer NSN 5310-00-809-3078 · P/N MS27183-11 WASHER,FLAT 5/16 Fits: All A2 models except M997A2, M1035A2, plus M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 10 more	2	52 in stock
3	Cushioning Pad NSN 2590-01-394-9673 · P/N 12446741 PAD,CUSHIONING RIGHT Fits: All A2 models except M997A2, M1035A2, plus M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 10 more	1	2 in stock $40–$75 eachtypical
3	Cushioning Pad NSN 2590-01-396-5007 · P/N 12446739 PAD,CUSHIONING LEFT Fits: All A2 models except M997A2, M1035A2, plus M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 10 more	1	17 in stock $40–$80 eachtypical
4	Self-Locking Hexagon Nut NSN 5310-01-066-6759 · P/N 21NE-040 NUT,SELF-LOCKING,HE 1/4-20 (TOW CARRIER) Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	84 in stock
4	Self-Locking Hexagon Nut NSN 5310-01-066-6759 · P/N 21NE-040 NUT,SELF-LOCKING,HE 1/4-20 (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	3	84 in stock
5	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 (TOW CARRIER) Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	12	351 in stock
5	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	6	351 in stock
6	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 0.75 (TOW CARRIER) Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	248 in stock
6	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 0.75 (ARMY) Fits: M1025, M1025A1, M1025A2, M1026, M1026A1	3	248 in stock
7	Automotive Trim Bezel NSN 2590-01-460-8320 · P/N 12340103-3 BEZEL,AUTOMOTIVE TR LEFT 11.13 INCHES LONG Fits: All A2 models except M997A2, M1035A2, plus M966, M966A1, M1025, M1025A1, M1026, M1026A1 and 10 more	2	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
