HMMWV Front Seatbelts, Brackets, and Mounting Hardware TM 9-2320-280-24P · Fig. 234

Every part in figure 234 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1806 Upholstery Seats and Carpet: 24 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

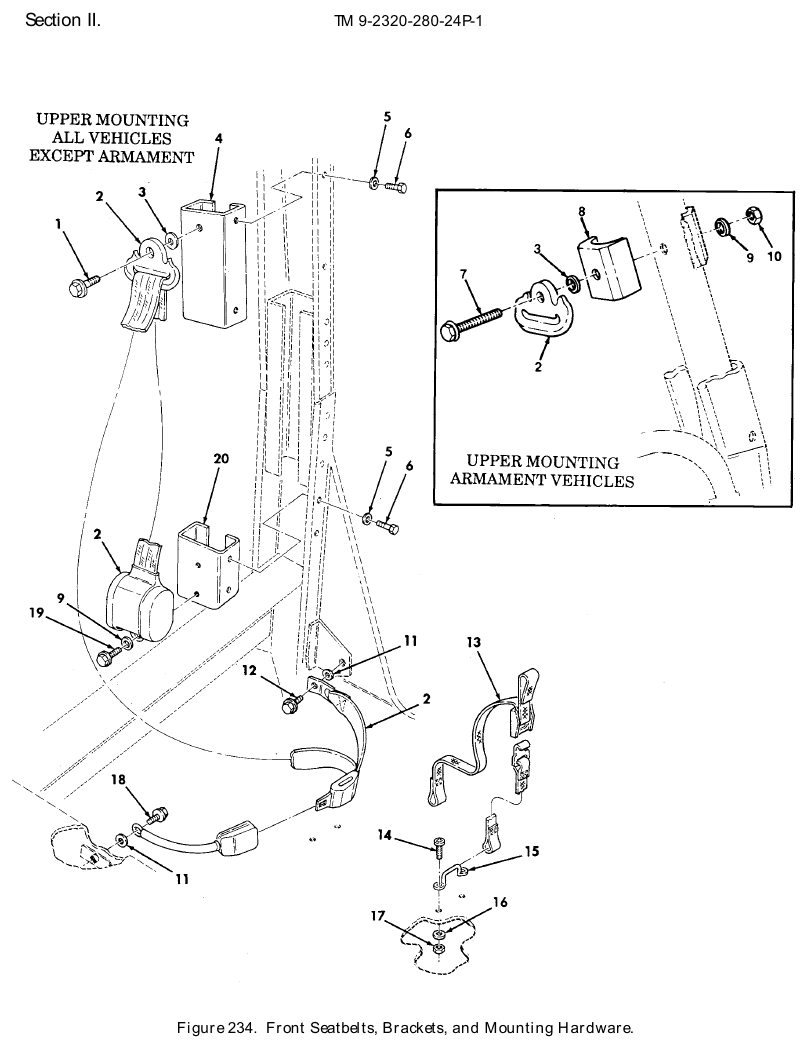

TM 9-2320-280-24P figure 234, Front Seatbelts, Brackets, and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Shoulder Bolt NSN 5306-01-316-2433 · P/N 12340259-7 BOLT,SHOULDER SEAT BELT,7/16-20 X 1.00,USBL EFF 100,000 AND ABOVE Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	62 in stock
2	Vehicular Safety Belt NSN 2540-01-315-3358 · P/N E19250-00 BELT,VEHICULAR SAFE DRIVER,USBL EFF 100,000 AND ABOVE Fits: All models	1	We can source it
2	Vehicular Safety Belt NSN 2540-01-315-3143 · P/N F07011 BELT,VEHICULAR SAFE COMMANDER,USBL EFF 100,000 AND ABOVE Fits: All models	1	11 in stock
3	Flat Washer NSN 5310-01-286-6077 · P/N 12341856 WASHER,FLAT 7/16 Fits: All models	2	76 in stock
4	Vehicular Components Bracket NSN 2590-01-394-9672 · P/N 12342683 BRACKET,VEHICULAR C USBL EFF 100, 000 AND ABOVE Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	2	295 in stock $120.47 per eachgov't list price
5	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT USBL EFF 100,000 AND ABOVE Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1037 and 7 more	16	471 in stock
5	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	471 in stock
6	Cap Hexagon Head Screw NSN 5306-00-226-4825 · P/N B1821BH031C075N BOLT,MACHINE 5/16-18 X .75,USBL EFF 100,000 AND ABOVE Fits: M998, M1035, M1035A1, M1035A2, M1037, M1038 and 6 more	16	761 in stock
6	Cap Hexagon Head Screw NSN 5306-00-226-4825 · P/N B1821BH031C075N BOLT,MACHINE 5/16-18 X .75,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	761 in stock
7	Shoulder Bolt NSN 5306-01-315-7088 · P/N 12340259-4 BOLT,SHOULDER ROLLBAR BRACKET,7/16- 20 X .47,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	23 in stock
8	Retaining Strap NSN 5340-01-333-5851 · P/N 12342381 STRAP,RETAINING USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
9	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16,USBL EFF 100,000 AND ABOVE Fits: M998, M1035, M1035A1, M1035A2, M1037, M1038 and 6 more	2	170 in stock
9	Flat Washer NSN 5310-00-809-4085 · P/N MS27183-16 WASHER,FLAT 7/16,USBL EFF 100,000 AND ABOVE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	170 in stock
10	Self-Locking Hexagon Nut NSN 5310-01-315-3403 · P/N 9442938 NUT,SELF-LOCKING,HE ROLLBAR BRACKET,7/16-20,USBL EFF 100,000 AND ABOVE Fits: M966A1, M998, M998A1, M1035, M1035A1, M1035A2 and 8 more	2	We can source it
11	Flat Washer NSN 5310-01-253-8437 · P/N 12340058 WASHER,FLAT 7/16,USBL EFF 100,000 AND ABOVE Fits: All models	4	We can source it
12	Shoulder Bolt NSN 5306-01-316-1456 · P/N 12340259-6 BOLT,SHOULDER USBL EFF 100,000 AND ABOVE Fits: All models	2	4,827 in stock
13	Webbing Strap NSN 5340-01-264-5833 · P/N 45410-20 STRAP,WEBBING Fits: M1035A2, M1097A2, M1123	1	189 in stock $25–$50 eachtypical
14	Screw NSN 5305-01-185-0114 · P/N 157166 SCREW #10-32 X 3/4 Fits: M1035A2, M1097A2, M1123	4	We can source it
15	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1035A2, M1097A2, M1123	2	1 in stock
16	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT 3/4 Fits: M1035A2, M1097A2, M1123	4	We can source it
17	Lock Nut NSN 5310-00-251-4503 · P/N 9411893 NUT,LOCK Fits: M1035A2, M1097A2, M1123	4	40 in stock
18	Shoulder Bolt NSN 5306-01-437-8056 · P/N 12340259-11 BOLT,SHOULDER FOR REPAIR ONLY,USE WITH ITEMS 10 AND 11,7/16-20X 1.47USBL EFF 100,000 AND ABOVE Fits: All models	2	121 in stock
19	Cap Hexagon Head Screw NSN 5305-00-709-8283 · P/N MS90727-84 SCREW,CAP,HEXAGON H 7/16-20 X 3/4, USBL EFF 100,000 AND ABOVE Fits: All models	2	We can source it
20	Double Angle Bracket NSN 5340-01-334-4241 · P/N 12342372 BRACKET,DOUBLE ANGL USBL EFF 100, 000 AND ABOVE Fits: All models	2	16 in stock $35–$70 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
