HMMWV Seats and Belts, Rear TM 9-2320-280-24P · Fig. 235

Every part in figure 235 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1806 Upholstery Seats and Carpet: 20 lines, 16 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

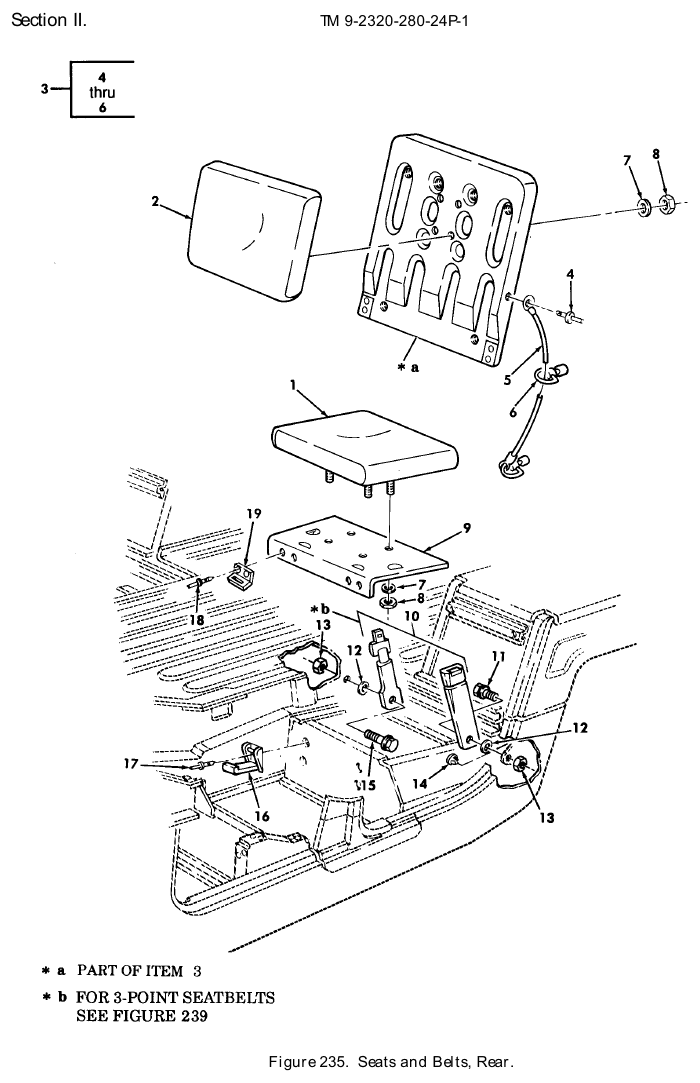

TM 9-2320-280-24P figure 235, Seats and Belts, Rear: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Seat Vehicular Cushion NSN 2540-01-314-7834 · P/N 12342068 CUSHION,SEAT,VEHICU Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	1	461 in stock $40.00our price Buy online ↗
2	Seat Back Vehicular Cushion NSN 2540-01-314-9378 · P/N 2540V0751 CUSHION,SEAT BACK,V Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	2	388 in stock $40.00our price Buy online ↗
3	Seat Vehicular Frame NSN 2540-01-188-3229 · P/N 12340051 FRAME,SEAT,VEHICULA Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	2	76 in stock $700.63 per eachgov't list price
4	Blind Rivet NSN 5320-01-138-4239 · P/N CR3213-4-3 RIVET,BLIND 1/8 DIA Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	1	165 in stock
5	Cable and Stud NSN 2590-01-253-3905 · P/N 12339420-1 CABLE AND STUD Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	1	52 in stock $40–$75 eachtypical
6	Turnlock Fastener Stud NSN 5325-01-255-1126 · P/N BJR7-90 STUD,TURNLOCK FASTE Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	1	We can source it $25–$40 eachtypical
7	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	16	1,368 in stock
8	Plain Hexagon Nut NSN 5310-00-880-7744 · P/N MS51967-5 NUT,PLAIN,HEXAGON 5/16-18 Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	16	1,817 in stock
9	Seat Vehicular Support NSN 2540-01-188-3675 · P/N 12339047-1 SUPPORT,SEAT,VEHICU L.H Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	1	29 in stock $65–$105 eachtypical
9	Seat Vehicular Support NSN 2540-01-185-4387 · P/N 12339047-2 SUPPORT,SEAT,VEHICU R.H Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 16 more	1	81 in stock $100–$165 eachtypical
10	Vehicular Safety Belt NSN 2540-01-203-0183 · P/N E06879-00 BELT,VEHICULAR SAFE REAR,USBL EFF 1 THRU 99,999 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	2	2,619 in stock $30–$65 eachtypical
11	Shoulder Bolt NSN 5306-01-449-0510 · P/N 12340259-12 BOLT,SHOULDER FOR REPAIR ONLY,USE WITH ITEMS 12 AND 19,7/16-20X1.01 USBL FEE 1 THRU 99,999 Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	2	1,076 in stock $1,874.16 per eachgov't list price
12	Flat Washer NSN 5310-01-253-8437 · P/N 12340058 WASHER,FLAT USBL EFF 1 THRU 99,999 Fits: M966, M998, M1025, M1026, M1038, M1043 and 4 more	4	We can source it
13	Self-Locking Hexagon Nut NSN 5310-01-315-3403 · P/N 9442938 NUT,SELF-LOCKING,HE 7/16-20 Fits: M966, M1025, M1026, M1043, M1044, M1045 and 1 more	4	We can source it
14	Protective Dust and Moi Cap-Plug NSN 5340-01-242-6245 · P/N W-4 CAP-PLUG,PROTECTIVE Fits: M996, M997, M1037, M1042	2	95 in stock
15	Shoulder Bolt NSN 5306-01-450-5947 · P/N 12340259-10 BOLT,SHOULDER FOR REPAIR ONLY,USE WITH ITEMS 12 AND 19 7/16-20X1.31 Fits: M966, M998, M1025, M1026, M1035, M1038 and 5 more	2	We can source it $65–$115 eachtypical
16	Clamping Catch NSN 5340-01-197-1294 · P/N 20L01-1-1AF CATCH,CLAMPING Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	4	8 in stock
17	Blind Rivet NSN 5320-01-254-4251 · P/N 5593050 RIVET,BLIND 3/16 DIA Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	8	62 in stock
18	Blind Rivet NSN 5320-01-138-4239 · P/N CR3213-4-3 RIVET,BLIND 1/8 DIA Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	8	165 in stock
19	Catch Strike NSN 5340-01-087-4612 · P/N 20L02-1-1AA STRIKE,CATCH Fits: M966, M966A1, M998, M998A1, M1025, M1025A2 and 14 more	4	2 in stock

Buy the 2 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
