HMMWV Seat Cushions and Mounting Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 236

Every part in figure 236 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1806 Upholstery Seats and Carpet: 7 lines, 6 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

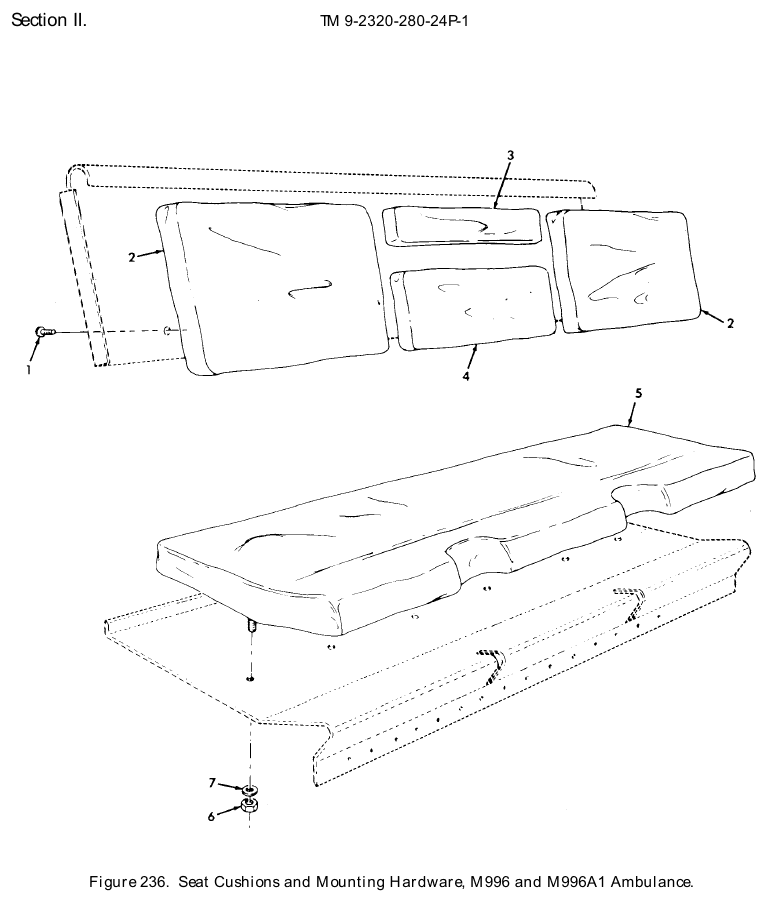

TM 9-2320-280-24P figure 236, Seat Cushions and Mounting Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X 5/8 Fits: M996, M996A1	24	4 in stock
2	Seat Vehicular Cushion NSN 2540-01-271-3828 · P/N 12341450 CUSHION,SEAT,BACK V Fits: M996, M996A1	4	14 in stock $65.99our price Buy online ↗
3	Seat Back Vehicular Cushion NSN 2540-01-270-6537 · P/N 12341451 CUSHION,SEAT BACK,V REAR SEAT BACK, CENTER,UPPER Fits: M996, M996A1	2	We can source it $50–$85 eachtypical
4	Seat Back Vehicular Cushion NSN 2540-01-270-6538 · P/N 12341452 CUSHION,SEAT BACK,V Fits: M996, M996A1	2	4 in stock $65–$110 eachtypical
5	Seat Back Vehicular Cushion NSN 2540-01-270-6539 · P/N 12341555 CUSHION,SEAT VEHICU Fits: M996, M996A1	2	3 in stock $142.11 per eachgov't list price
6	Plain Hexagon Nut NSN 5310-00-880-7744 · P/N MS51967-5 NUT,PLAIN,HEXAGON 5/16 X 18 Fits: M996, M996A1	24	1,817 in stock
7	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M996, M996A1	24	1,368 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
