HMMWV Seat Frame Assembly and Related Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 237

Every part in figure 237 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1806 Upholstery Seats and Carpet: 19 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

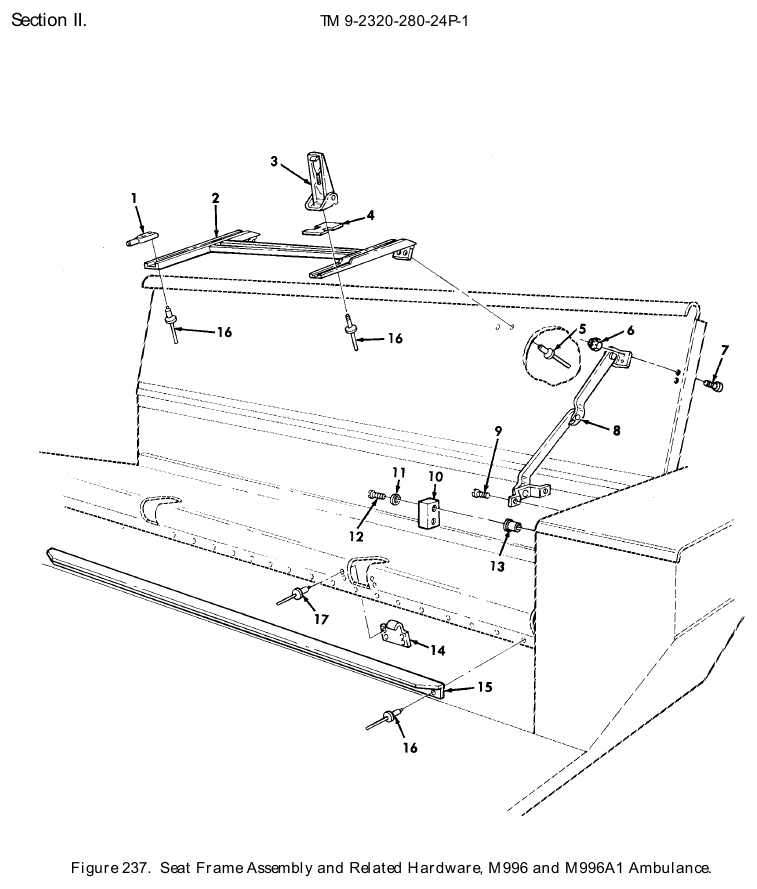

TM 9-2320-280-24P figure 237, Seat Frame Assembly and Related Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Catch Strike NSN 5340-01-276-3615 · P/N 12339011 STRIKER,LATCH REAR Fits: M996, M996A1	4	We can source it
2	Seat Vehicular Frame NSN 2540-01-270-6540 · P/N 12341206 FRAME,SEAT,VEHICULA R.H Fits: M996, M996A1	1	We can source it $100.46 per assemblygov't list price
2	Seat Vehicular Frame NSN 2540-01-270-6541 · P/N 12341205 FRAME,SEAT,VEHICULA L.H Fits: M996, M996A1	1	43 in stock $106.79our price Buy online ↗
3	Latch NSN 5342-01-036-0649 · P/N 51L3-1-1-AA LATCH REAR Fits: M996, M996A1	4	We can source it $108.72 per eachgov't list price
4	Plate Spacer NSN 5365-01-272-4866 · P/N 12341324 SPACER,PLATE REAR Fits: M996, M996A1	4	We can source it
5	Blind Rivet NSN 5320-01-259-7423 · P/N CR-213-4-5 RIVET,BLIND 1/8 Fits: M996, M996A1	8	We can source it
6	Self-Locking Nut NSN 5310-01-255-2695 · P/N 5593035 NUT,SELF-LOCKING,HE 1/4-20 Fits: M996, M996A1	8	We can source it
7	Machine Screw NSN 5305-00-988-1724 · P/N MS35206-280 SCREW,MACHINE 1/4-20 X .62 Fits: M996, M996A1	8	74 in stock
8	Locking Stay NSN 5340-01-272-9103 · P/N 7792RH02 STAY,FOLDING FRONT L.H Fits: M996, M996A1	2	28 in stock
8	Seat Back Rear Brace NSN 2540-01-271-5072 · P/N 7792 LH-02 BRACE,SEAT BACK REA FRONT R.H Fits: M996, M996A1	2	5 in stock $25–$55 eachtypical
9	Cap Hexagon Head Screw NSN 5305-00-071-2067 · P/N B1821BH050C125N SCREW,CAP,HEXAGON H 1/2-13 X 1.25 Fits: M996, M996A1	8	296 in stock
10	Plate Spacer NSN 5365-01-272-4867 · P/N 12341332 SPACER,PLATE Fits: M996, M996A1	4	We can source it $95–$155 eachtypical
11	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M996, M996A1	8	4,285 in stock
12	Machine Screw NSN 5305-00-988-1171 · P/N MS35206-285 SCREW,MACHINE 1/4-20 X 1.50 Fits: M996, M996A1	8	We can source it
13	Plain Blind Rivet Nut NSN 5310-00-401-5321 · P/N MS27130A32 NUT,PLAIN,BLIND RIV .275-.350 GRIP Fits: M996, M996A1	4	We can source it
14	Catch Strike NSN 5340-01-274-3184 · P/N 12341299 STRIKE,CATCH REAR Fits: M996, M996A1	4	We can source it
15	Seat Vehicular Support NSN 2540-01-276-1451 · P/N 12341113 SUPPORT,SEAT,VEHICU Fits: M996, M996A1	2	We can source it $80–$135 eachtypical
16	Solid Rivet NSN 5320-01-259-6155 · P/N 5575936 RIVET,SOLID 3/16 Fits: M996, M996A1	32	We can source it
17	Blind Rivet NSN 5320-01-135-7319 · P/N CR-213-6-3 RIVET,BLIND 3/16 Fits: M996, M996A1	16	72 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
