HMMWV Attendant Seat, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 238

Every part in figure 238 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1806 Upholstery Seats and Carpet: 23 lines, 10 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

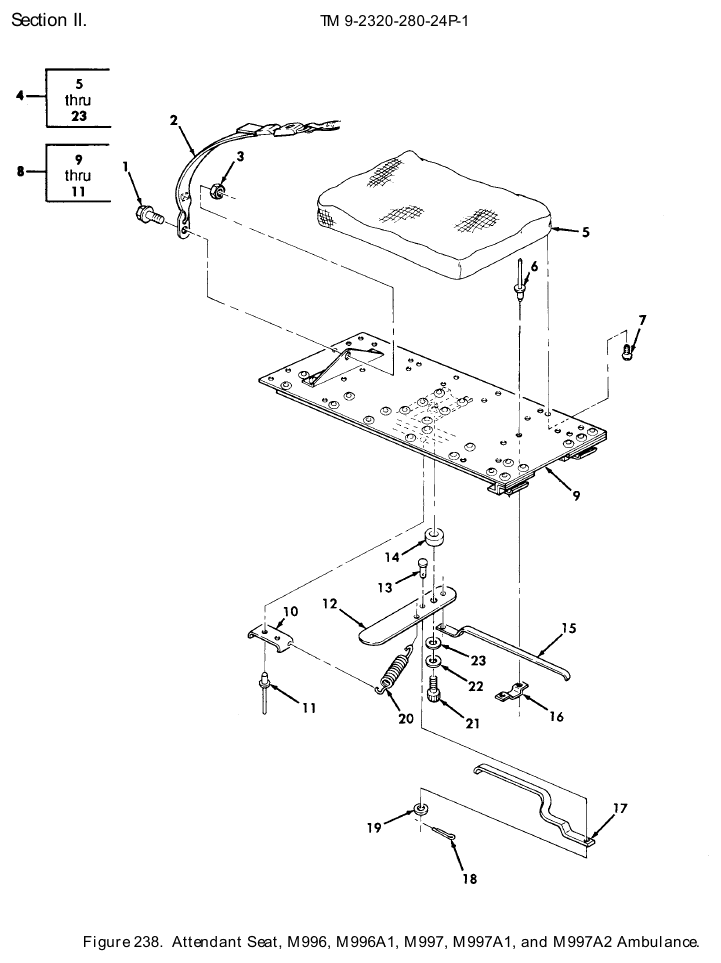

TM 9-2320-280-24P figure 238, Attendant Seat, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-01-254-2522 · P/N 12340259 SCREW,CAP,HEXAGON H 7/16-20 Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it $40–$80 eachtypical
2	Webbing Strap NSN 5340-01-265-8922 · P/N 12341802 STRAP,WEBBING Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $70–$120 eachtypical
3	Self-Locking Hexagon Nut NSN 5310-00-274-9364 · P/N MS21045-7 NUT,SELF-LOCKING,HE 7/16-20 Fits: M996, M996A1, M997, M997A1, M997A2	2	39 in stock
4	Seat Vehicular Support NSN 2540-01-270-9711 · P/N 12341246 SUPPORT,SEAT,VEHICU Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock $608.33 per assemblygov't list price
5	Seat Vehicular Cushion NSN 2540-01-270-5065 · P/N 12341133 CUSHION,SEAT,VEHICU Fits: M996, M996A1, M997, M997A1, M997A2	1	5 in stock $55–$90 eachtypical
6	Solid Rivet NSN 5320-00-754-0992 · P/N MS20470AD6-7 RIVET,SOLID Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
7	Wood Screw NSN 5305-01-272-9959 · P/N 5588927 SCREW,WOOD #10-16 X .75 Fits: M996, M996A1, M997, M997A1, M997A2	4	We can source it
8	Base P/N 12341138 BASE,ATTENDANT SEAT Fits: M996, M996A1, M997, M997A1, M997A2	1	Ask us
9	Seat Vehicular Support NSN 2540-01-271-8009 · P/N 12341135 SUPPORT,SEAT,VEHICU Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $55–$105 eachtypical
10	Lever Bracket NSN 5340-01-270-7917 · P/N 12340958 BRACKET,LEVER Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $25–$50 eachtypical
11	Blind Rivet NSN 5320-01-136-1782 · P/N NAS9301BNS-6-04 RIVET,BLIND 3/16 X 1/4 Fits: M996, M996A1, M997, M997A1, M997A2	6	50 in stock
12	Manual Control Handle NSN 5340-01-272-6633 · P/N 5592010 HANDLE,MANUAL CONTR Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $50–$100 eachtypical
13	Straight Headed Pin NSN 5315-00-417-5223 · P/N MS35810-1 PIN,STRAIGHT,HEADED 3/16 Fits: M996, M996A1, M997, M997A1, M997A2	2	126 in stock
14	Flat Washer NSN 5310-01-272-5470 · P/N 5593597 WASHER,FLAT Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it $75–$130 eachtypical
15	Rigid Connecting Link NSN 3040-01-270-7961 · P/N 5592013 CONNECTING LINK,RIG L.H Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock $30–$60 eachtypical
16	Catch Strike NSN 5340-01-274-9899 · P/N 5589581 STRIKE,CATCH Fits: M996, M996A1, M997, M997A1, M997A2	2	We can source it $30–$70 eachtypical
17	Rigid Connecting Link NSN 3040-01-271-3824 · P/N 12340994-1 CONNECTING LINK,RIG Fits: M996, M996A1, M997, M997A1, M997A2	1	1 in stock $35–$65 eachtypical
18	Cotter Pin NSN 5315-00-839-2325 · P/N MS24665-132 PIN,COTTER 1/16 X 1/2 Fits: M996, M996A1, M997, M997A1, M997A2	2	8,521 in stock
19	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 9/32 Fits: M996, M996A1, M997, M997A1, M997A2	2	2,325 in stock
20	Helical Extension Spring NSN 5360-01-278-9723 · P/N 5592011 SPRING,HELICAL,EXTE Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
21	Machine Screw NSN 5305-00-054-5642 · P/N MS51957-8 SCREW,MACHINE 1/4-20 X 1/2 Fits: M996, M996A1, M997, M997A1, M997A2	1	100 in stock
22	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it
23	Flat Washer NSN 5310-01-272-7449 · P/N 12341353-1 WASHER,FLAT 3/8 Fits: M996, M996A1, M997, M997A1, M997A2	1	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
