HMMWV TOW Missle Rack Assembly, Intermediate Rack, and Base Assembly TM 9-2320-280-24P · Fig. 244

Every part in figure 244 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 20 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

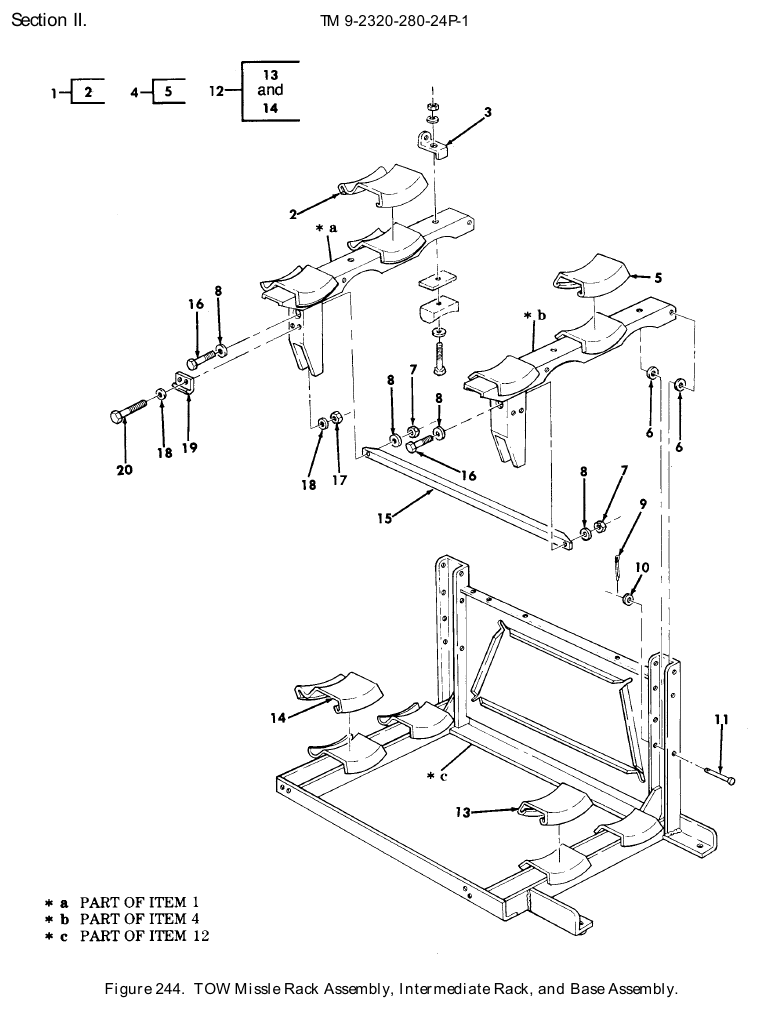

TM 9-2320-280-24P figure 244, TOW Missle Rack Assembly, Intermediate Rack, and Base Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Missile Rack Assembly NSN 2540-01-246-8285 · P/N 12339807 RACK ASSEMBLY,MISSI REAR Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $1,063.20 per assemblygov't list price
2	Cushioning Pad NSN 2590-01-235-8661 · P/N 12339778 PAD,CUSHIONING REAR Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	70 in stock
3	Double Angle Bracket NSN 5340-01-256-4516 · P/N 12339779 BRACKET,DOUBLE ANGL Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it $107.01 per eachgov't list price
4	Missi Rack Assembly NSN 2540-01-246-8286 · P/N 12339806 RACK ASSEMBLY,MISSI FRONT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	19 in stock $642.49 per assemblygov't list price
5	Cushioning Pad NSN 2590-01-194-0309 · P/N 12340063 PAD,CUSHIONING FRONT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	3 in stock
6	Flat Washer NSN 5310-01-256-4491 · P/N 5610-140-62 WASHER,FLAT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it
7	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	626 in stock
8	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	351 in stock
9	Cotter Pin NSN 5315-00-842-3044 · P/N MS24665-283 PIN,COTTER 3/32 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	3,000 in stock
10	Flat Washer NSN 5310-00-081-4219 · P/N MS27183-12 WASHER,FLAT 5/16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	1,368 in stock
11	Straight Headed Pin NSN 5315-00-989-0534 · P/N MS20392-4C95 PIN,STRAIGHT,HEADED 5/16 X 3.219 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
12	Ammunition Stowage Rack NSN 2590-01-249-1578 · P/N 12339820 RACK,AMMUNITION STO Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	1 in stock quote only $1,728.63 per assemblygov't list price
13	Cushioning Pad NSN 2590-01-194-0309 · P/N 12340063 PAD,CUSHIONING FRONT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	3 in stock
14	Cushioning Pad NSN 2590-01-235-8661 · P/N 12339778 PAD,CUSHIONING REAR Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	70 in stock
15	Connector Bar NSN 5340-01-248-7621 · P/N 5593624 BAR,METAL Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $30–$55 eachtypical
16	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	471 in stock
17	Self-Locking Hexagon Nut NSN 5310-00-208-1918 · P/N AN365-1024A NUT,SELF-LOCKING,HE #10-24 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	118 in stock
18	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	909 in stock
19	Catch Strike NSN 5340-01-190-0815 · P/N 18L13-1-1AA STRIKE,CATCH Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
20	Machine Screw NSN 5305-01-256-0405 · P/N 5593634 SCREW,MACHINE #10-24 X 2.50 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
