HMMWV Traversing Unit Stowage and Depression Stop Assembly TM 9-2320-280-24P · Fig. 245

Every part in figure 245 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 40 lines, 17 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

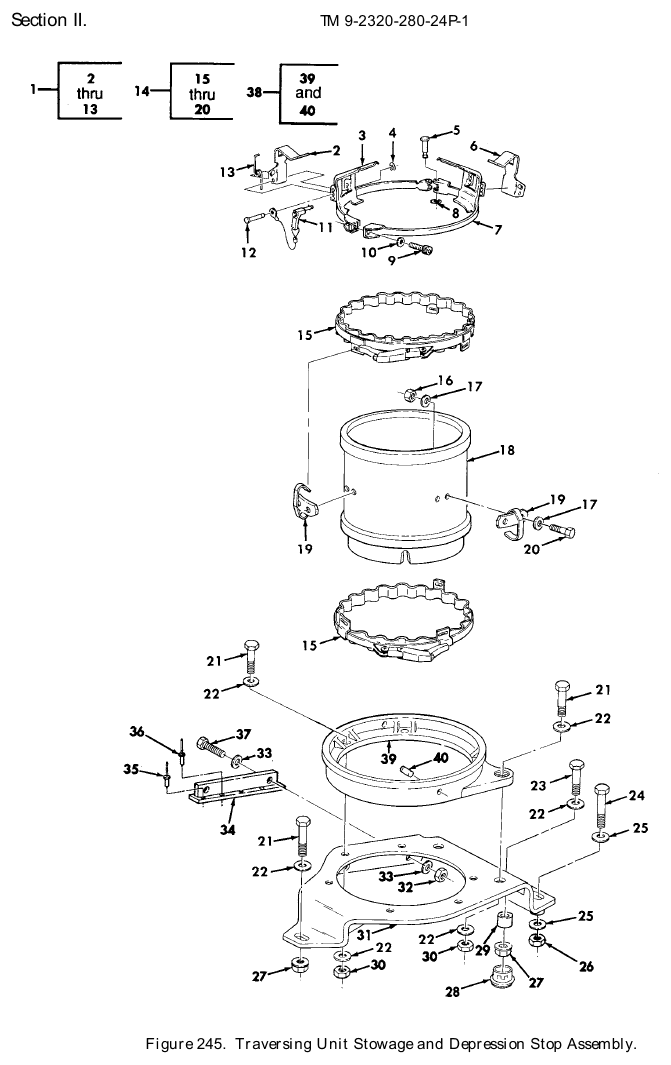

TM 9-2320-280-24P figure 245, Traversing Unit Stowage and Depression Stop Assembly: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Elevation Stop Assembly NSN 2590-01-188-5081 · P/N 5583676 STOP ASSEMBLY,ELEVA Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	1 in stock quote only $532.90 per assemblygov't list price
2	Mounting Bracket NSN 5340-01-197-6715 · P/N 5584104 BRACKET,MOUNTING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $50–$100 eachtypical
3	Retaining Strap NSN 5340-01-203-5629 · P/N 5584135 STRAP,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $85–$140 per assemblytypical
4	Retaining Ring NSN 5365-01-196-5636 · P/N 274612 RING,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
5	Grooved Headed Pin NSN 5315-01-197-3122 · P/N 12340053 PIN,GROOVED,HEADED Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
6	Bracket NSN 5340-01-197-6716 · P/N 5584105 BRACKET Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $30–$65 eachtypical
7	Retaining Strap NSN 5340-01-203-5630 · P/N 5584136 STRAP,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $90–$155 per assemblytypical
8	Retaining Ring NSN 5325-01-196-5631 · P/N 11505885 RING,RETAINING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
9	Cap Socket Head Screw NSN 5305-01-264-0923 · P/N MS51480-05 SCREW,CAP,SOCKET HE 1/4-28 X 1.50 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $162.36 per eachgov't list price
10	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	351 in stock
11	Quick Release Pin NSN 5315-00-973-8637 · P/N 903C4-16 PIN,QUICK RELEASE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it $25–$55 eachtypical
12	Grooved Headed Pin NSN 5315-01-198-3346 · P/N 5584107 PIN,GROOVED,HEADED Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it $25–$45 eachtypical
13	Helical Torsion Spring NSN 5360-01-101-2143 · P/N T048-270-250L SPRING,HELICAL,TORS Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it $176.12 per eachgov't list price
14	Mounting Bracket NSN 2590-01-188-5079 · P/N 12339680 ADAPTER ASSEMBLY,TU Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	1 in stock $717.22 per assemblygov't list price
15	Clamp Grooved Coupling NSN 5342-01-104-7700 · P/N 13048915-1 COUPLING,CLAMP,GROO Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it $535.55 per eachgov't list price
16	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	12	626 in stock
17	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	24	351 in stock
18	Adapter P/N 5583120 ADAPTER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	Ask us
19	Spring Tension Clip NSN 5340-01-197-3478 · P/N 5583993 CLIP,SPRING TENSION Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	6	7 in stock
20	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	12	471 in stock
21	Cap Hexagon Head Screw NSN 5305-00-068-0510 · P/N B1821BH038C100N SCREW,CAP,HEXAGON H 3/8-16 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	9	26 in stock
22	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	18	1,146 in stock $7.83our price Buy online ↗
23	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	1,373 in stock
24	Cap Hexagon Head Screw NSN 5305-00-071-2070 · P/N B1821BH050C175N SCREW,CAP,HEXAGON H 1/2-13 X 1.75 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	4,200 in stock $52.99our price Buy online ↗
25	Flat Washer NSN 5310-00-167-0823 · P/N AN960-816 WASHER,FLAT 1/2 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	500 in stock
26	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE 1/2-13 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	1,713 in stock
27	Self-Locking Extended Washer Nut NSN 5310-00-930-8214 · P/N MS51988-7 NUT,SELF-LOCKING,EX 3/8-16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
28	Vent Plug NSN 5340-01-110-4036 · P/N 12298661 PLUG,VENT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
29	Sleeve Spacer NSN 5365-01-256-9568 · P/N 12339751 SPACER,SLEEVE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
30	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	219 in stock
31	Special Bracket NSN 5340-01-199-3495 · P/N 12339798 BRACKET,SPECIAL Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $178.65 per assemblygov't list price
32	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	626 in stock
33	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	351 in stock
34	T Bracket NSN 5340-01-252-0741 · P/N 12339759 BRACKET,T Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	32 in stock $25–$60 eachtypical
35	Blind Rivet NSN 5320-01-264-5978 · P/N 12339355-2 RIVET,BLIND 3/16 DIA. .214-.437 GRIP Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
36	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	5	We can source it
37	Cap Hexagon Head Screw NSN 5305-00-071-2505 · P/N B1821BH025C088N SCREW,CAP,HEXAGON H 1/4-20 X 7/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	We can source it
38	T. U. Stowage Pedestal Assembly NSN 2590-01-188-5080 · P/N 12339679-2 PEDESTAL ASSEMBLY,T Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $208.38 per assemblygov't list price
39	Pedestal P/N 5579386 PEDESTAL Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	Ask us
40	Spring Pin NSN 5315-01-218-1114 · P/N G45637 PIN,SPRING 1/4 X 5/8 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it
