HMMWV Ammunition and Water Can Stowage Trays and Mounting Hardware TM 9-2320-280-24P · Fig. 254

Every part in figure 254 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 29 lines, 19 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

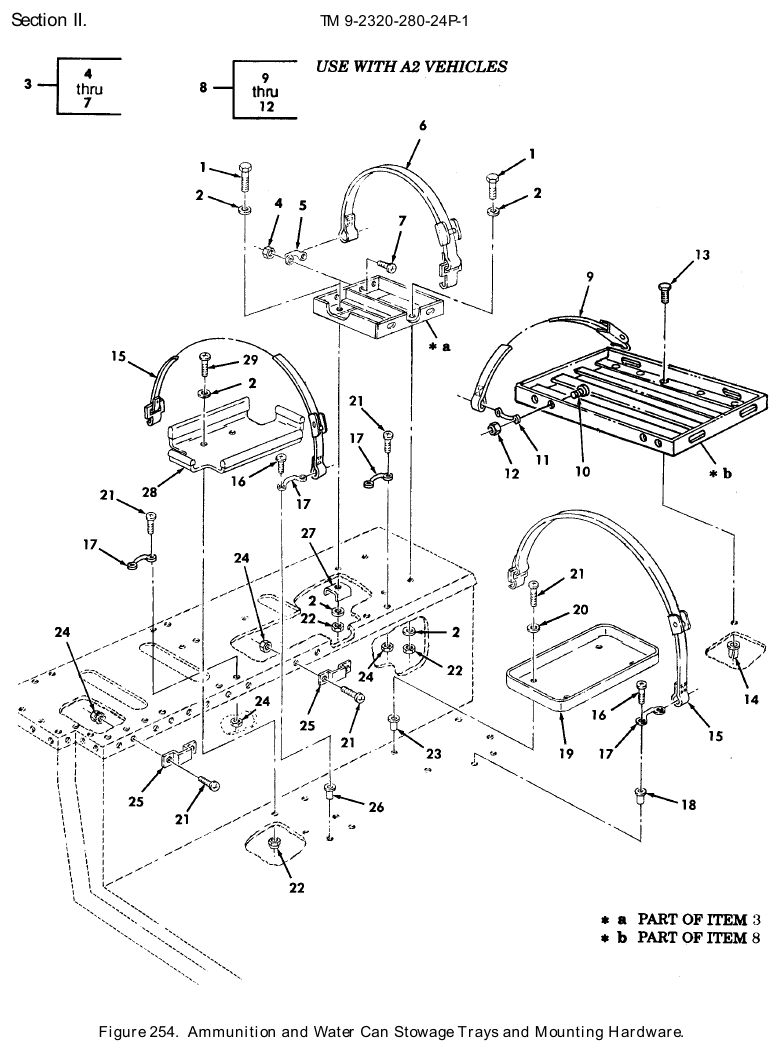

TM 9-2320-280-24P figure 254, Ammunition and Water Can Stowage Trays and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M1025A2, M1043A2	8	471 in stock
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M1025A2, M1043A2	19	351 in stock
3	Ammunition Stowage Box NSN 2540-01-246-8292 · P/N 12340170 BOX,AMMUNITION STOW Fits: M1025A2, M1043A2	2	65 in stock $547.20 per assemblygov't list price
4	Lock Nut NSN 5310-00-251-4503 · P/N 9411893 NUT,LOCK #10-32 Fits: M1025A2, M1043A2	8	40 in stock
5	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025A2, M1043A2	4	1 in stock
6	Webbing Strap NSN 5340-01-258-4529 · P/N 12340507-4 STRAP,WEBBING Fits: M1025A2, M1043A2	4	1,464 in stock
7	Cap Hexagon Head Screw NSN 5305-00-018-7838 · P/N 187838 SCREW,CAP,HEXAGON H Fits: M1025A2, M1043A2	8	We can source it
8	Ammunition B Tray NSN 2590-01-411-2737 · P/N 12446772 BOX,AMMUNITION STOW Fits: M1025A2, M1043A2	1	22 in stock $207.15 per assemblygov't list price
9	Webbing Strap NSN 5340-01-259-0330 · P/N 45410-18 STRAP,WEBBING Fits: M1025A2, M1043A2	4	205 in stock
10	Cap Hexagon Head Screw NSN 5305-00-018-7838 · P/N 187838 SCREW,CAP,HEXAGON H #10-32 X .62 Fits: M1025A2, M1043A2	8	We can source it
11	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025A2, M1043A2	4	1 in stock
12	Lock Nut NSN 5310-00-251-4503 · P/N 9411893 NUT,LOCK #10-32 Fits: M1025A2, M1043A2	8	40 in stock
13	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M1025A2, M1043A2	6	559 in stock
14	Plain Blind Rivet Nut NSN 5310-01-088-7962 · P/N MS27130-A31 NUT,PLAIN,BLIND RIV 1/4-20 Fits: M1025A2, M1043A2	6	We can source it
15	Webbing Strap NSN 5340-01-256-4655 · P/N 45606-12 STRAP,WEBBING Fits: M1025A2, M1043A2	3	We can source it
16	Screw NSN 5305-01-185-0114 · P/N 157166 SCREW #10-32 X 3/4 Fits: M1025A2, M1043A2	6	We can source it
17	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M1025A2, M1043A2	5	1 in stock
18	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N S10P175 NUT,PLAIN,BLIND RIV #10-32 Fits: M1025A2, M1043A2	4	We can source it
19	Fuel Can Tray NSN 2510-01-197-8572 · P/N 12340155 TRAY,FUEL CAN Fits: M1025A2, M1043A2	2	27 in stock $30–$70 eachtypical
20	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M1025A2, M1043A2	8	351 in stock
21	Machine Screw NSN 5305-00-988-1727 · P/N MS35206-283 SCREW,MACHINE Fits: M1025A2, M1043A2	16	2,424 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1025A2, M1043A2	8	626 in stock
23	Plusnut NSN 4931-01-202-8692 · P/N 12339998-13 PLUSNUT #10-32 Fits: M1025A2, M1043A2	8	We can source it
24	Plain Assembled Washer Nut NSN 5310-00-124-9265 · P/N 271169 NUT,PLAIN,ASSEMBLED #10-32 Fits: M1025A2, M1043A2	4	474 in stock
25	Retaining Strap NSN 5340-01-253-5479 · P/N 12340130 STRAP,RETAINING Fits: M1025A2, M1043A2	2	We can source it
26	Plain Blind Rivet Nut NSN 5310-01-197-6253 · P/N S10P320 NUT,PLAIN,BLIND RIV #10-32 Fits: M1025A2, M1043A2	2	We can source it
27	Angle Bracket NSN 5340-01-336-3004 · P/N 12342383 BRACKET,ANGLE DOUBLE Fits: M1025A2, M1043A2	1	4 in stock
28	Stowage Water Tray NSN 2540-01-262-9516 · P/N 12340158-3 TRAY,STOWAGE,WATER Fits: M1025A2, M1043A2	1	7 in stock $137.71 per eachgov't list price
29	Machine Screw NSN 5305-00-482-6825 · P/N MS35206-345 SCREW,MACHINE 1/4-20 X 1.38 Fits: M1025A2, M1043A2	3	We can source it

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
