HMMWV Surge Tank and Related Parts TM 9-2320-280-24P · Fig. 27

Every part in figure 27 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0501 Radiator, Evaporative Cooler or Heat Exchanger: 15 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

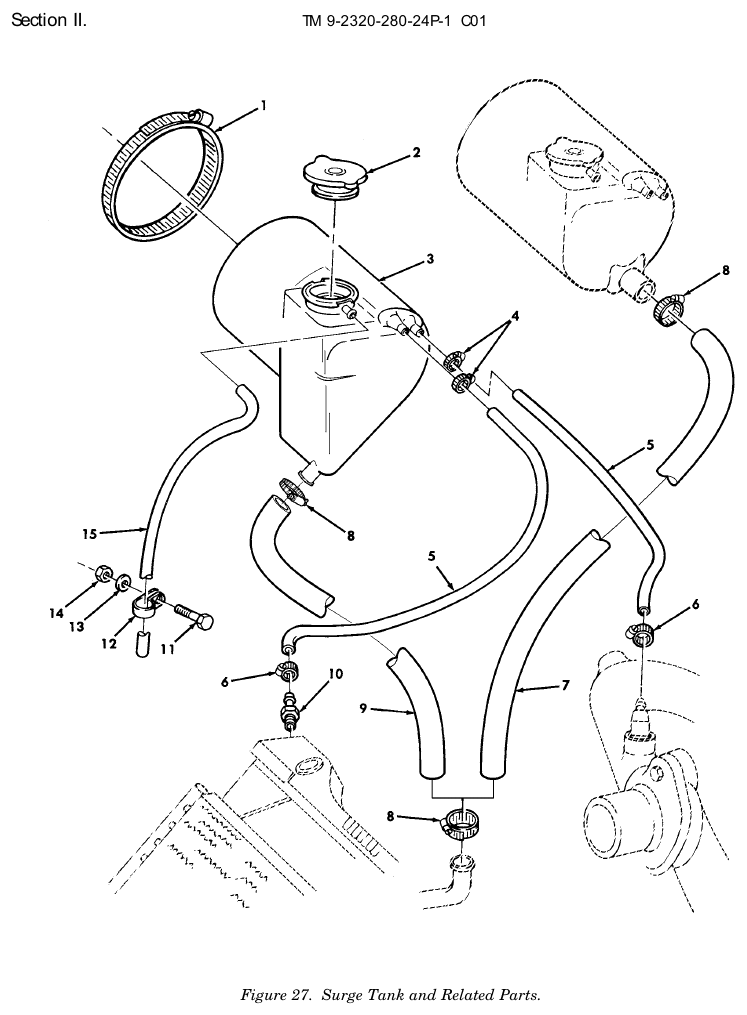

TM 9-2320-280-24P figure 27, Surge Tank and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Hose Clamp NSN 4730-00-908-6294 · P/N 96HSS CLAMP,HOSE Fits: All models	2	633 in stock
2	Filler Opening Cap NSN 2930-01-426-7711 · P/N R17 CAP,FILLER OPENING 15 PSI Fits: All models	1	21 in stock $25.99our price Buy online ↗
3	Radiator Overflow Tank NSN 2930-01-256-5350 · P/N 12340061 TANK,RADIATOR,OVERF Fits: All models	1	488 in stock $135.00our price Buy online ↗
4	Hose Clamp NSN 4730-01-118-8278 · P/N MMF4-SS CLAMP,HOSE Fits: All models	4	9 in stock
5	Nonmetallic Hose NSN 4720-01-186-6018 · P/N 12339155-1 HOSE,NONMETALLIC Fits: All models	2	8 in stock
6	Hose Clamp NSN 4730-01-413-8244 · P/N 11608950-1 CLAMP,HOSE Fits: All models	1	2 in stock
7	Preformed Hose NSN 4720-01-196-1636 · P/N 12339163 HOSE,PREFORMED USE WITH OLD TANK P/N 12340062 Fits: All models	1	77 in stock $30–$65 eachtypical
8	Hose Clamp NSN 4730-00-586-8463 · P/N 16HSS CLAMP,HOSE Fits: All models	2	We can source it
9	Nonmetallic Hose NSN 4720-01-360-2380 · P/N 12340046 HOSE,NONMETALLIC Fits: All models	1	181 in stock $48.99our price Buy online ↗
10	Straight Pipe to Hose Adapter NSN 4730-01-185-9453 · P/N 12339889 ADAPTER,STRAIGHT,PI Fits: All models	1	1 in stock
11	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: All models	1	248 in stock
12	Loop Clamp NSN 5340-00-385-8820 · P/N COV-0909 CLAMP,LOOP Fits: All models	1	23 in stock
13	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: All models	1	351 in stock
14	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: All models	1	626 in stock
15	Hose Make From Hose P/N 5578999 HOSE MAKE FROM HOSE,P/N ET029, 18 INCHES LONG Fits: All models	1	Ask us
