HMMWV 3-1/2 Ton Jack Storage Bracket and Related Items TM 9-2320-280-24P · Fig. 261

Every part in figure 261 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 16 lines, 7 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

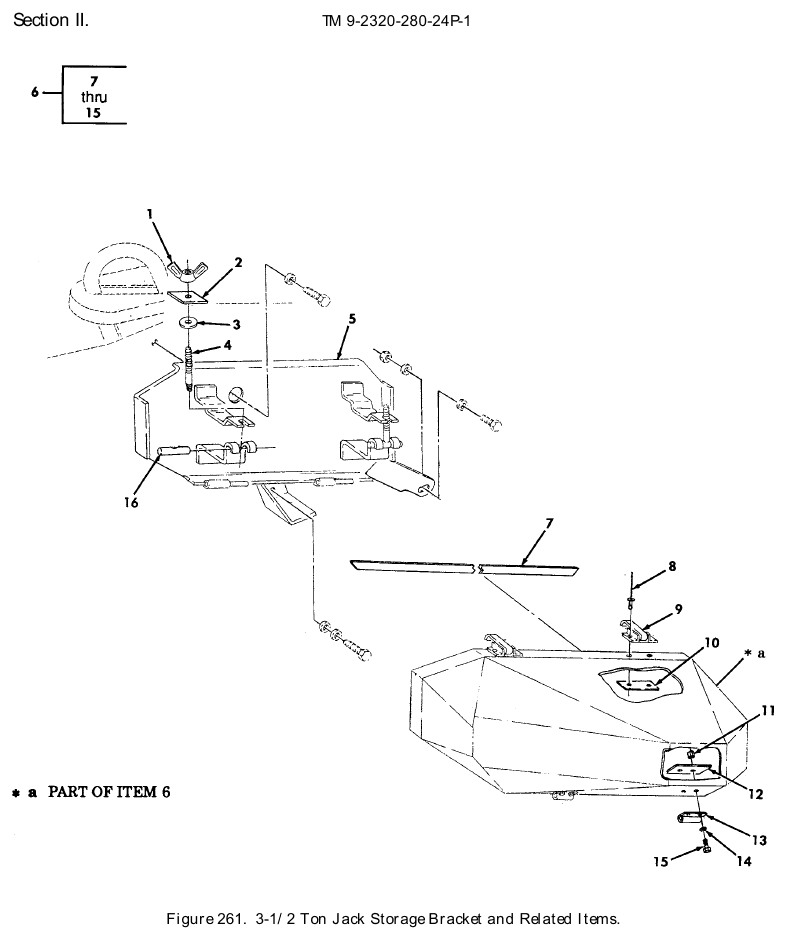

TM 9-2320-280-24P figure 261, 3-1/2 Ton Jack Storage Bracket and Related Items: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Plain Wing Nut NSN 5310-01-078-5996 · P/N MS35425-75 NUT,PLAIN,WING Fits: All A2 models, plus M1123	2	3 in stock
2	Plate Spacer NSN 5365-01-408-8507 · P/N 12447037 SPACER,PLATE Fits: All A2 models, plus M1123	2	We can source it
3	Flat Washer NSN 5310-01-374-4512 · P/N 12412123 WASHER,FLAT 3/8 Fits: All A2 models, plus M1123	2	We can source it
4	Stepped Stud NSN 5307-01-411-8340 · P/N 12447035 STUD,STEPPED THRU Fits: All A2 models, plus M1123	2	5 in stock
5	Vehicular Components Bracket NSN 2590-01-410-9967 · P/N 12446993 BRACKET,VEHICULAR C Fits: All A2 models, plus M1123	1	We can source it $300.14 per eachgov't list price
6	Cover NSN 2590-01-410-8791 · P/N 12446998 COVER,VEHICULAR COM Fits: All A2 models, plus M1123	1	1 in stock
7	Seal Make From Seal P/N 12338807-4 SEAL MAKE FROM SEAL, P/N 68- 412121-1, 81.50 INCHES LONG Fits: All A2 models, plus M1123	1	Ask us
8	Blind Rivet NSN 5320-01-271-6357 · P/N MGLP-B6-4 RIVET,BLIND 3/16 Fits: All A2 models, plus M1123	4	We can source it
9	Clamping Catch NSN 5340-01-408-8508 · P/N 12339664 CATCH,CLAMPING LEVER,LOCK-RELEASE Fits: All A2 models, plus M1123	2	1 in stock
10	Mounting Plate NSN 5340-01-408-8509 · P/N 12447000 PLATE,MOUNTING Fits: All A2 models, plus M1123	2	We can source it $25–$40 eachtypical
11	Self-Locking Hexagon Nut NSN 5310-01-432-6727 · P/N 9419471 NUT,SELF-LOCKING,HE 1/4-20 Fits: All A2 models, plus M1123	4	184 in stock
12	Mounting Plate NSN 5340-01-408-8512 · P/N 12446999 PLATE,MOUNTING Fits: All A2 models, plus M1123	2	We can source it
13	Butt Hinge Leaf NSN 5340-01-408-7091 · P/N 7397934 LEAF,BUTT HINGE Fits: All A2 models, plus M1123	2	290 in stock $184.01 per eachgov't list price
14	Flat Washer NSN 5310-00-817-4623 · P/N 4M25-4 WASHER,FLAT 1/4 Fits: All A2 models, plus M1123	4	We can source it
15	Cap Hexagon Head Screw NSN 5305-01-411-4456 · P/N 173397 SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: All A2 models, plus M1123	4	We can source it
16	Hollow Pin NSN 5315-01-408-7089 · P/N 12447036 PIN,HOLLOW Fits: All A2 models, plus M1123	2	18 in stock

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
