HMMWV I.V. Bag Straps and Hooks, Oxygen Bottle Stowage, and Spine Board Strap Assemblies, M996, M996A1, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 262

Every part in figure 262 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 16 lines, 13 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

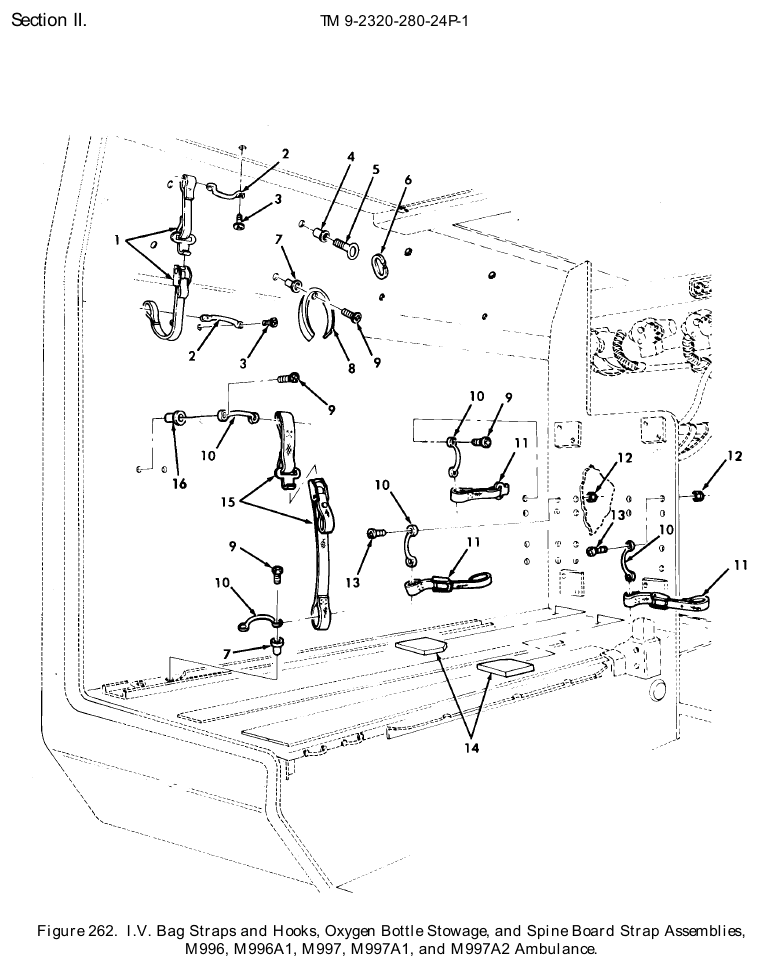

TM 9-2320-280-24P figure 262, I.V. Bag Straps and Hooks, Oxygen Bottle Stowage, and Spine Board Strap Assemblies, M996, M996A1, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Webbing Strap NSN 5340-01-397-1388 · P/N 12341385 STRAP,WEBBING Fits: M996, M996A1, M997, M997A1, M997A2	2	25 in stock $35–$75 eachtypical
2	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M996, M996A1, M997, M997A1, M997A2	4	1 in stock
3	Machine Screw NSN 5305-01-251-0728 · P/N 5592823 SCREW,MACHINE #10-32 X .75 Fits: M996, M996A1, M997, M997A1, M997A2	8	482 in stock
4	Plain Blind Rivet Nut NSN 5310-00-401-5321 · P/N MS27130A32 NUT,PLAIN,BLIND RIV 1/4-20 Fits: M996, M996A1, M997, M997A1, M997A2	8	We can source it
5	Eye Bolt NSN 5306-01-265-8767 · P/N 5588904 BOLT,EYE 1/4-20 X .75 Fits: M996, M997, M997A1, M997A2	8	We can source it
6	Snap Hook NSN 5340-01-265-8895 · P/N 760-2601 SNAP HOOK Fits: M996, M996A1, M997, M997A1, M997A2	8	20 in stock
7	Plain Blind Rivet Nut NSN 5310-00-141-3062 · P/N MS27130-A26 NUT,PLAIN,BLIND RIV #10-32 Fits: M996, M996A1, M997, M997A1, M997A2	16	36 in stock
8	Webbing Strap NSN 5340-01-265-8921 · P/N 0-130105-0012 STRAP,WEBBING Fits: M996, M996A1, M997, M997A1, M997A2	8	4 in stock
9	Machine Screw NSN 5305-00-995-3444 · P/N MS35207-266 SCREW,MACHINE #10-32 X .75 Fits: M996, M996A1, M997, M997A1, M997A2	20	100 in stock
10	Bow Handle NSN 5340-01-191-8186 · P/N 5582608 HANDLE,BOW Fits: M996, M996A1, M997, M997A1, M997A2	11	20 in stock
11	Webbing Strap NSN 5340-01-265-8923 · P/N 44647-18 STRAP,WEBBING Fits: M996, M996A1, M997, M997A1, M997A2	4	824 in stock $25.00our price Buy online ↗
12	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 Fits: M996, M996A1, M997, M997A1, M997A2	6	10 in stock
13	Machine Screw NSN 5305-00-059-3660 · P/N MS51958-64 SCREW,MACHINE #10-32 X 5/8 Fits: M996, M996A1, M997, M997A1, M997A2	14	4 in stock
14	Bumper NSN 5340-01-277-5129 · P/N SF5597714 BUMPER,NONMETALLIC Fits: M996, M996A1, M997, M997A1, M997A2	2	296 in stock $25–$40 eachtypical
15	Webbing Strap NSN 5340-01-287-6352 · P/N 12339817-9 STRAP,WEBBING Fits: M996, M997, M997A1	2	We can source it
16	Plain Nut NSN 5310-01-395-3549 · P/N MS27130-A28 NUT,PLAIN,BLIND RIV #10-32 Fits: M996, M996A1, M997, M997A1, M997A2	4	4 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
