HMMWV Web Shelf Net Assembly, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 263

Every part in figure 263 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 9 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

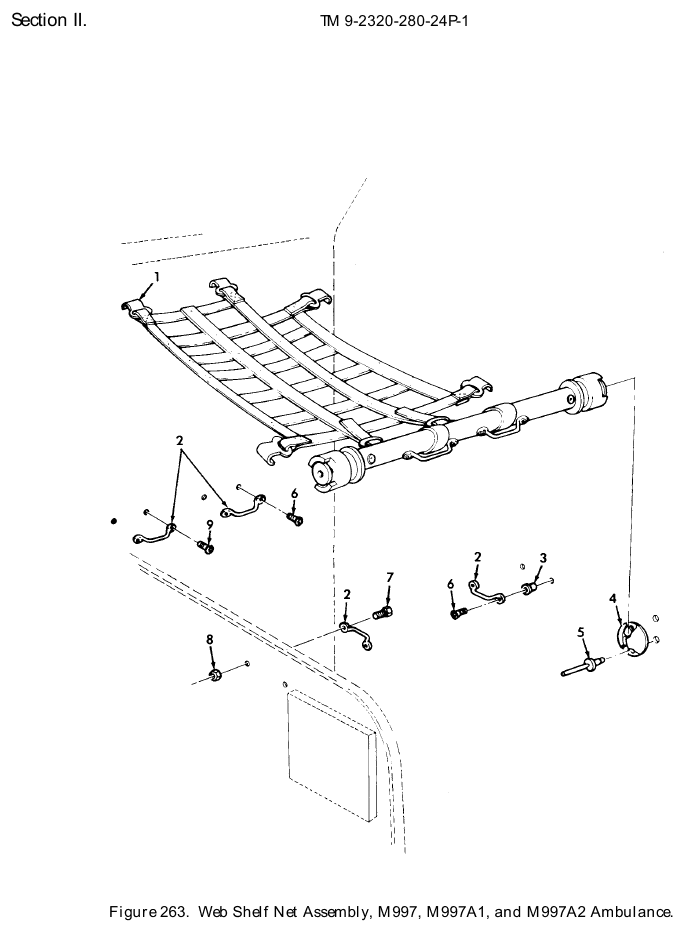

TM 9-2320-280-24P figure 263, Web Shelf Net Assembly, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Stowage Web Shelf NSN 2540-01-271-5071 · P/N 45079-10 WEB SHELF,STOWAGE Fits: M997, M997A1, M997A2	1	We can source it $609.20 per assemblygov't list price
2	Self-Locking Hexagon Nut NSN 5310-01-614-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M997, M997A1, M997A2	5	We can source it $50–$85 eachtypical
3	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N S10P175 NUT,PLAIN,BLIND RIV #10-32 X 1.75 Fits: M997, M997A1, M997A2	4	We can source it
4	Box Anchor Plate NSN 2540-01-271-8010 · P/N 40000-10 ANCHOR PLATE,BOX Fits: M997, M997A1, M997A2	2	We can source it $25–$50 eachtypical
5	Solid Rivet NSN 5320-01-259-6155 · P/N 5575936 RIVET,SOLID 3/16 Fits: M997, M997A1, M997A2	4	We can source it
6	Machine Screw NSN 5305-01-251-0728 · P/N 5592823 SCREW,MACHINE #10-32 X 3/4 Fits: M997, M997A1, M997A2	6	482 in stock
7	Machine Screw NSN 5305-00-180-4966 · P/N MS51849-64 SCREW,MACHINE #10-32 X .50 Fits: M997, M997A1, M997A2	2	We can source it
8	Self-Locking Nut NSN 5305-01-251-0726 · P/N 5593053 NUT,SELF-LOCKING,HE #10-32 Fits: M997, M997A1, M997A2	2	10 in stock
9	Machine Screw NSN 5305-00-995-3444 · P/N MS35207-266 SCREW,MACHINE #10-32 X .88 Fits: M997, M997A1, M997A2	2	100 in stock
