HMMWV Attendant Seat Stowage Hardware, M996 and M996A1 Ambulance TM 9-2320-280-24P · Fig. 264

Every part in figure 264 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 7 lines, 2 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

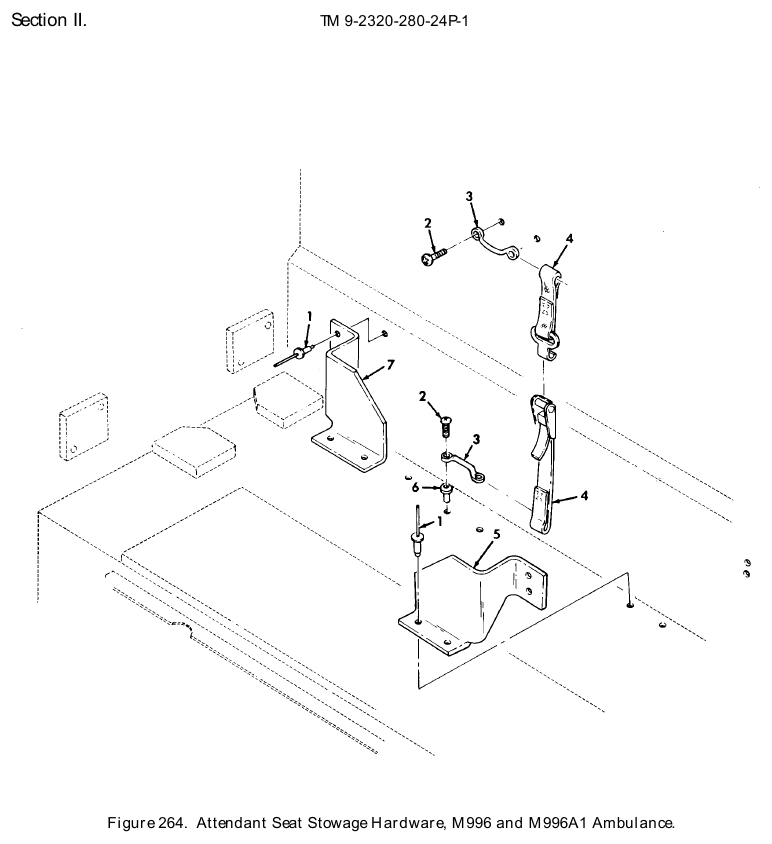

TM 9-2320-280-24P figure 264, Attendant Seat Stowage Hardware, M996 and M996A1 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-264-5978 · P/N MGLP-B6-7 RIVET,BLIND 3/16 Fits: M996, M996A1	8	We can source it
2	Machine Screw NSN 5305-01-251-0728 · P/N 5592823 SCREW,MACHINE #10-32 X .75 Fits: M996, M996A1	4	482 in stock
3	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M996, M996A1	2	1 in stock
4	Webbing Strap NSN 5340-01-272-8431 · P/N 44647-19 STRAP,WEBBING Fits: M996, M996A1	1	We can source it $25–$50 eachtypical
5	Double Angle Bracket NSN 5340-01-272-6520 · P/N 12340990-1 BRACKET,DOUBLE ANGL Fits: M996, M996A1	1	We can source it $25–$55 eachtypical
6	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N S10P175 NUT,PLAIN,BLIND RIV #10-32 Fits: M996, M996A1	2	We can source it
7	Double Angle Bracket NSN 5340-01-270-8455 · P/N 12340990-2 BRACKET,DOUBLE ANGL Fits: M996, M996A1	1	We can source it $25–$60 eachtypical
