HMMWV Attendant Seat Stowage Hardware, M997, M997A1, and M997A2 Ambulance TM 9-2320-280-24P · Fig. 265

Every part in figure 265 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1808 Stowage Racks, Boxes, Straps, Carrying Cases, Cable Reels: 6 lines, 3 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

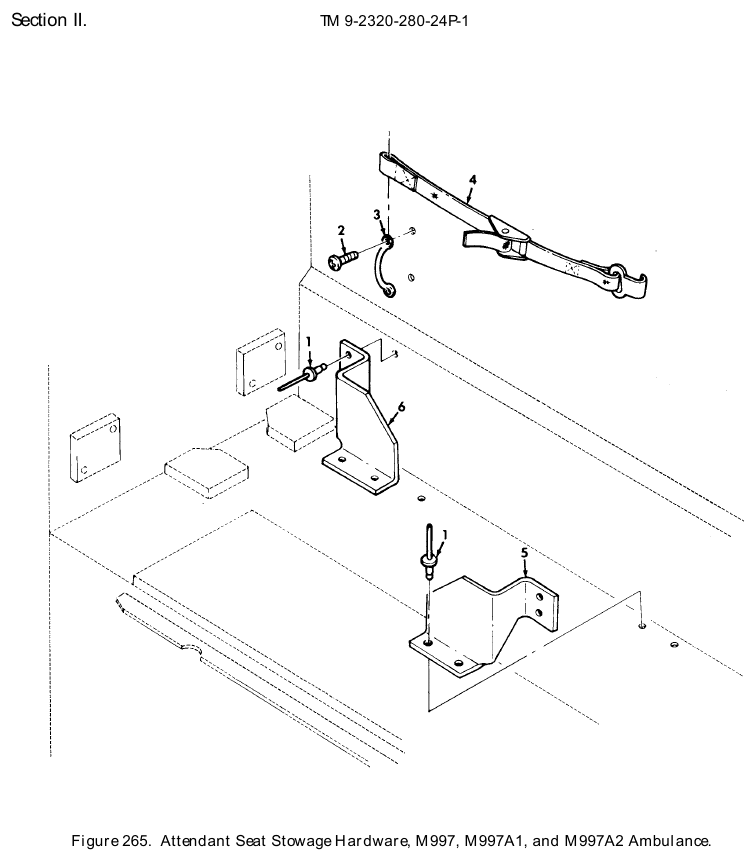

TM 9-2320-280-24P figure 265, Attendant Seat Stowage Hardware, M997, M997A1, and M997A2 Ambulance: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Blind Rivet NSN 5320-01-264-5978 · P/N MGLP-B6-7 RIVET,BLIND 3/16 Fits: M997, M997A1, M997A2	8	We can source it
2	Machine Screw NSN 5305-01-251-0728 · P/N 5592823 SCREW,MACHINE #10-32 X .75 Fits: M997, M997A1, M997A2	4	482 in stock
3	Strap Fastener Loop NSN 5340-01-314-5957 · P/N 12338839-1 LOOP,STRAP FASTENER Fits: M997, M997A1, M997A2	2	1 in stock
4	Webbing Strap NSN 5340-01-282-2670 · P/N 45087-10 STRAP,WEBBING Fits: M997, M997A1, M997A2	1	23 in stock $25–$40 eachtypical
5	Double Angle Bracket NSN 5340-01-272-6520 · P/N 12340990-1 BRACKET,DOUBLE ANGL REAR,R.H Fits: M997, M997A1, M997A2	1	We can source it $25–$55 eachtypical
6	Double Angle Bracket NSN 5340-01-270-8455 · P/N 12340990-2 BRACKET,DOUBLE ANGL REAR,L.H Fits: M997, M997A1, M997A2	1	We can source it $25–$60 eachtypical

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
