HMMWV Tailgate Assembly and Related Parts TM 9-2320-280-24P · Fig. 266

Every part in figure 266 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1810 Cargo Body: 30 lines, 27 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

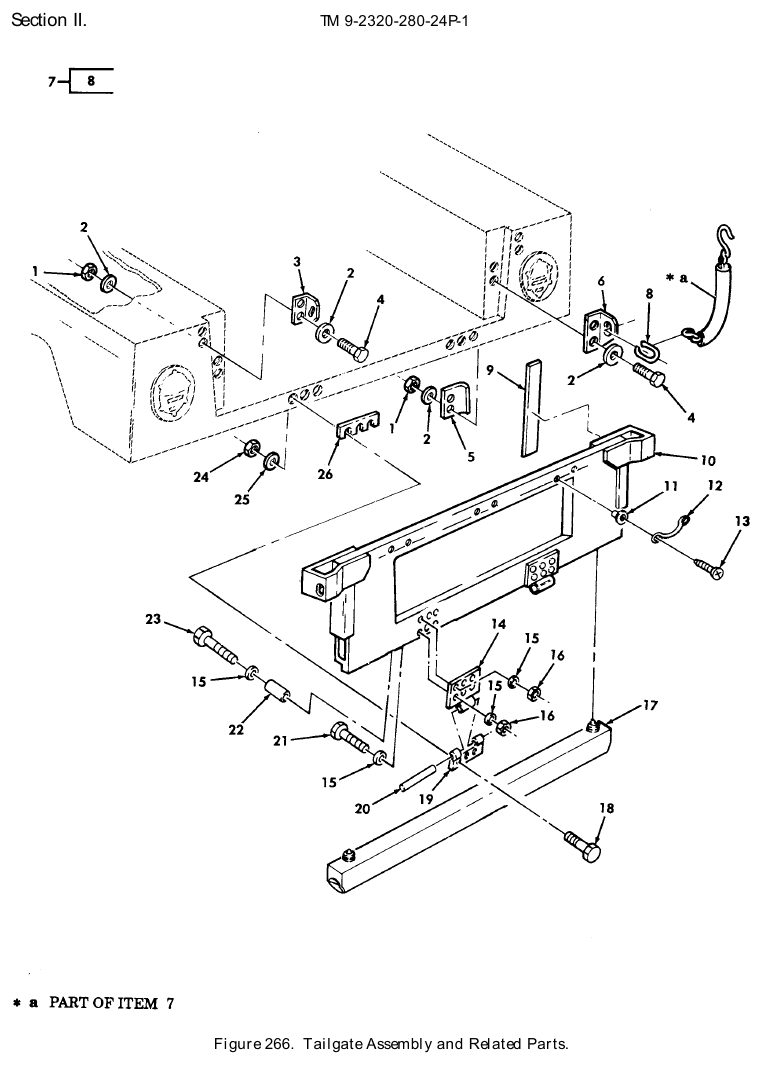

TM 9-2320-280-24P figure 266, Tailgate Assembly and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	8	354 in stock
2	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	16	471 in stock
3	Angle Bracket NSN 5340-01-260-5792 · P/N 12338974-2 BRACKET,ANGLE R.H Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	1	7 in stock
3	Angle Bracket NSN 5340-01-260-9874 · P/N 5596374 BRACKET,ANGLE L.H Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	1	631 in stock $25–$55 eachtypical
4	Machine Bolt NSN 5305-00-051-4077 · P/N B1821BH031F113N BOLT,MACHINE 5/16-18 X 1.125 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	8	239 in stock
5	Angle Bracket NSN 5340-01-185-8724 · P/N 5575752 BRACKET,ANGLE Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	2	We can source it
6	Angle Bracket NSN 5340-01-186-1280 · P/N 5575702 BRACKET,ANGLE L.H Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	1	32 in stock
6	Angle Bracket NSN 5340-01-186-1281 · P/N 5575703 BRACKET,ANGLE R.H Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	1	We can source it
7	Cover and Chain NSN 2510-00-933-2893 · P/N 12339227-1 COVER AND CHAIN L.H Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	1	120 in stock $62.00our price Buy online ↗
7	Cover and Chain NSN 2510-00-933-2895 · P/N 12339227-2 COVER AND CHAIN R.H Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	1	136 in stock $62.00our price Buy online ↗
8	Chain Lap Link NSN 4010-01-194-8546 · P/N 12339223 LINK,CHAIN,LAP Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	1	1 in stock
9	Rubber Strip NSN 5330-01-193-2338 · P/N 12339228-9 RUBBER STRIP Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	2	2 in stock
10	Vehicle Body Tailgate NSN 2510-01-173-9316 · P/N 12338981-1 TAILGATE,VEHICLE BO Fits: M998, M998A1, M1035, M1035A1, M1035A2, M1038 and 5 more	1	16 in stock $1,283.67 per eachgov't list price
10	Vehicle Body Tailgate NSN 2510-01-378-5615 · P/N 12338981-2 TAILGATE,VEHICLE BO Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	20 in stock $1,680.12 per eachgov't list price
11	Plain Blind Rivet Nut NSN 5310-01-198-1723 · P/N 12339998-14 NUT,PLAIN,BLIND RIV #10-32 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	6	We can source it
12	Bow Handle NSN 5340-01-197-8673 · P/N 12338839-4 HANDLE,BOW Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	3	14 in stock
13	Cap Socket Head Screw NSN 5305-01-199-3371 · P/N PL25J02P12 SCREW,CAP,SOCKET HE SELF-LOCKING #10-32 X 1.75 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	6	96 in stock
14	Butt Hinge NSN 5340-01-367-2070 · P/N 12339945 HINGE,BUTT PART OF KIT P/N 57K0107 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	2	13 in stock $45–$85 eachtypical
15	Flat Washer NSN 5310-00-809-3078 · P/N MS27183-11 WASHER,FLAT 1/4 PART OF KIT OF KIT 57K0107 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	12	52 in stock
16	Self-Locking Hexagon Nut NSN 5310-01-066-6759 · P/N 21NE-040 NUT,SELF-LOCKING,HE 1/4-20 PART OF KIT P/N 57K0107 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	6	84 in stock
17	Bumper NSN 5340-01-259-8579 · P/N 5596736 BUMPER,NONMETALLIC Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	1	2 in stock $46.50our price Buy online ↗
18	Cap Hexagon Head Screw NSN 5305-00-068-0511 · P/N B1821BH038C125N SCREW,CAP,HEXAGON H 3/8-16 X 1.25 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	6	1,907 in stock
19	Butt Hinge Leaf NSN 5340-01-189-7739 · P/N 12339999 LEAF,BUTT HINGE Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	2	7 in stock $25–$50 eachtypical
20	Spring Pin NSN 5315-01-190-5908 · P/N 12339663 PIN,SPRINGHINGE TAI PART OF KIT P/N 57K0107 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	2	1 in stock
21	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 PART OF KIT P/N 57K0107 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	3	559 in stock
22	Sleeve Spacer NSN 5365-01-413-0275 · P/N 12338521-1 SPACER,SLEEVE PART OF KIT P/N 57K0107 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	3	315 in stock
23	Cap Hexagon Head Screw NSN 5305-00-071-2236 · P/N MS90725-15 SCREW,CAP,HEXAGON H 1/4-20 X 2.25 PART OF KIT P/N 57K0107 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	3	4 in stock
24	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	6	219 in stock
25	Flat Washer NSN 5310-00-080-6004 · P/N MS27183-14 WASHER,FLAT 3/8 Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	6	1,146 in stock $7.83our price Buy online ↗
26	Plate Spacer NSN 5365-01-271-2491 · P/N 12340045 SPACER,PLATE Fits: All A1 models except M996A1, M997A1; all A2 models except M997A2, plus M966, M998, M1025, M1026, M1035, M1038 and 7 more	2	47 in stock

Buy the 4 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
