HMMWV Body Armor Panels and Mounting Hardware TM 9-2320-280-24P · Fig. 267

Every part in figure 267 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 35 lines, 22 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

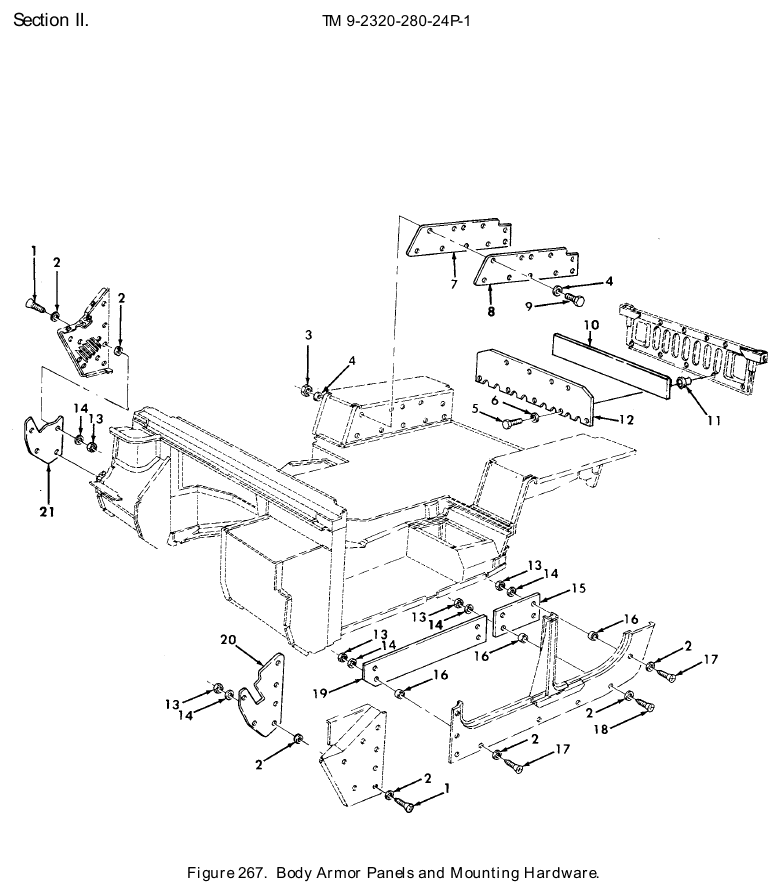

TM 9-2320-280-24P figure 267, Body Armor Panels and Mounting Hardware: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Machine Screw NSN 5305-00-988-1725 · P/N MS35206-281 SCREW,MACHINE 1/4-20 X .75 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 16 more	11	We can source it
2	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 16 more	38	2,325 in stock
3	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	20	626 in stock
3	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M1025A2, M1043A2	18	626 in stock
4	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M1025A2, M1043A2	36	2,325 in stock
4	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 14 more	40	2,325 in stock
5	Cap Hexagon Head Screw NSN 5305-00-225-3843 · P/N B1821BH025C100N SCREW,CAP,HEXAGON H 1/4-20 X 1.00 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	9	559 in stock
6	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	9	4,285 in stock
7	Sound Vehicular Dampener NSN 2540-01-192-9716 · P/N 12339029-1 DAMPENER,SOUND,VEHI Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 7 more	2	214 in stock $55–$105 eachtypical
8	Supplemental Small Arms-FR Armor NSN 9515-01-185-3111 · P/N 12339028-1 ARMOR PLATE Fits: M1025, M1025A1, M1026, M1026A1	2	6 in stock quote only $60–$100 eachtypical
8	Vehicular Fender Liner NSN 2510-01-413-3618 · P/N 12446913-2 LINER,VEHICULAR FEN Fits: M1043A2	2	12 in stock $90–$155 eachtypical
8	Vehicular Fender Liner NSN 2510-01-411-0653 · P/N 12446913-1 LINER,VEHICULAR FEN Fits: M1025A2	2	We can source it $148.30 per eachgov't list price
8	Supplemental Small Arms-FR Armor NSN 2540-01-189-9732 · P/N 5578331 ARMOR PLATE Fits: M1043, M1043A1, M1044, M1044A1, M1045, M1045A1 and 3 more	2	We can source it quote only $397.87 per eachgov't list price
9	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 7 more	20	471 in stock
9	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M1025A2, M1043A2	20	471 in stock
10	Sound Tailgate Dampener NSN 2540-01-192-5948 · P/N 12339029-2 DAMPENER,SOUND,TAIL Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 11 more	1	92 in stock $50–$95 eachtypical
11	Plusnut NSN 4931-01-202-8692 · P/N 12339998-13 PLUSNUT 1/4-20 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	9	We can source it
12	Supplemental Small Arms-FR Armor NSN 9515-01-189-9721 · P/N 12339232-1 ARMOR PLATE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	1 in stock quote only $101.24 per eachgov't list price
12	Supplemental Small Arms-FR Armor NSN 9515-01-189-9721 · P/N 12339232-2 ARMOR PLATE Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	1 in stock quote only $101.24 per eachgov't list price
13	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 16 more	27	626 in stock
14	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 16 more	27	351 in stock
15	Supplemental Small Arms-FR Armor NSN 9515-01-185-3109 · P/N 5579295 ARMOR PLATE Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 6 more	2	35 in stock quote only $55–$95 eachtypical
15	Supplemental Small Arms-FR Armor NSN 2540-01-189-9731 · P/N 5579296 ARMOR PLATE Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	2	We can source it quote only $108.24 per eachgov't list price
16	Sleeve Spacer NSN 5365-01-194-0761 · P/N 5579297 SPACER,SLEEVE Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 16 more	16	We can source it
17	Machine Screw NSN 5305-00-988-1170 · P/N MS35206-284 SCREW,MACHINE 1/4-20 X 1.25 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	12	1,099 in stock
17	Machine Screw NSN 5305-00-988-1170 · P/N MS35206-284 SCREW,MACHINE 1/4-20 X 1.25 Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	16	1,099 in stock
18	Machine Screw NSN 5305-00-071-1318 · P/N MS51957-83 SCREW,MACHINE 1/4-20 X 1.25 Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 7 more	4	6 in stock
19	Mending Plate NSN 5340-01-196-3297 · P/N 12340688-1 PLATE,MENDING R.H Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 6 more	1	We can source it $25–$55 eachtypical
19	Supplemental Small Arms-FR Armor NSN 2540-01-185-3110 · P/N 12340689-1 ARMOR PLATE Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 6 more	1	We can source it quote only $156.50 per eachgov't list price
19	Supplemental Small Arms-FR Armor NSN 2540-01-189-9745 · P/N 5579292 ARMOR PLATE Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	We can source it quote only $209.38 per eachgov't list price
19	Supplemental Small Arms-FR Armor NSN 2540-01-189-9746 · P/N 12340689-2 ARMOR PLATE L.H Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	We can source it quote only $70–$115 eachtypical
20	Supplemental Small Arms-FR Armor NSN 9515-01-185-3119 · P/N 5574879 ARMOR PLATE Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 6 more	1	1 in stock quote only $126.62 per eachgov't list price
20	Supplemental Small Arms-FR Armor NSN 2540-01-189-9733 · P/N 12340694-2 ARMOR PLATE Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	We can source it quote only $422.92 per eachgov't list price
21	Supplemental Small Arms-FR Armor NSN 2540-01-186-3111 · P/N 12340693-1 ARMOR PLATE R.H Fits: M966, M966A1, M996, M996A1, M997, M997A1 and 6 more	1	We can source it quote only $462.09 per eachgov't list price
21	Armor Plate NSN 9515-01-189-9722 · P/N 12340693-2 ARMOR PLATE R.H Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	We can source it quote only $118.04 per eachgov't list price

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
