HMMWV Cargo Shell Door, Insulation, Intermediate Pillar, Gas Spring, and Related Components TM 9-2320-280-24P · Fig. 268

Every part in figure 268 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 49 lines, 37 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

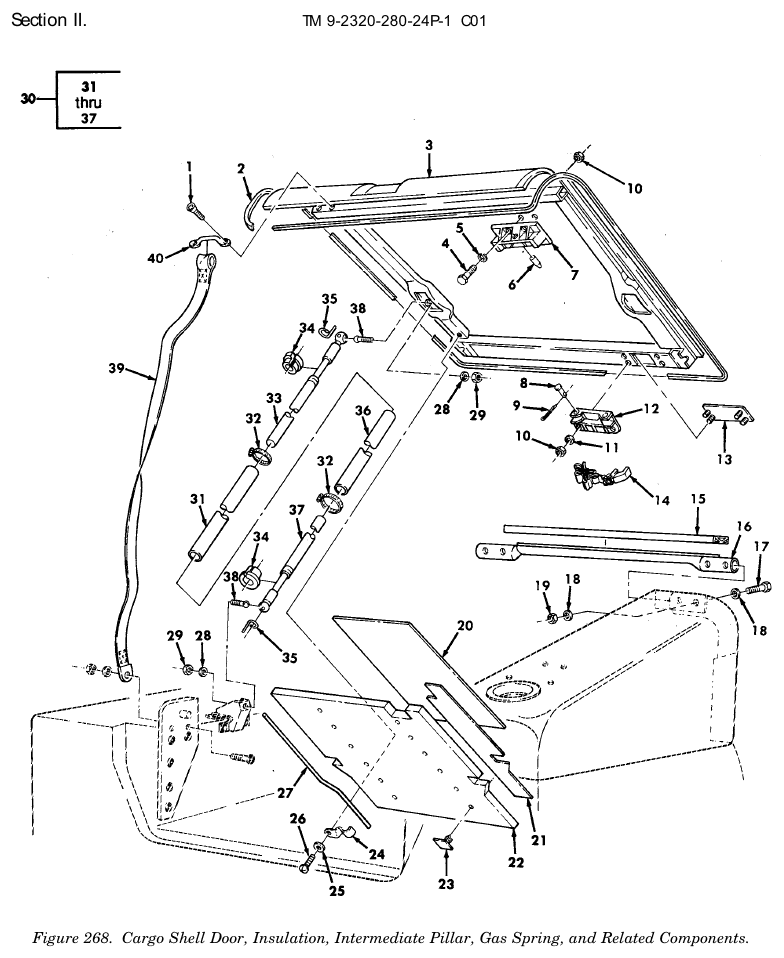

TM 9-2320-280-24P figure 268, Cargo Shell Door, Insulation, Intermediate Pillar, Gas Spring, and Related Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Assembled Washer Screw NSN 5305-01-254-2459 · P/N 5593313 SCREW,ASSEMBLED WAS #10-32 X 3/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	12 in stock
2	Nonmetallic Special Shaped Seal NSN 5330-01-195-9083 · P/N 12339595 SEAL,NONMETALLIC SP Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	2 in stock $80–$130 eachtypical
3	Hatch Vehicle Door NSN 2510-01-262-9520 · P/N 12339651-1 DOOR,HATCH,VEHICLE Fits: M966, M966A1, M1121	1	100 in stock quote only $8,537.68 per eachgov't list price
3	Hatch Vehicle Door NSN 2510-01-185-3155 · P/N 12339651-2 DOOR,HATCH,VEHICLE Fits: M1025, M1025A1, M1026, M1026A1	1	1 in stock quote only
3	Hatch Vehicle Door NSN 2510-01-456-7889 · P/N 12446907 DOOR,HATCH,VEHICLE BASIC ARMOR Fits: M1025A2	1	We can source it
3	Hatch Vehicle Door NSN 2510-01-476-2171 · P/N 12446911 DOOR,HATCH,VEHICLE SUPPLEMENTAL ARMOR Fits: M1043A2	1	We can source it quote only $5,069.12 per eachgov't list price
3	Hatch Vehicle Door NSN 2510-01-248-9557 · P/N 12339641-2 DOOR,HATCH,VEHICLE SUPPLEMENTAL ARMOR Fits: M1045, M1045A1, M1045A2, M1046, M1046A1	1	We can source it quote only
3	Hatch Door NSN 2510-01-250-7786 · P/N 12339641-1 DOOR,HATCH,VEHICLE SUPPLEMENTAL ARMOR Fits: M1043, M1043A1, M1044, M1044A1	1	We can source it quote only
4	Machine Bolt NSN 5306-00-225-8499 · P/N MS90725-34 BOLT,MACHINE 5/16-18 X 1.00 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	276 in stock
5	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	2,036 in stock
6	Shoulder Headless Pin NSN 5315-00-255-5580 · P/N 10189683 PIN,SHOULDER,HEADLE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	5 in stock
7	Mounting Bracket NSN 5340-01-197-2717 · P/N 10192299 BRACKET,MOUNTING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	We can source it $109.69 per eachgov't list price
8	Straight Headed Pin NSN 5315-00-983-7402 · P/N MS20392-4C69 PIN,STRAIGHT,HEADED Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	95 in stock
9	Cotter Pin NSN 5315-00-234-1861 · P/N MS24665-298 PIN,COTTER Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	593 in stock
10	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	8	354 in stock
11	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	471 in stock
12	Mounting Bracket NSN 5340-01-197-1444 · P/N 10192302 BRACKET,MOUNTING FRONT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	10 in stock $115.04 per eachgov't list price
13	Mounting Launch Tube Plate NSN 2540-01-210-2749 · P/N 5583291 PLATE,MOUNTING,LAUN Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	10 in stock $55–$90 eachtypical
14	Webbing Strap NSN 5340-01-199-1662 · P/N 45053-10 STRAP,WEBBING Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	10 in stock $25–$55 eachtypical
15	Seal NSN 5330-01-197-8298 · P/N ORD-112 SEAL Fits: M966, M1025, M1025A2, M1026, M1043, M1043A2 and 5 more	1	8 in stock $35–$65 eachtypical
16	Structural Vehicul Frame Section NSN 2510-01-189-9741 · P/N 12339612 FRAME SECTION,STRUC Fits: M966, M1025, M1025A2, M1026, M1043, M1043A2 and 5 more	1	34 in stock $650.00our price Buy online ↗
17	Cap Hexagon Head Screw NSN 5305-00-846-5703 · P/N B1821BH038C300N SCREW,CAP,HEXAGON H 3/8-16 X 3.00 Fits: M966, M1025, M1025A1, M1025A2, M1026, M1043 and 6 more	4	185 in stock
18	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M966, M1025, M1025A1, M1025A2, M1026, M1043 and 6 more	8	We can source it
19	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M966, M1025, M1025A1, M1025A2, M1026, M1043 and 6 more	4	219 in stock
20	Vehicular Insulation NSN 2510-01-249-1580 · P/N 12339650 INSULATION PANEL,VE Fits: M966, M1025, M1025A1, M1025A2, M1026, M1121	1	71 in stock $25–$60 eachtypical
21	Sound Door Dampner NSN 2510-01-249-1581 · P/N 12339649-2 DAMPNER,SOUND,DOOR R.H Fits: M966, M1025, M1025A1, M1025A2, M1026, M1121	1	8 in stock $29.18our price Buy online ↗
21	Vehicular Insulation NSN 2510-01-249-1582 · P/N 12339649-1 INSULATION PANEL,VE L.H Fits: M966, M1025, M1025A1, M1025A2, M1026, M1121	1	20 in stock $25–$45 eachtypical
22	Door Cargo Liner NSN 2510-01-249-1583 · P/N 12339625 LINER,DOOR,CARGO Fits: M966, M1025, M1025A1, M1025A2, M1026, M1121	1	3 in stock quote only $95–$155 eachtypical
23	Spring Tension Trim Fastener NSN 5325-01-257-0801 · P/N M36-0790-10 FASTENER,SPRING TEN Fits: M966, M1025, M1025A1, M1025A2, M1026, M1121	12	343 in stock
24	Spring Tension Clip NSN 5340-01-260-4881 · P/N 5591114 CLIP,SPRING TENSION Fits: M966, M1025, M1025A1, M1025A2, M1026, M1121	10	22 in stock
25	Flat Washer NSN 5310-00-014-5850 · P/N MS27183-42 WASHER,FLAT #10 Fits: M966, M1025, M1025A1, M1025A2, M1026, M1121	10	909 in stock
26	Tapping Screw NSN 5305-00-045-7603 · P/N MS24625-42 SCREW,TAPPING Fits: M966, M1025, M1025A1, M1025A2, M1026, M1121	10	90 in stock
27	Bent Metallic Tube NSN 4710-01-251-3076 · P/N 5591115 TUBE,BENT,METALLIC Fits: M966, M1025, M1025A1, M1025A2, M1026, M1121	2	6 in stock $25–$45 eachtypical
28	Flat Washer NSN 5310-01-119-1024 · P/N 2436162 WASHER,FLAT 5/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	471 in stock
29	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	354 in stock
30	Door Lift Parts Kit NSN 2590-01-212-1057 · P/N 12340832-3 PARTS KIT,DOOR LIFT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	2	4 in stock $200.00our price Buy online ↗
30	Door Veh Gas Spring NSN 2590-01-210-6202 · P/N 12340832-4 GAS SPRING,DOOR,VEH Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	2	We can source it $233.64 per eachgov't list price
31	Metallic Tube NSN 4710-01-192-7965 · P/N 5579895 TUBE,METALLIC Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	22 in stock $25–$50 eachtypical
32	Hose Clamp NSN 4730-00-908-3194 · P/N H12SS CLAMP,HOSE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	536 in stock
33	Door Closer P/N 1762CY CLOSER,DOOR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	2	Ask us
33	Gas Spring P/N 1759CW SPRING,GAS,VEHICULA Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	2	Ask us
34	Sleeve Bushing Half NSN 3120-01-200-4105 · P/N 12339602 BUSHING HALF,SLEEVE Fits: M966, M1025, M1025A1, M1025A2, M1026, M1043 and 6 more	2	69 in stock
35	Retaining Ring NSN 5325-01-135-4290 · P/N 012351 RING,RETAINING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	96 in stock
36	Metallic Tube NSN 4710-01-192-9546 · P/N 5579894 TUBE,METALLIC Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	45 in stock $35–$70 eachtypical
37	Door Closer P/N 1761CC CLOSER,DOOR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 2 more	1	Ask us
37	Door Closer P/N 1758CA CLOSER,DOOR Fits: M1043, M1043A1, M1043A2, M1044, M1044A1, M1045 and 4 more	1	Ask us
38	Ball Stud NSN 5307-01-140-6594 · P/N 393835 STUD,BALL Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
39	Webbing Strap NSN 5340-01-197-6753 · P/N 44884 STRAP,WEBBING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	73 in stock
40	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	621 in stock
