HMMWV Cargo Shell Door Assembly, Basic and Supplemental Armor TM 9-2320-280-24P · Fig. 269

Every part in figure 269 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 41 lines, 34 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

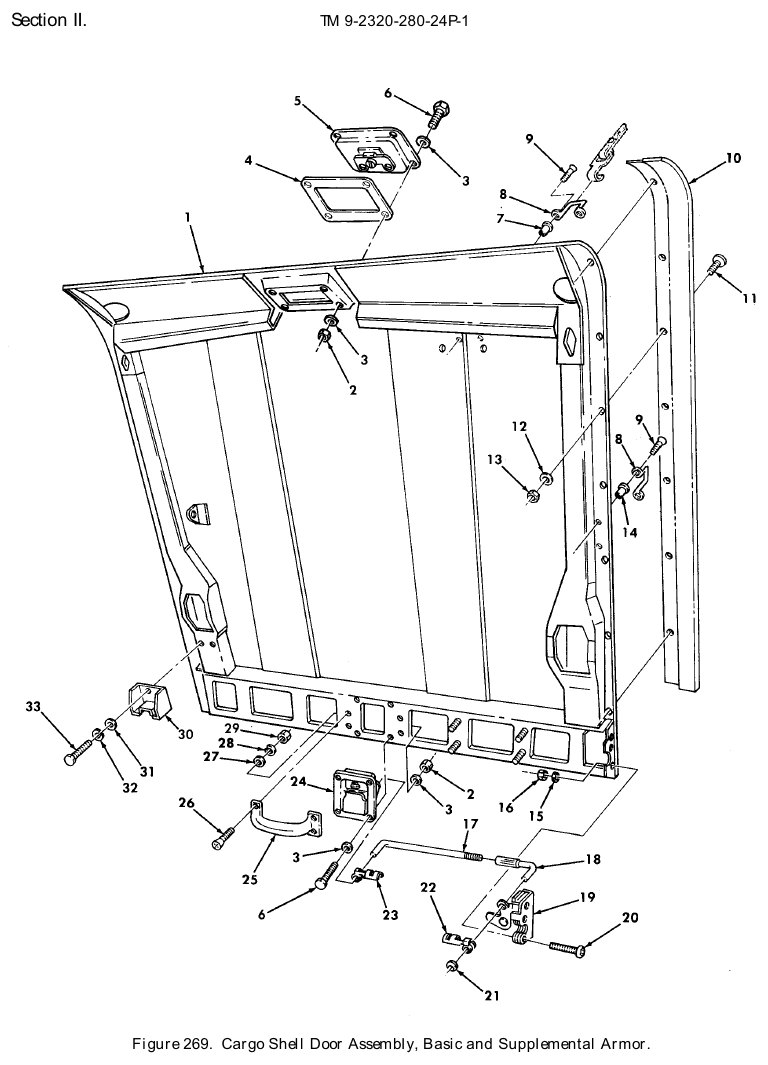

TM 9-2320-280-24P figure 269, Cargo Shell Door Assembly, Basic and Supplemental Armor: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Door Assembly P/N 5574377 DOOR ASSEMBLY Fits: M966, M966A1, M1121	1	Ask us
1	Door Assembly P/N 5584358 DOOR ASSEMBLY Fits: M1025, M1025A1, M1026, M1026A1	1	Ask us
1	Door Assembly P/N 5595228 DOOR ASSEMBLY Fits: M1045, M1045A1, M1045A2, M1046, M1046A1	1	Ask us
1	Door Assembly P/N 12446912 DOOR ASSEMBLY Fits: M1043A2	1	Ask us
1	Door Assembly P/N 12446908 DOOR ASSEMBLY Fits: M1025A2	1	Ask us
1	Door Assembly P/N 5595227 DOOR ASSEMBLY Fits: M1043, M1043A1, M1044, M1044A1	1	Ask us
2	Plain Hexagon Nut NSN 5310-00-934-9758 · P/N MS35649-202 NUT,PLAIN,HEXAGON Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	952 in stock
3	Flat Washer NSN 5310-01-234-9416 · P/N MS51412-2 WASHER,FLAT #10 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	16	We can source it
4	Gasket NSN 5330-01-458-3810 · P/N 12341348 GASKET Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	30 in stock
5	Flush Catch NSN 5340-01-197-1238 · P/N 1-5073-U CATCH,FLUSH Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	7 in stock $65–$110 eachtypical
6	Cap Hexagon Head Screw NSN 5305-01-185-8674 · P/N 9421294 SCREW,CAP,HEXAGON H #10-24 X 1/2 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	301 in stock
7	Screw Thread Insert NSN 5325-01-411-0066 · P/N ALS4-1024-130 INSERT,SCREW THREAD Fits: M1043A2	40	1,125 in stock
7	Screw Thread Insert NSN 5325-01-411-0066 · P/N ALS4-1024-130 INSERT,SCREW THREAD Fits: M1025A2	38	1,125 in stock
8	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411B LOOP,STRAP FASTENER Fits: M1025A2, M1043A2	20	621 in stock
9	Machine Screw NSN 5305-01-410-8386 · P/N 156966 SCREW,MACHINE Fits: M1025A2, M1043A2	40	2,096 in stock
10	Deflector Missile Shield NSN 2540-01-192-4504 · P/N 12339646-1 SHIELD,DEFLECTOR,MI L.H Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	22 in stock quote only $180.77 per eachgov't list price
10	Deflector Blast Shield NSN 2540-01-192-9721 · P/N 12339646-2 SHIELD,DEFLECTOR,BL R.H Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	21 in stock quote only $239.56 per eachgov't list price
11	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X .75 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	26	471 in stock
12	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	26	351 in stock
13	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	26	626 in stock
14	Screw Thread Insert NSN 5325-01-475-9697 · P/N ALS4-1024-225 INSERT,SCREW THREAD Fits: M1025A2	2	300 in stock
15	Lock Washer NSN 5310-00-407-9566 · P/N MS35338-45 WASHER,LOCK 5/16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	12	2,036 in stock
16	Self-Locking Hexagon Nut NSN 5310-00-814-0673 · P/N MS51943-33 NUT,SELF-LOCKING,HE 5/16-18 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	12	354 in stock
17	Hook Bolt NSN 5306-01-195-0277 · P/N 5583141 BOLT,HOOK Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	63 in stock $25–$40 eachtypical
18	Threaded Rod End NSN 5340-01-197-2736 · P/N 16386(75) ROD END,THREADED Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	660 in stock $30–$65 eachtypical
19	Door Latch NSN 5340-01-199-6103 · P/N 3-400-R LATCH,DOOR R.H.FRONT,LEFT REAR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	181 in stock $35–$75 eachtypical
19	Mounting Plate NSN 5340-01-198-5455 · P/N 3-400-L (25) PLATE,MOUNTING LATCH,DOOR L.H FRONT & R.H. REAR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	42 in stock $25–$50 eachtypical
20	Cap Hexagon Head Screw NSN 5305-00-226-4831 · P/N B1821BH031C150N SCREW,CAP,HEXAGON H 5/16-18 X 1.50 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	12	221 in stock
21	Push on Nut NSN 5310-01-213-1333 · P/N C183-012-4 PUSH ON NUT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	168 in stock
22	Retaining Clip NSN 5340-01-195-8837 · P/N HS49745 CLIP,RETAINING R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	72 in stock
23	Rod Retainer Clip NSN 5340-01-196-8158 · P/N HS49746 CLIP-CLEVIS,ROD RET L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	53 in stock
24	Flush Catch NSN 5340-01-259-8600 · P/N 34-4974-51X CATCH,FLUSH Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	33 in stock $75–$125 eachtypical
25	Bow Handle NSN 5340-01-197-8239 · P/N U-6236 HANDLE,BOW FRONT Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	41 in stock $25–$40 eachtypical
26	Machine Screw NSN 5305-01-254-2453 · P/N 5592861 SCREW,MACHINE #12-24 X 3/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	124 in stock
27	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	351 in stock
28	Lock Washer NSN 5310-00-285-7037 · P/N MS122031 WASHER,LOCK #12 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	136 in stock
29	Plain Hexagon Nut NSN 5310-00-012-1743 · P/N 121743 NUT,PLAIN,HEXAGON #12-24 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	136 in stock
30	Dovetoil Bracket NSN 5342-01-194-5806 · P/N 12339579 BRACKET,DOVETOIL Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	80 in stock $90–$150 eachtypical
31	Flat Washer NSN 5310-00-809-4058 · P/N MS27183-10 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	2,325 in stock
32	Lock Washer NSN 5310-00-550-1130 · P/N MS35333-40 WASHER,LOCK 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	2,548 in stock $6.85our price Buy online ↗
33	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	248 in stock
