HMMWV Cargo Shell Mounting Components TM 9-2320-280-24P · Fig. 270

Every part in figure 270 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 1812 Special Purpose Bodies: 45 lines, 41 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

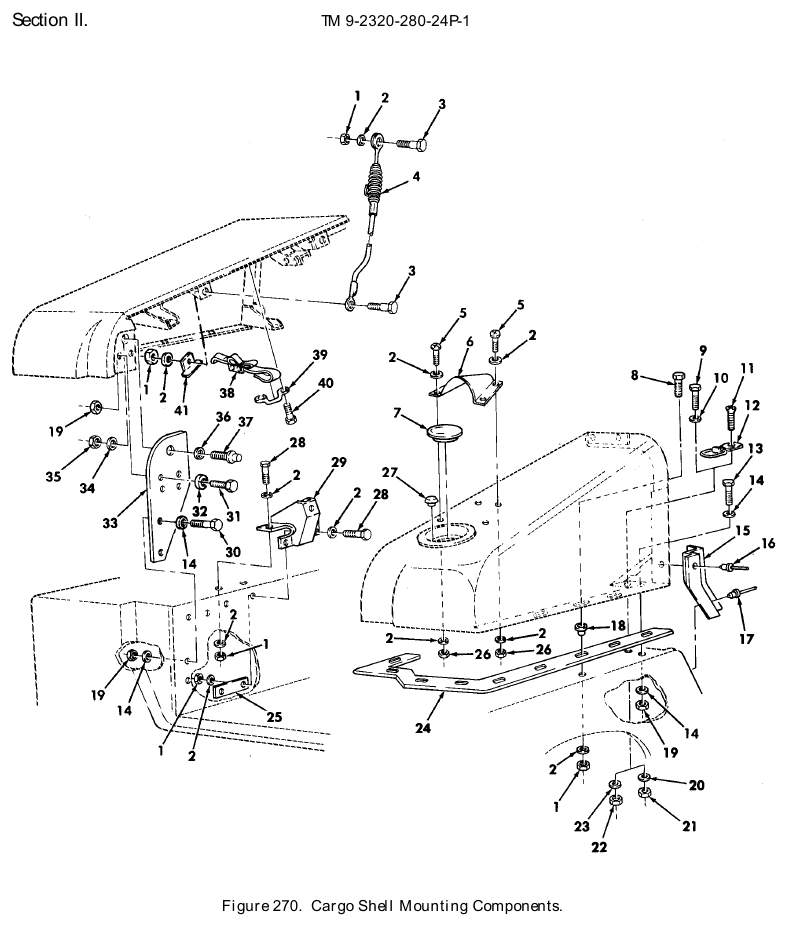

TM 9-2320-280-24P figure 270, Cargo Shell Mounting Components: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	30	626 in stock
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 10 more	46	351 in stock
2	Flat Washer NSN 5310-01-102-3270 · P/N 2436161 WASHER,FLAT 1/4 Fits: M1044, M1044A1	28	351 in stock
3	Shoulder Bolt NSN 5306-01-199-1314 · P/N 12340001-2 BOLT,SHOULDER 1/4-20 X .75 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	40 in stock
4	Single Leg Wire Rope Assembly NSN 4010-01-203-0412 · P/N 10812 WIRE ROPE ASSEMBLY, Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	629 in stock $30–$60 per assemblytypical
5	Cap Hexagon Head Screw NSN 5305-00-068-0502 · P/N MS90725-6 SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	4	471 in stock
6	Blast Vehicular Shield NSN 2590-01-188-7394 · P/N 12339642 SHIELD,BLAST,VEHICU Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	1	8 in stock $48.99our price Buy online ↗
7	Protective Dust and Moistur Plug NSN 5340-01-194-0887 · P/N BPF-3-1/2 PLUG,PROTECTIVE,DUS Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	19 in stock
8	Cap Hexagon Head Screw NSN 5305-00-068-0509 · P/N B1821BH025C125N SCREW,CAP,HEXAGON H 1/4-20 X 1.25 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	18	298 in stock
9	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	1,373 in stock
10	Flat Washer NSN 5310-01-472-7368 · P/N 12340880 WASHER,FLAT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	20 in stock
11	Cap Socket Head Screw NSN 5305-00-052-2232 · P/N MS24667-77 SCREW,CAP,SOCKET HE Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	200 in stock
12	Cargo Vehicle Tie Down NSN 3990-01-314-8393 · P/N 12342077 TIE DOWN,CARGO,VEHI Fits: M1025, M1025A1, M1026, M1026A1, M1043, M1043A1 and 2 more	2	1 in stock
12	Cargo Vehicle Tie Down NSN 3990-01-432-5370 · P/N 12446987 TIE DOWN,CARGO,VEHI Fits: M1025A2, M1043A2	2	15 in stock $25–$40 eachtypical
13	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	1,373 in stock
14	Flat Washer NSN 5310-00-087-7493 · P/N MS27183-13 WASHER,FLAT 3/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	24	We can source it
15	Filler Door Seal Panel NSN 2540-01-192-8283 · P/N 5584152 PANEL,FILLER DOOR S R.H.,REAR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	5 in stock
15	Cab Panel NSN 2510-01-192-5950 · P/N 5584151 PANEL,CAB L.H.,REAR Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	28 in stock
16	Blind Rivet NSN 5320-00-899-0981 · P/N AD42BS RIVET,BLIND 1/8 DIA Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	108 in stock
17	Blind Rivet NSN 5320-00-083-5009 · P/N M24243/1-A403 RIVET,BLIND 1/8 DIA Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	641 in stock
18	Sleeve Spacer NSN 5365-01-194-5093 · P/N 5583156 SPACER,SLEEVE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	18	80 in stock
19	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE 3/8-16 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	17	219 in stock
20	Flat Washer NSN 5310-01-412-4013 · P/N 2436163 WASHER,FLAT Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	6 in stock
21	Self-Locking Hexagon Nut NSN 5310-00-935-9021 · P/N MS51943-35 NUT,SELF-LOCKING,HE Fits: M966, M966A1, M1045, M1045A1, M1045A2, M1046 and 2 more	2	219 in stock
22	Self-Locking Hexagon Nut NSN 5310-00-488-3889 · P/N MS51943-39 NUT,SELF-LOCKING,HE Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	1,713 in stock
23	Flat Washer NSN 5310-01-396-8392 · P/N NAS1149F0863P WASHER,FLAT 1/2 Fits: M1025, M1025A1, M1025A2, M1026, M1026A1, M1043 and 4 more	2	60 in stock
24	Nonmetallic Strip Seal NSN 5330-01-195-9049 · P/N 5593930 SEAL,NONMETALLIC ST L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	11 in stock $75.00our price Buy online ↗
25	Mending Plate NSN 5340-01-197-2642 · P/N 12339605 PLATE,MENDING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	20 in stock
26	Self-Locking Hexagon Nut NSN 5310-00-061-4650 · P/N MS51943-31 NUT,SELF-LOCKING,HE 1/4-20 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	626 in stock
27	Protective Dust and Moistur Plug NSN 5340-01-194-0888 · P/N BPF-3/8-3 PLUG,PROTECTIVE,DUS Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	40 in stock
28	Cap Hexagon Head Screw NSN 5305-00-068-0508 · P/N B1821BH025C075N SCREW,CAP,HEXAGON H 1/4-20 X 3/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	248 in stock
29	Mounting Bracket NSN 5340-01-197-2716 · P/N 5584138 BRACKET,MOUNTING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	567 in stock $30.00our price Buy online ↗
30	Cap Hexagon Head Screw NSN 5305-00-725-2317 · P/N B1821BH038C150N SCREW,CAP,HEXAGON H 3/8-16 X 1.50 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	10	1,373 in stock
31	Machine Bolt NSN 5306-01-387-7457 · P/N 5593200 BOLT,MACHINE 3/8-16 X 1.25 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
32	Flat Washer NSN 5310-01-205-7923 · P/N 5593213 WASHER,FLAT 3/8 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
33	Strike Plate NSN 2540-01-252-8460 · P/N 12339610-1 PLATE,STRIKE L.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	23 in stock $70–$120 eachtypical
33	Striker Mounting Plate NSN 2540-01-252-3386 · P/N 12339610-2 PLATE,STRIKER,MOUNT R.H Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	1	30 in stock $104.82 per eachgov't list price
34	Flat Washer NSN 5310-01-260-4839 · P/N 5593312 WASHER,FLAT 3/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	We can source it
35	Self-Locking Hexagon Nut NSN 5310-00-409-3333 · P/N MS51943-45 NUT,SELF-LOCKING,HE 3/4-10 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	5,754 in stock
36	Flat Washer NSN 5310-01-197-1100 · P/N 12339599 WASHER,FLAT 25/32 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	69 in stock
37	Friction Catch Stud NSN 5340-01-440-1435 · P/N 5596198 STUD,FRICTION CATCH Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	46 in stock
38	Webbing Strap NSN 5340-01-203-5634 · P/N 44647-10 STRAP,WEBBING Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	2 in stock $25–$45 eachtypical
39	Strap Fastener Loop NSN 5340-00-489-5684 · P/N 6411-B LOOP,STRAP FASTENER Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	4	621 in stock
40	Assembled Washer Screw NSN 5305-01-254-2459 · P/N 5593313 SCREW,ASSEMBLED WAS #10-32 X 3/4 Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	8	12 in stock
41	Angle Bracket NSN 5340-01-460-5002 · P/N 12339601 BRACKET,ANGLE Fits: M966, M966A1, M1025, M1025A1, M1025A2, M1026 and 12 more	2	20 in stock

Buy the 3 in-stock parts on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
