HMMWV Radiator Shroud and Related Parts TM 9-2320-280-24P · Fig. 28

Every part in figure 28 of TM 9-2320-280-24P (HMMWV M998 series (A0, A1 and A2) repair parts), group 0502 Cowling, Deflector, Air Ducts, Shrouds: 11 lines, 11 on our own shelf in Augusta, GA. The rest we source — select what you need and send one quote request, answered within one business day.

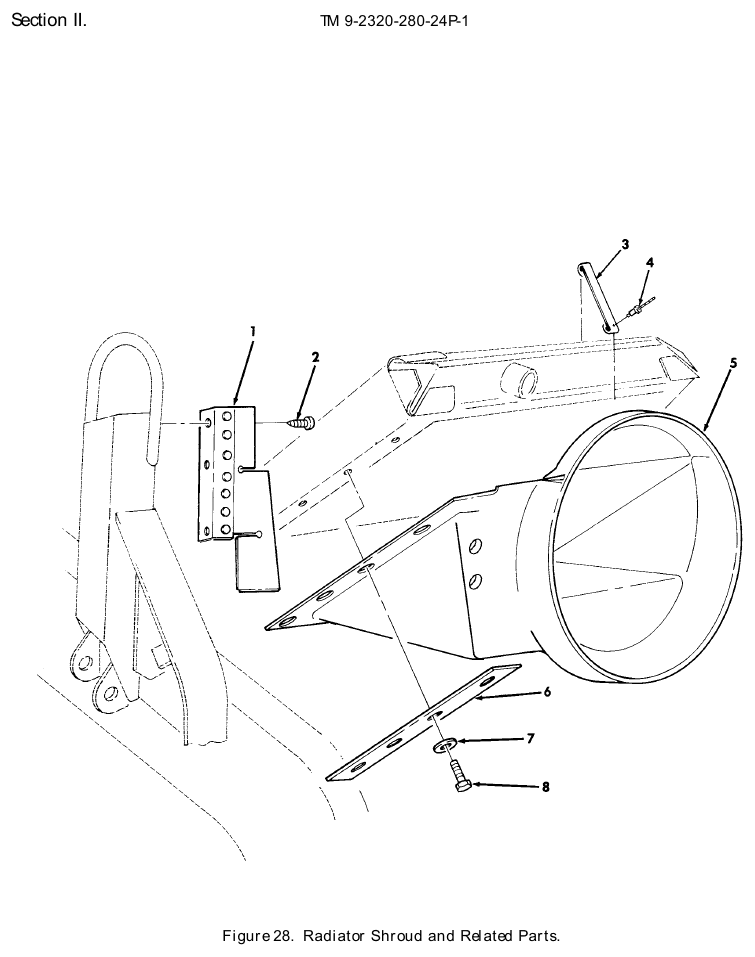

TM 9-2320-280-24P figure 28, Radiator Shroud and Related Parts: exploded drawing with item numbers

Drawing from TM 9-2320-280-24P, approved for public release. Open it full size to zoom.

Your truck

Item	Part	Qty	On our shelf
1	Shroud Air Lift Shield Assembly NSN 2510-01-210-6939 · P/N 12339166-1 SHIELD ASSEMBLY,SHR L.H Fits: All models	1	101 in stock $30–$70 per assemblytypical
1	Shroud Shield Assembly NSN 2990-01-210-4276 · P/N 12339166-2 SHIELD ASSEMBLY,SHR R.H Fits: All models	1	227 in stock $25–$55 per assemblytypical
2	Tapping Screw NSN 5305-00-052-6921 · P/N MS24629-57 SCREW,TAPPING 1/4-20 X 1/2 Fits: All models	6	173 in stock
3	Retaining Strap NSN 5340-01-251-0724 · P/N 12339154-1 STRAP,RETAINING RADIATOR Fits: All models	1	1 in stock
4	Blind Rivet NSN 5320-01-023-2529 · P/N M24243/1A404 RIVET,BLIND 1/8 DIA..126-.187 GRIP Fits: All models	1	132 in stock
5	Fan Radiator Shroud NSN 2930-01-317-5358 · P/N 5935356 SHROUD,FAN,RADIATOR Fits: All A0 and A1 models, plus M1121	1	16 in stock $525.13 per eachgov't list price
5	Fan Shroud NSN 2930-01-471-0622 · P/N 12342435-1 SHROUD,FAN,RADIATOR Fits: All A2 models, plus M1123	1	1 in stock
6	Retaining Strap NSN 5340-01-212-3709 · P/N 5591252 STRAP,RETAINING Fits: All models	2	345 in stock $19.99our price Buy online ↗
7	Lock Washer NSN 5310-00-582-5965 · P/N MS35338-44 WASHER,LOCK 1/4 Fits: All models	8	4,285 in stock
8	Cap Hexagon Head Screw NSN 5305-00-071-2506 · P/N B1821BH025C050N SCREW,CAP,HEXAGON H 1/4-20 X 1/2 Fits: All A0 and A1 models, plus M1121	8	300 in stock
8	Cap Hexagon Head Screw NSN 5305-00-068-7837 · P/N B1821BH025C063N SCREW,CAP,HEXAGON H 1/4-20 X 5/8 Fits: All A2 models, plus M1123	8	98 in stock

Buy the 1 in-stock part on our store ↗

Qty is how many the assembly uses, as the manual lists it. Our price is our online store's price: Buy online opens that part on secoparts.net for card checkout. Typical is an estimate from the government catalog price and what we have charged for similar parts — not a quote. Gov't list price is the government catalog (FEDLOG) price, a public reference, not ours. "Fits" comes from the manual's usable-on codes; a line without codes applies to every model.
